Name: NOYAFA NF-8506 Cat5 / Cat5e / Cat6 / Cat6a Ethernet Cable Tracer & Tester with PoE / PING / Switch Testing, IP Scan, Port Flash, Cable Length Testing
Brand: NOYAFA 2.0
SKU: NF-8506
Price: 119.99 USD
Availability: InStock

NOYAFA NF-8506 Cat5 / Cat5e / Cat6 / Cat6a Ethernet Cable Tracer & Tester with PoE / PING / Switch Testing, IP Scan, Port Flash, Cable Length Testing

NF-8506 Product Display Receiver Details

$119.99 USD

Shipping calculated at checkout.

Models

NF-8506

2 Units × $96 Only!

NF-8506 + NF-TC1 Toolless RJ45 Connector *2

NF-TC1 NF-TC1 Toolless RJ45 Connector *10

NF-981 OTDR Tester

NF-IPC715 CCTV Tester

Compare the NF-8506 vs NF-981 vs NF-IPC715

Beware of low-priced refurbished devices. Buy official.

30-Days Money Back Guarantee

In stock, Fast Free Shipping

Quantity

Buy more and save more

BUY OVER $300 USD for 10% OFF: Copy code BF300TEN
BUY OVER $600 USD for 15% OFF: Copy code BF600ELV
BUY OVER $1,000 USD for 20% OFF: Copy code BF1KTEW

Features & Benefits:

Cable Tracking: Easily track shielded and unshielded network cables for engineering, data center maintenance, and equipment upgrades. It offers standard and interference-resistant line tracking methods.
Wire Mapping: Quickly identify CAT5/CAT6 and validate cable wiring sequences, enabling the detection and resolution of issues like open/short circuits and crossings.
Length Test: Automatic cable length detection simplifies accurate cable length measurement, ranging from 8.2ft/2.5m to 656ft/200m.
Port Flashing: Easily identify connected ports on switches or routers with flashing indicator lights. It provides additional information on port operating rates and duplex modes.
PoE Testing: Efficiently detect PoE devices, including non-standard and IEEE 802.3AF/IEEE 802.3AT standards, ensuring comprehensive PoE detection.
PING Testing: Assess network speed issues rapidly by conducting PING tests from multiple locations to gauge server and website response speeds.
Non-Contact Voltage Tester Pen: Enhance safety during electrical work by identifying live equipment and detecting live wires and sockets, preventing potential hazards.
High-intensity LED Lighting: Built-in LED lighting with an electroplated spotlight reflector improves visibility in dark or low-light environments.
Long-lasting Battery Life: Powered by a 3.7V 1,500mAh polymer lithium battery, it ensures extended usage periods, with convenient Type-C charging for easy recharging.

Model: NF-8506

Cable Scan: Digital Mode/Analog Mode
Auto OFF: ✓
Low Power Notice: ✓

Transmitter

Cable Continuity Test: Remote & Switch
Cable Length Test Range: 5-200m (±3m)
Port Flash: 10M/100M/1000M
POE: Mid-Span/End-Spar/AT-4 pairs; POE voltage test
Link Speed: 10M/100M/1000M; Duplex Mode (Full Duplex/ Half Duplex)
Battery: 3.7V Lithium Battery
Ping Scan Function: ✓
IP Scan Function: ✓
Transmitter Dimension: 150x75x35mm

Receiver

Led Light: ✓
Ear Phone: ✓
Battery: 3.7V Lithium Battery
Receiver Dimension: 200X50X33mm

NOYAFA NF-8506 Product Instruction

[{"id":50138529562899,"title":"NF-8506","option1":"NF-8506","option2":null,"option3":null,"sku":"NF-8506","requires_shipping":true,"taxable":false,"featured_image":{"id":49186692890899,"product_id":9007515107603,"position":1,"created_at":"2025-04-07T20:08:40-07:00","updated_at":"2025-04-24T00:59:52-07:00","alt":null,"width":750,"height":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/NOYAFA_NF-8506_Cat5_Cat5e_Cat6_Cat6a_Ethernet_Cable_Tracer_Tester_-_official_fdbe24ff-cbea-4663-8bf2-7bde5d3b3780.jpg?v=1745481592","variant_ids":[50138529562899]},"available":true,"name":"NOYAFA NF-8506 Cat5 \/ Cat5e \/ Cat6 \/ Cat6a Ethernet Cable Tracer \u0026 Tester with PoE \/ PING \/ Switch Testing, IP Scan, Port Flash, Cable Length Testing - NF-8506","public_title":"NF-8506","options":["NF-8506"],"price":11999,"weight":400,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":40973478461715,"position":1,"preview_image":{"aspect_ratio":0.75,"height":1000,"width":750,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/NOYAFA_NF-8506_Cat5_Cat5e_Cat6_Cat6a_Ethernet_Cable_Tracer_Tester_-_official_fdbe24ff-cbea-4663-8bf2-7bde5d3b3780.jpg?v=1745481592"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":51581473325331,"title":"2 Units × $96 Only!","option1":"2 Units × $96 Only!","option2":null,"option3":null,"sku":"NF-8506 2PCS","requires_shipping":true,"taxable":false,"featured_image":{"id":49766151520531,"product_id":9007515107603,"position":10,"created_at":"2025-05-07T19:55:36-07:00","updated_at":"2025-05-07T19:55:37-07:00","alt":null,"width":750,"height":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/Noyafa_NF-8506_2pcs_discount.jpg?v=1746672937","variant_ids":[51581473325331]},"available":true,"name":"NOYAFA NF-8506 Cat5 \/ Cat5e \/ Cat6 \/ Cat6a Ethernet Cable Tracer \u0026 Tester with PoE \/ PING \/ Switch Testing, IP Scan, Port Flash, Cable Length Testing - 2 Units × $96 Only!","public_title":"2 Units × $96 Only!","options":["2 Units × $96 Only!"],"price":19383,"weight":400,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":41367054188819,"position":11,"preview_image":{"aspect_ratio":0.75,"height":1000,"width":750,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/Noyafa_NF-8506_2pcs_discount.jpg?v=1746672937"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":51302722076947,"title":"NF-8506 + NF-TC1 Toolless RJ45 Connector *2","option1":"NF-8506 + NF-TC1 Toolless RJ45 Connector *2","option2":null,"option3":null,"sku":"NF-8506 + NF-TC1 *2","requires_shipping":true,"taxable":false,"featured_image":{"id":49273973670163,"product_id":9007515107603,"position":8,"created_at":"2025-04-16T23:35:13-07:00","updated_at":"2025-04-16T23:35:14-07:00","alt":null,"width":750,"height":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/Noyafa_NF-8506_plus_2_toolless_rj45_connectors.jpg?v=1744871714","variant_ids":[51302722076947]},"available":true,"name":"NOYAFA NF-8506 Cat5 \/ Cat5e \/ Cat6 \/ Cat6a Ethernet Cable Tracer \u0026 Tester with PoE \/ PING \/ Switch Testing, IP Scan, Port Flash, Cable Length Testing - NF-8506 + NF-TC1 Toolless RJ45 Connector *2","public_title":"NF-8506 + NF-TC1 Toolless RJ45 Connector *2","options":["NF-8506 + NF-TC1 Toolless RJ45 Connector *2"],"price":7955,"weight":400,"compare_at_price":12199,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":41031429161235,"position":9,"preview_image":{"aspect_ratio":0.75,"height":1000,"width":750,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/Noyafa_NF-8506_plus_2_toolless_rj45_connectors.jpg?v=1744871714"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":50138529628435,"title":"NF-TC1 NF-TC1 Toolless RJ45 Connector *10","option1":"NF-TC1 NF-TC1 Toolless RJ45 Connector *10","option2":null,"option3":null,"sku":"NF-TC1 *10","requires_shipping":true,"taxable":false,"featured_image":{"id":49129427992851,"product_id":9007515107603,"position":9,"created_at":"2025-04-02T00:20:43-07:00","updated_at":"2025-04-24T00:59:52-07:00","alt":null,"width":750,"height":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/10_toolless_rj45_connectors.jpg?v=1745481592","variant_ids":[50138529628435]},"available":true,"name":"NOYAFA NF-8506 Cat5 \/ Cat5e \/ Cat6 \/ Cat6a Ethernet Cable Tracer \u0026 Tester with PoE \/ PING \/ Switch Testing, IP Scan, Port Flash, Cable Length Testing - NF-TC1 NF-TC1 Toolless RJ45 Connector *10","public_title":"NF-TC1 NF-TC1 Toolless RJ45 Connector *10","options":["NF-TC1 NF-TC1 Toolless RJ45 Connector *10"],"price":3240,"weight":400,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":40936731541779,"position":10,"preview_image":{"aspect_ratio":0.75,"height":1000,"width":750,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/10_toolless_rj45_connectors.jpg?v=1745481592"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":50305746600211,"title":"NF-981 OTDR Tester","option1":"NF-981 OTDR Tester","option2":null,"option3":null,"sku":"NF-981","requires_shipping":true,"taxable":false,"featured_image":{"id":49129722675475,"product_id":9007515107603,"position":11,"created_at":"2025-04-02T01:03:37-07:00","updated_at":"2025-04-24T00:59:52-07:00","alt":null,"width":750,"height":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/NOYAFA_NF-981_OTDR_Fiber_Tester_-_official.jpg?v=1745481592","variant_ids":[50305746600211]},"available":true,"name":"NOYAFA NF-8506 Cat5 \/ Cat5e \/ Cat6 \/ Cat6a Ethernet Cable Tracer \u0026 Tester with PoE \/ PING \/ Switch Testing, IP Scan, Port Flash, Cable Length Testing - NF-981 OTDR Tester","public_title":"NF-981 OTDR Tester","options":["NF-981 OTDR Tester"],"price":21311,"weight":400,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":40936954102035,"position":12,"preview_image":{"aspect_ratio":0.75,"height":1000,"width":750,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/NOYAFA_NF-981_OTDR_Fiber_Tester_-_official.jpg?v=1745481592"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":51762405081363,"title":"NF-IPC715 CCTV Tester","option1":"NF-IPC715 CCTV Tester","option2":null,"option3":null,"sku":"NF-IPC715","requires_shipping":true,"taxable":false,"featured_image":{"id":49121765359891,"product_id":9007515107603,"position":12,"created_at":"2025-04-01T01:01:41-07:00","updated_at":"2025-04-02T02:06:59-07:00","alt":null,"width":750,"height":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/Noyafa_NF-IPC715_CCTV_tester_-_official.jpg?v=1743584819","variant_ids":[51762405081363]},"available":true,"name":"NOYAFA NF-8506 Cat5 \/ Cat5e \/ Cat6 \/ Cat6a Ethernet Cable Tracer \u0026 Tester with PoE \/ PING \/ Switch Testing, IP Scan, Port Flash, Cable Length Testing - NF-IPC715 CCTV Tester","public_title":"NF-IPC715 CCTV Tester","options":["NF-IPC715 CCTV Tester"],"price":22000,"weight":400,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":40931264430355,"position":13,"preview_image":{"aspect_ratio":0.75,"height":1000,"width":750,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/Noyafa_NF-IPC715_CCTV_tester_-_official.jpg?v=1743584819"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

NOYAFA

18 Years in Cable Testing and Tracing R&D and Manufacturing.

Our Story

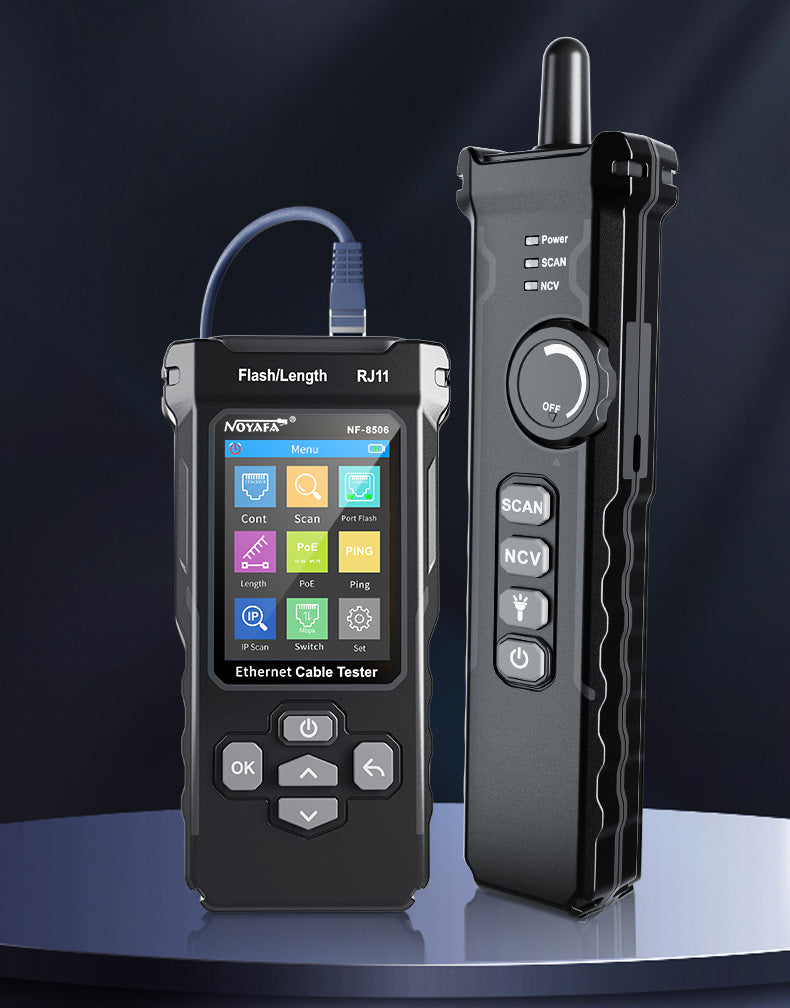

NOYAFA NF-8506

Multifunctional Cable Tester

Continuity Test
Cable Length
Ping Scan
PoE Check
Cable Tracing
Port Flash
NCV

All in one compact model.

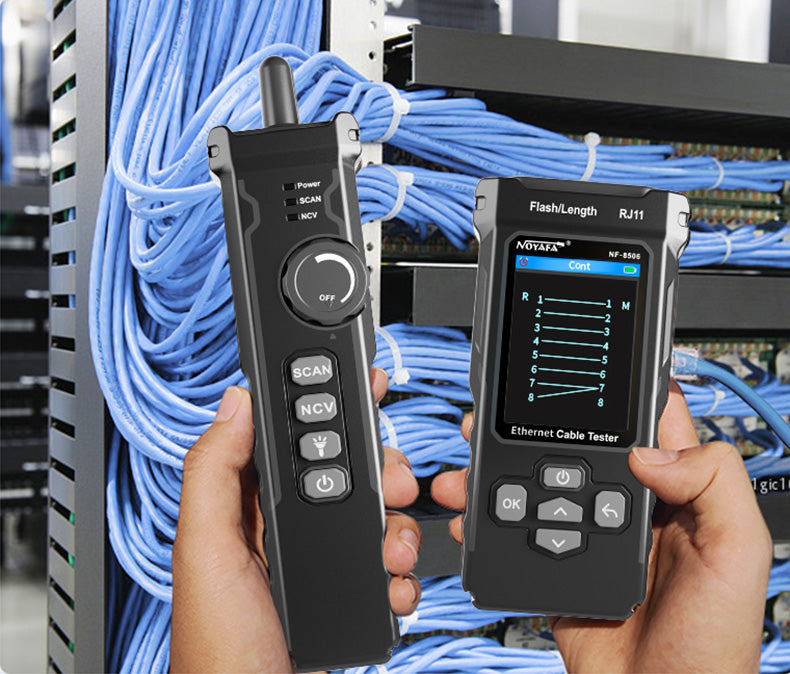

Continuity Test

Quickly test network cable status. Find out and locate the faults like short circuit, cross, or broken.

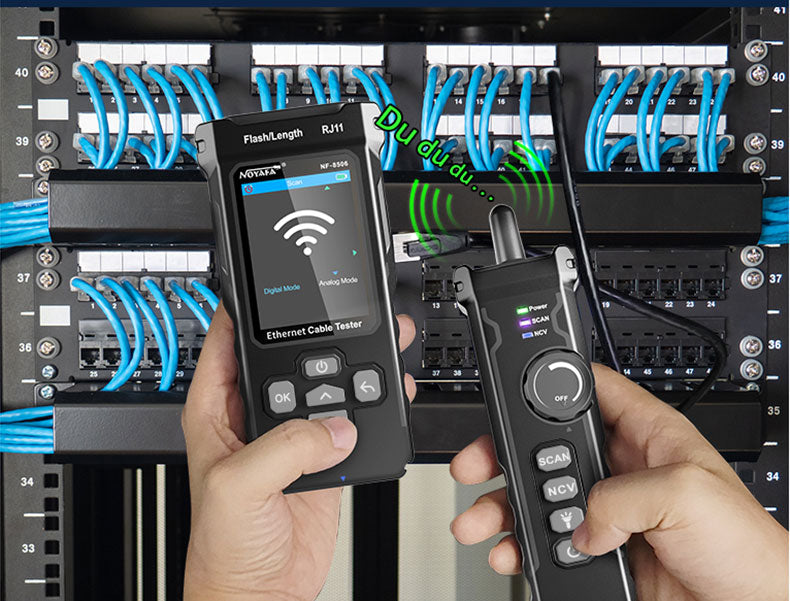

High-sensitive Dual Mode Hunting

Scan cables via both Analog and digital singal. Quickly locate the target cable in seconds.

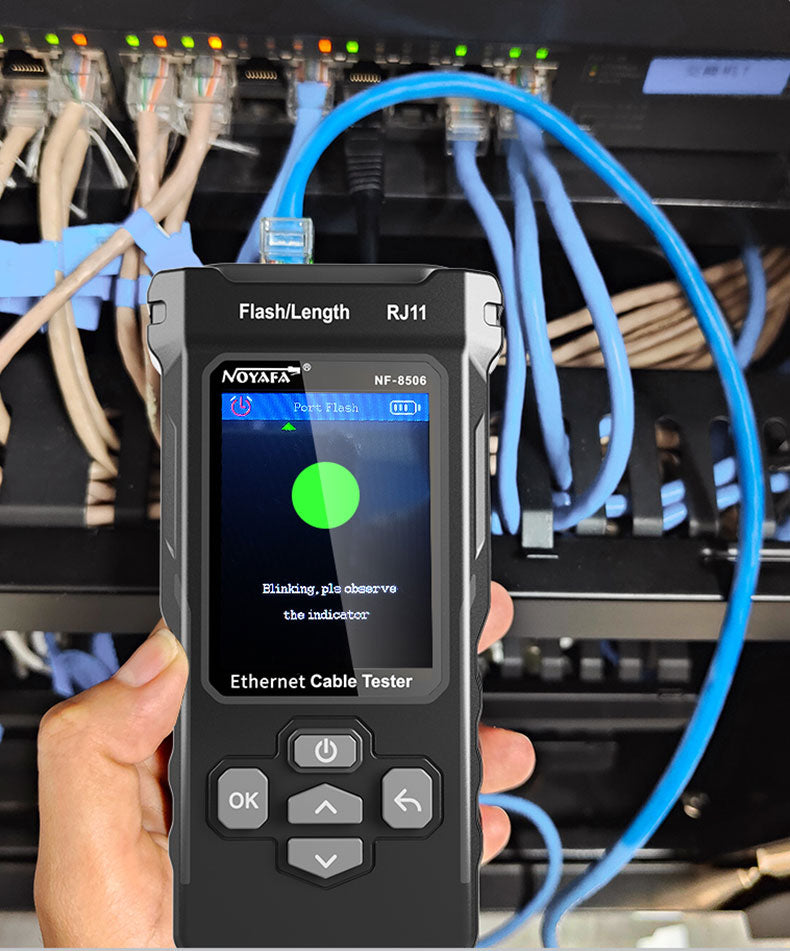

Port Flash

Connect an end of a cable to the device and launch Port Flash function. Tell which port this cable is connected to by the flashing LED light.

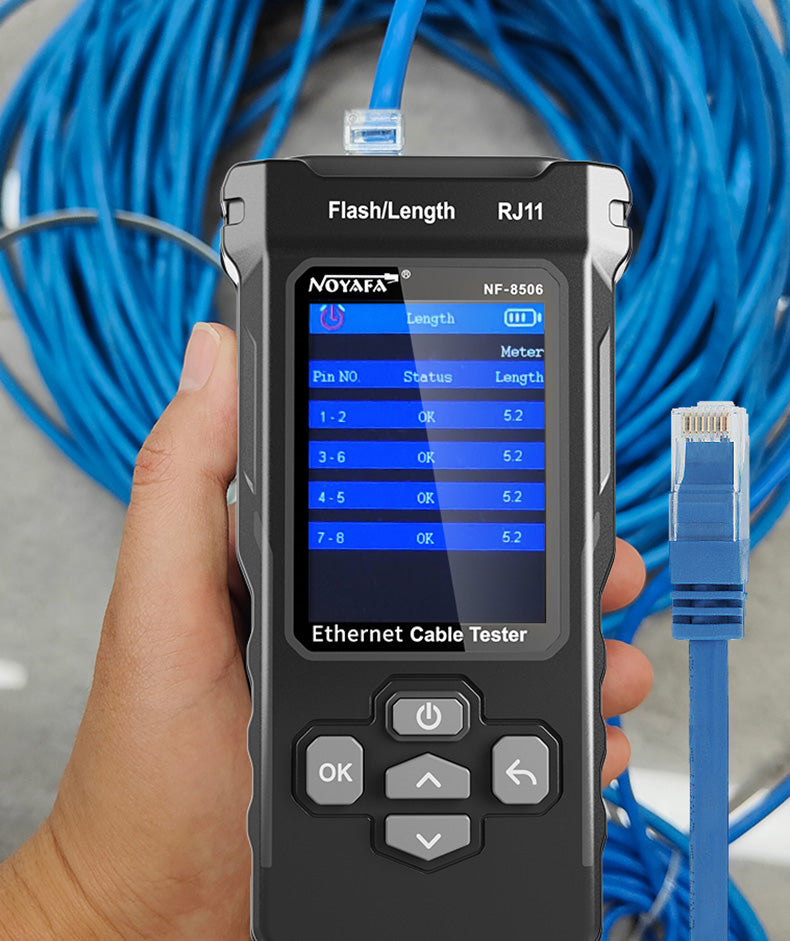

Length Measurement

Insert one end of a network cable into the Flash/Length Port of the device. Press Start to measure the length of the cable.

Range: 2.5m - 200m ( 8 - 656 feet)

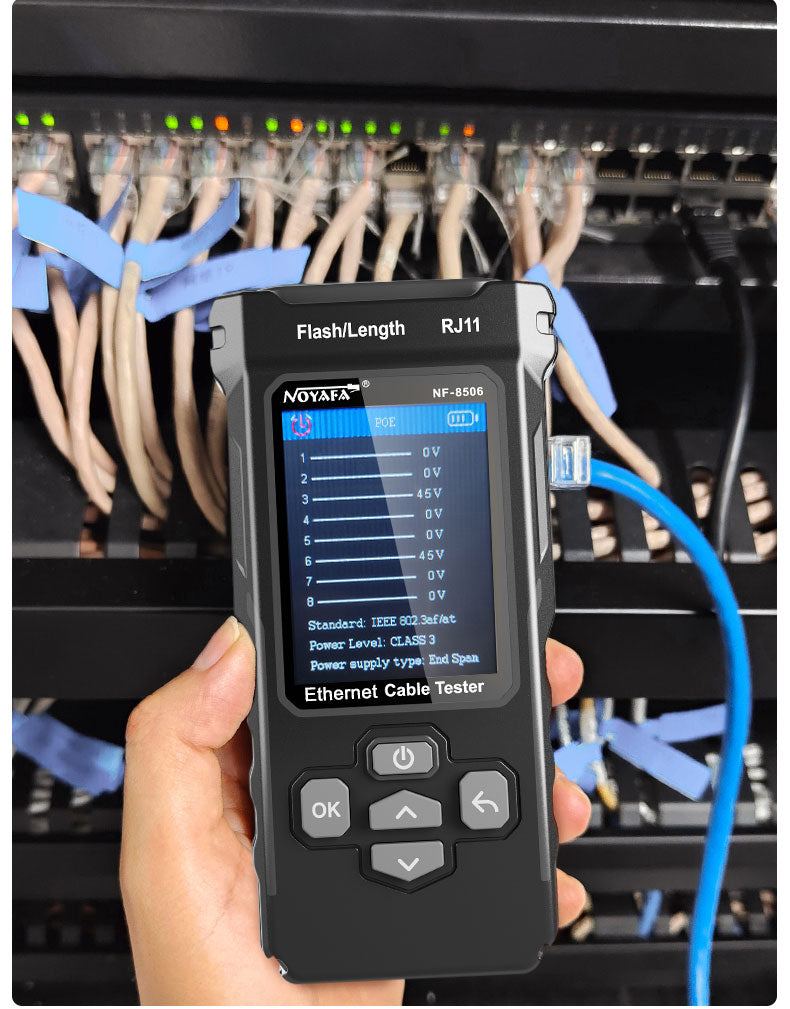

PoE Test

Test the standard PoE: Mid span/End span / AT (4 Pairs)

Power Level: Power Voltage and Class

Power Supply Type: Non-standard/IEEE 802.3AF /IEEE 802.3AT/BT

Quick Network Speed Test

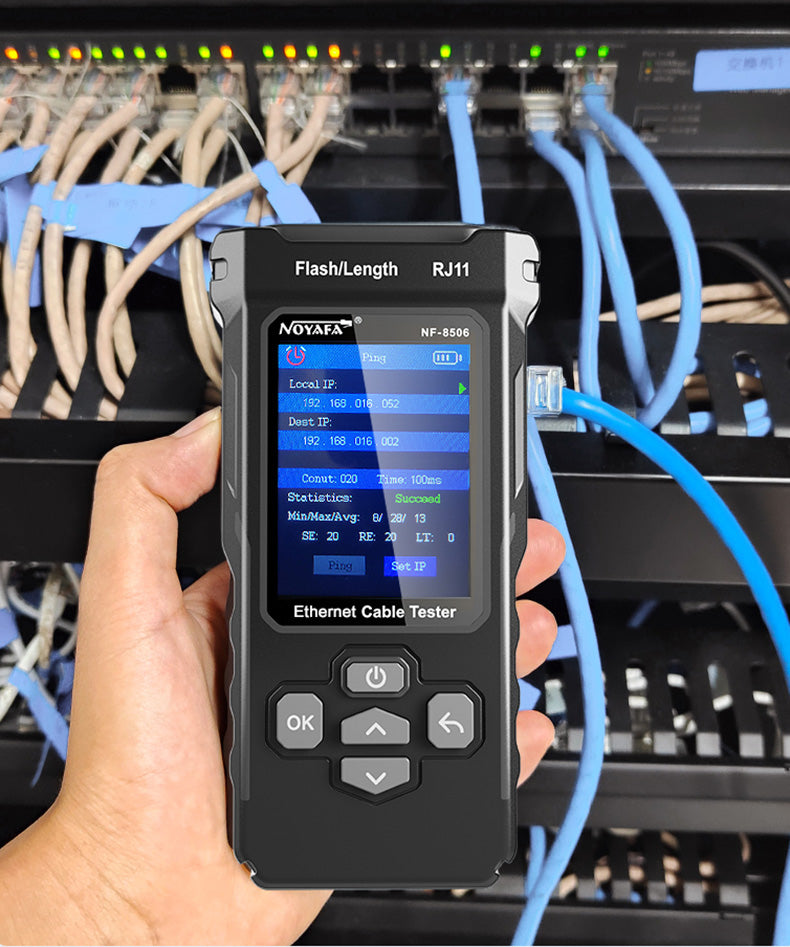

Ping Test

Test the network speed with NF-8506. Find out the values of Package Sent (SE), Received (RE), and Lost (LT) data.

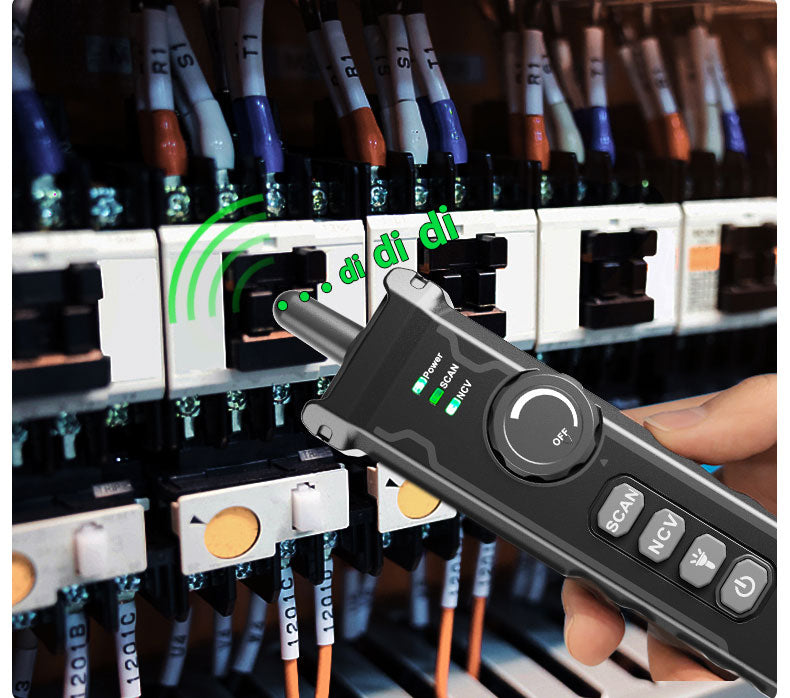

NCV Contact

To avoid possible electrical shock, use NF-8506 Receiver's NCV function to see if the port or line has electricity or not.

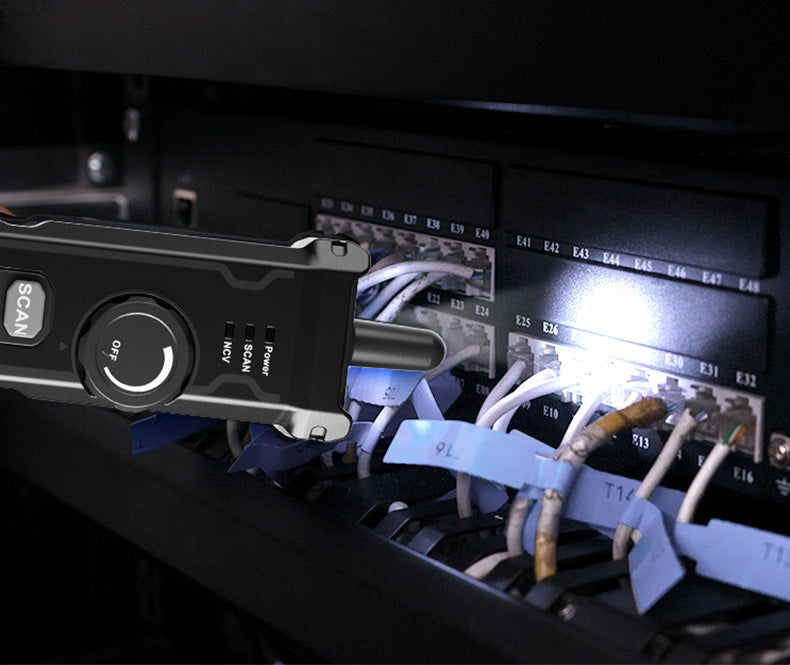

Led Lighting

You can find a Led light on the Receiver. Dark environment can no longer stop you completing the task.

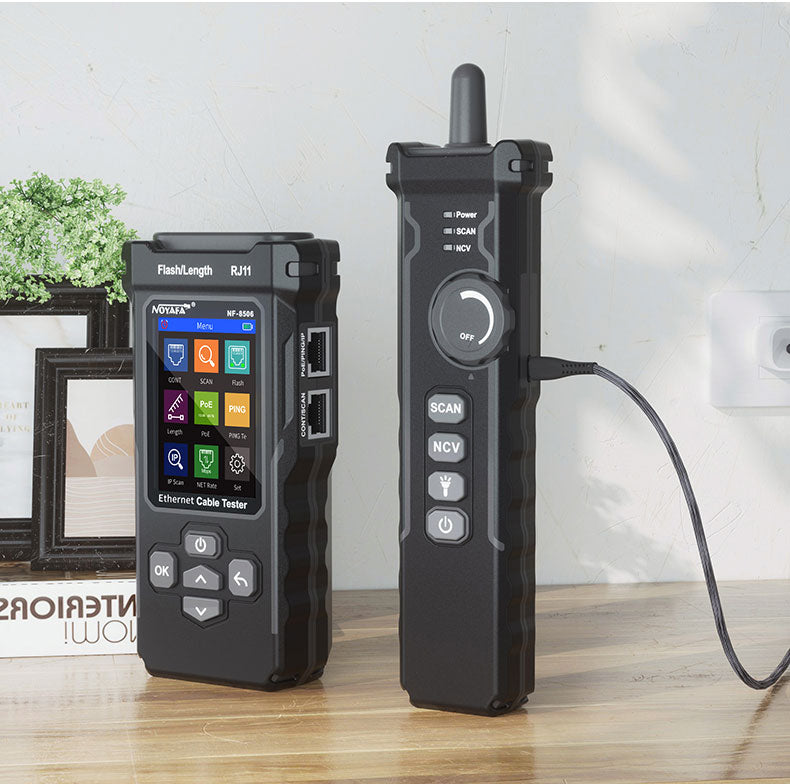

3.7V Lithium Battery

The device is installed with a 1700 mAh rechargeable lithium battery. When it drains out, take out a USB Type-C cable and make it alive soon.

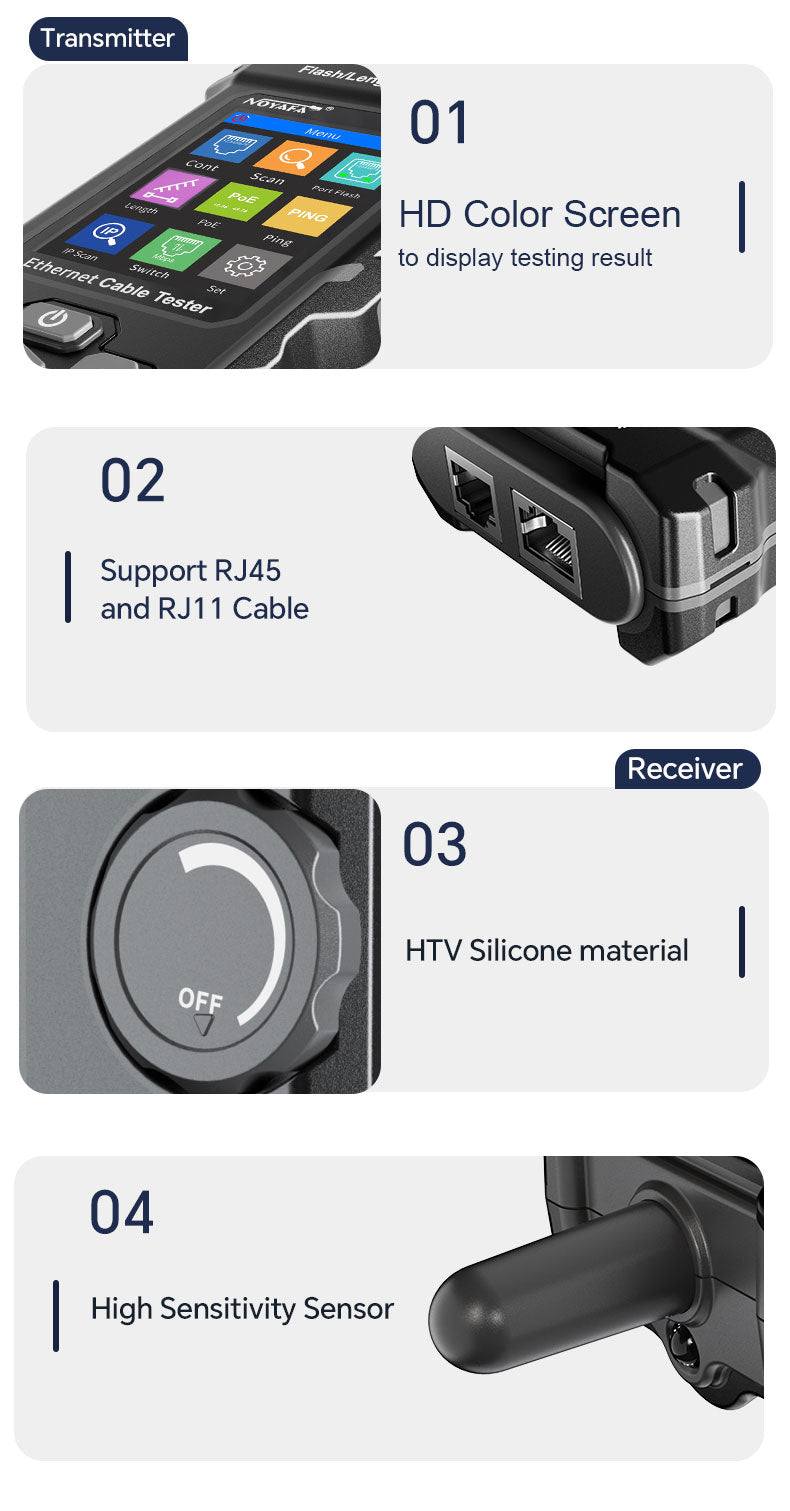

Product Details

Transmitter:

HD Color Screen: View all testing results clearly;
RJ11 & RJ45 ports: Support to test both network and telephone cables.

Receiver:

HTV silicone material: Durable and compact;
High sensitivity Sensor: Qucik and accurate testing.

NF-8506 vs NF-981 vs NF-IPC715 Comparison

NF-8506

✔️ Cable tracing

✔️ Wiremapping

✔️ RJ45

✔️ RJ11

✔️ Fiber optic cable

❌ OTDR

✔️ PoE Checking

❌ OPM

❌ VFL

✔️ PING Test

✔️ IP Scan

✔️ Port flash

✔️ Lamp

❌ Crimping test

✔️ NCV

✔️ Length test

✔️ LCD display

✔️ Lithium battery (Type-C)

Buy Now

NF-981

✔️ Auto OTDR

✔️ Light source

✔️ Event map

✔️ Loss test

✔️ RJ45 line sequence

✔️ Flashlight

✔️ 60KM Measuring distance

✔️ OPM

✔️ VFL

✔️ Event blind zone≤10

✔️ Attenuation blind zone≤15M

✔️ Incoming light detection(1310/1550nm)

✔️ Lamp

✔️ Crimping test

✔️ With light test(1310/1610nm)

✔️ Optional dynamic range(22/24db)

✔️ LCD display

✔️ Lithium battery (USB)

Buy Now

NF-IPC715

CCTV Testing ✔️

Network Cable Testing:
Sequence ✔️
Wiremap ✔️
TDR Testing ✔️
Cable Quality Test ✔️
1000M Communication Quality Test ✔️

Network Testing:
Channel Monitor ✔️
Advanced Channel Monitor ❌
Network Tools ❌
PING ✔️
IP Scan ✔️
IP Conflict Test ✔️
Mac Address Scan ✔️
Band Test ✔️
Port Flash ✔️
DHCP ✔️
Router Trace ✔️
Link Detection ✔️
PPPOE ✔️
Fast IP Detection ❌
Focal Length Calculator ❌
Network Calculator ❌
Virtual IPC ✔️
Self Contract ✔️
Self Contract Audio Test ✔️
RTSP Player ✔️
Network Status ✔️

Buy Now
