Regular price$229.81 USD
/
Shipping calculated at checkout.

Beware of low-priced refurbished devices. Buy official.
  •  30-Days Money Back Guarantee
  • In Stock, Fast Free Shipping
Buy more and save more
  • BUY OVER $300 USD for 10% OFF: Copy code BF300TEN
  • BUY OVER $600 USD for 15% OFF: Copy code BF600ELV
  • BUY OVER $1,000 USD for 20% OFF: Copy code BF1KTEW

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Features & Benefits:

  • IPC test: Check the IP address, name, protocols, PING, speed, and other information of a surveillance camera.
  • CCTV monitor: Sync captured images on the tester screen without delay. One-click to playback, record, snap, stop, and zoom in/out the frames.
  • Camera setup: Change IP address, video and image settings (brightness, contrast, resolution, frame rate, bitrate, encoder, etc), time, storage, streams, and more.
  • Universal compatibility: Supports 4K H.265 IP camera tests, 30+ ONVIF & CVBS protocols like HIKVISION, Pelco-D/P, Samsung, and Panasonic, HD camera tests like TVI, CVI, and AHD, etc.
  • Touch Screen + Buttons: Installed with a 7-in LCD touch screen, this IPC tester is like a portable tablet.
  • 3 power output: DC 5V, 12V & 24V to power on various cameras. We can plug out the cable of a camera and connect it to this tester. It will run the camera like usual.

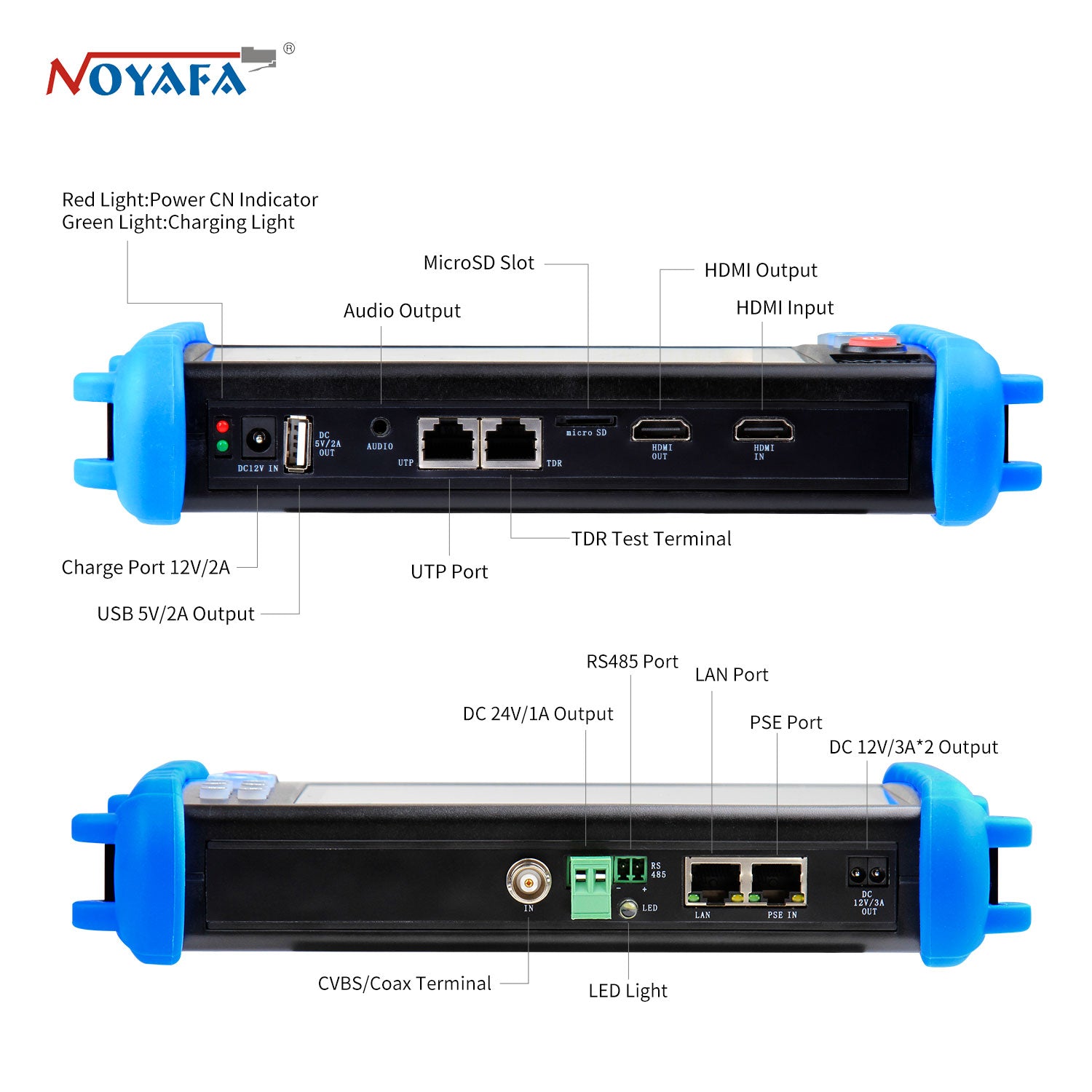

  • Various jacks for multiple inputs: It has LAN (RJ45), CVBS (Coaxial), SDI, a red light source, fiber optic (optical power meter), PSE, RS485, and HDMI ports.
  • IP camera tester with PoE: Connect a camera to this tester via the PoE port. Run the PoE feature. You know which pair of cables is providing power and the exact voltage.
  • Cable tests: Connect the Lan cable or fiber optic cable to run a continuity test or TDR measure to see if the cable still works and its performance.
  • Model: NF-IPC722 & NF-IPC722ATCHS
  • Touch Screen: 7 inch G+ G structure capacitance screen
  • LCD Screen: 7 inch resolution 1920x1200 IPS HD full view
  • Ethernet Port: 10/100/1000M adaptive
  • WIFI: Built-in wireless WIFI, speed 150M
  • IP Camera Test: 4K H.265 IP camera test, video image real-time display without delay, support video snapshot, recording and playback
  • ONVIF: ONVIF tool, support DAHUA, HIKVISION, ACTI, SAMSUNG and other more than 30 manufacturer private protocols and customized, support camera mobile client installation
  • PTZ Control: Support Pelco-D/P, Samsung, Panasonic, etc. more than 30 protocols
  • CVBS Analog Camera Test: 1 channel CVBS analog signal input, support PAL/NTSC format adaptation

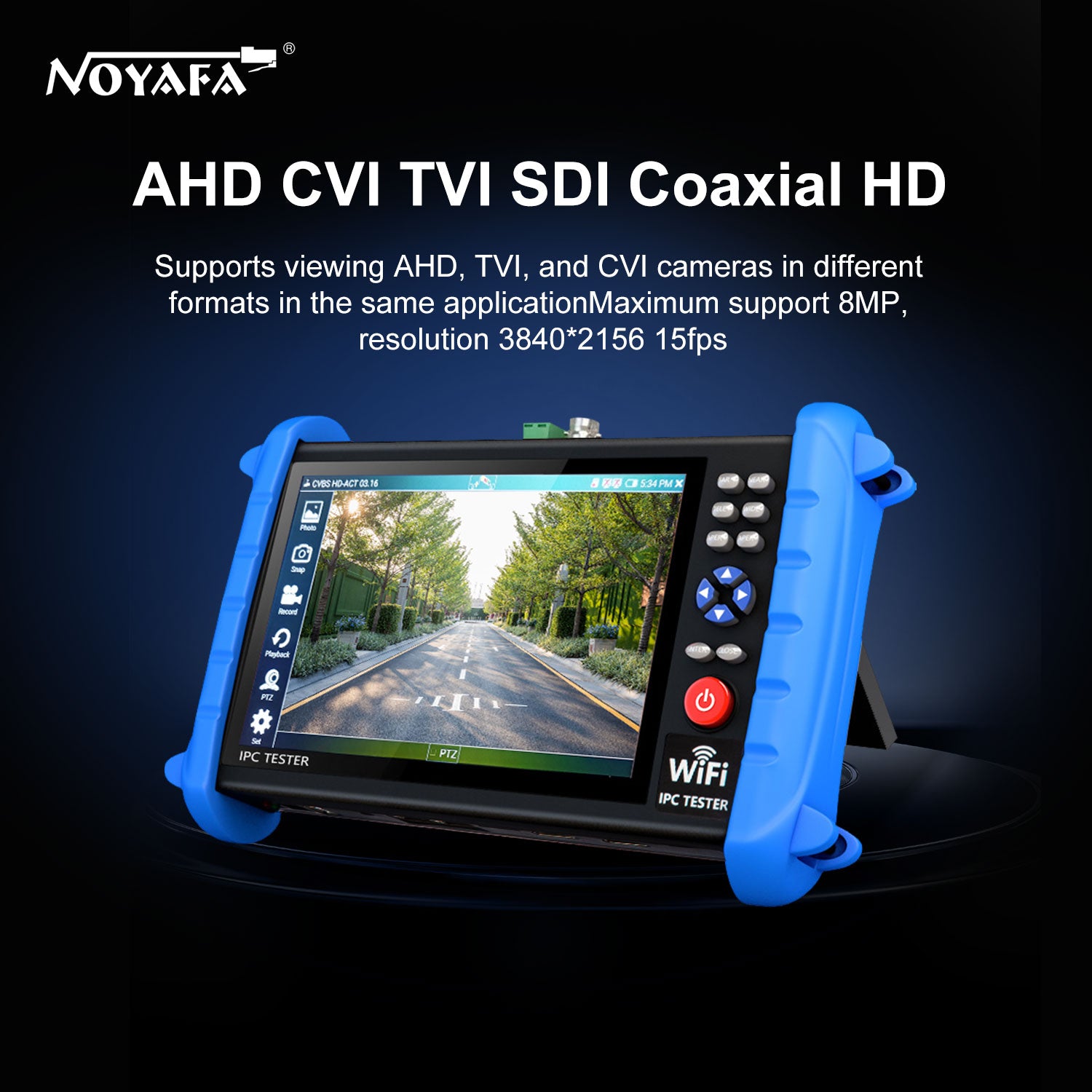

  • HD Camera Test: Support HD TVI 8MP, CVI 8MP, AHD SMP, EX-SDI 8MP (Excluded on IPC722; only available on IPC722ADCHS)
  • Video Image Zoom: Real-time enlarge moving HD video image, max enlarge 8 times

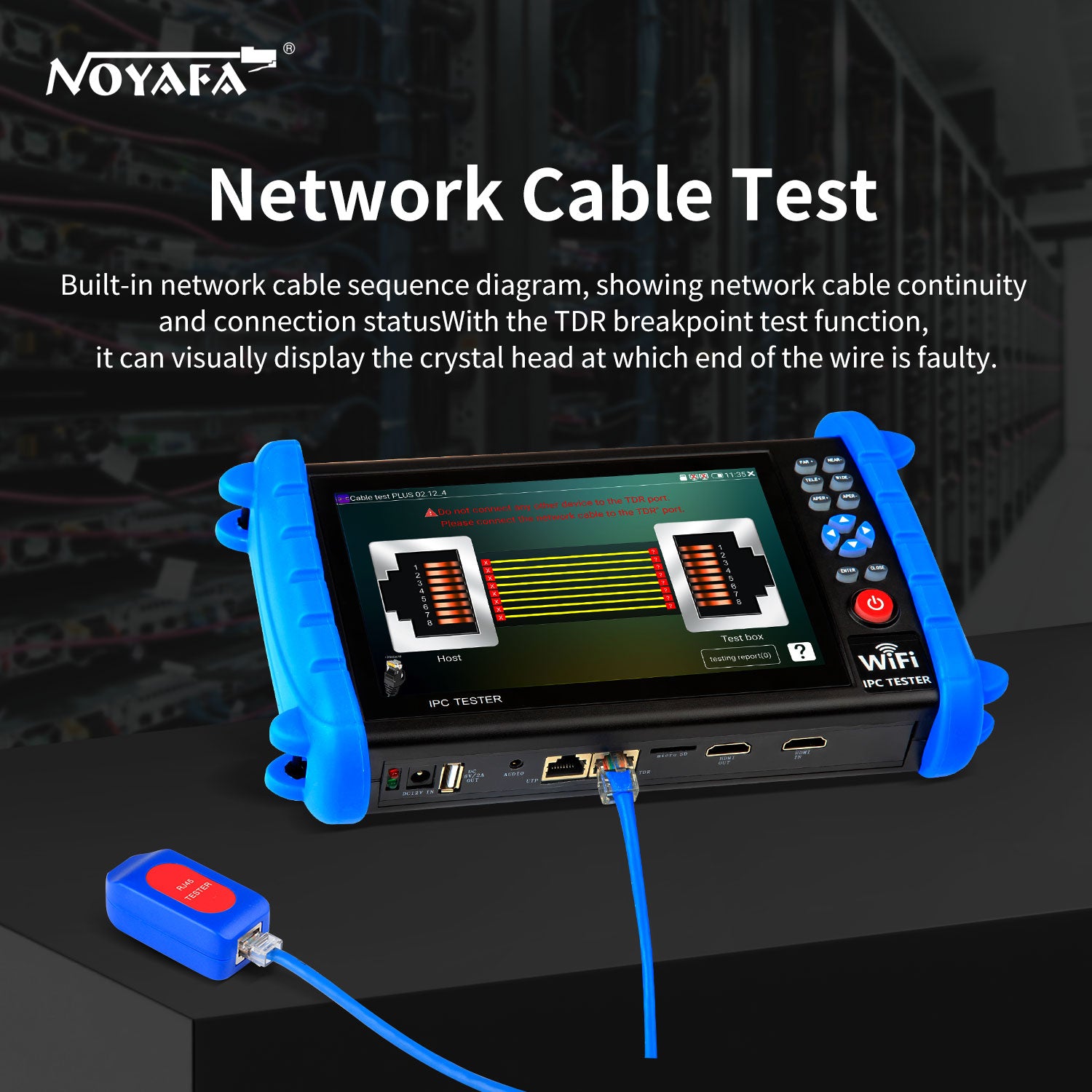

  • Cable Test: Built-in cable testing tool, check cable sequences and breakpoints, etc
  • Audio Test: One channel audio signal input for testing, can be recorded and saved
  • Optical Power Meter: Test optical fiber parameters
  • DC12V Power Output: DC12V power output, max current 3A, provide temporary power for cameras
  • DC24V Power Output: DC24V power output, max current 1A, provide temporary power for cameras
  • PoE Power Output: 48V standard PoE output, provide PoE power for cameras
  • DC5V Power Output: Provide temporary power for USB-powered cameras or emergency power for mobile phones, max current 2A
  • PSE Voltage Test: Display PoE power supply device voltage and circuit condition

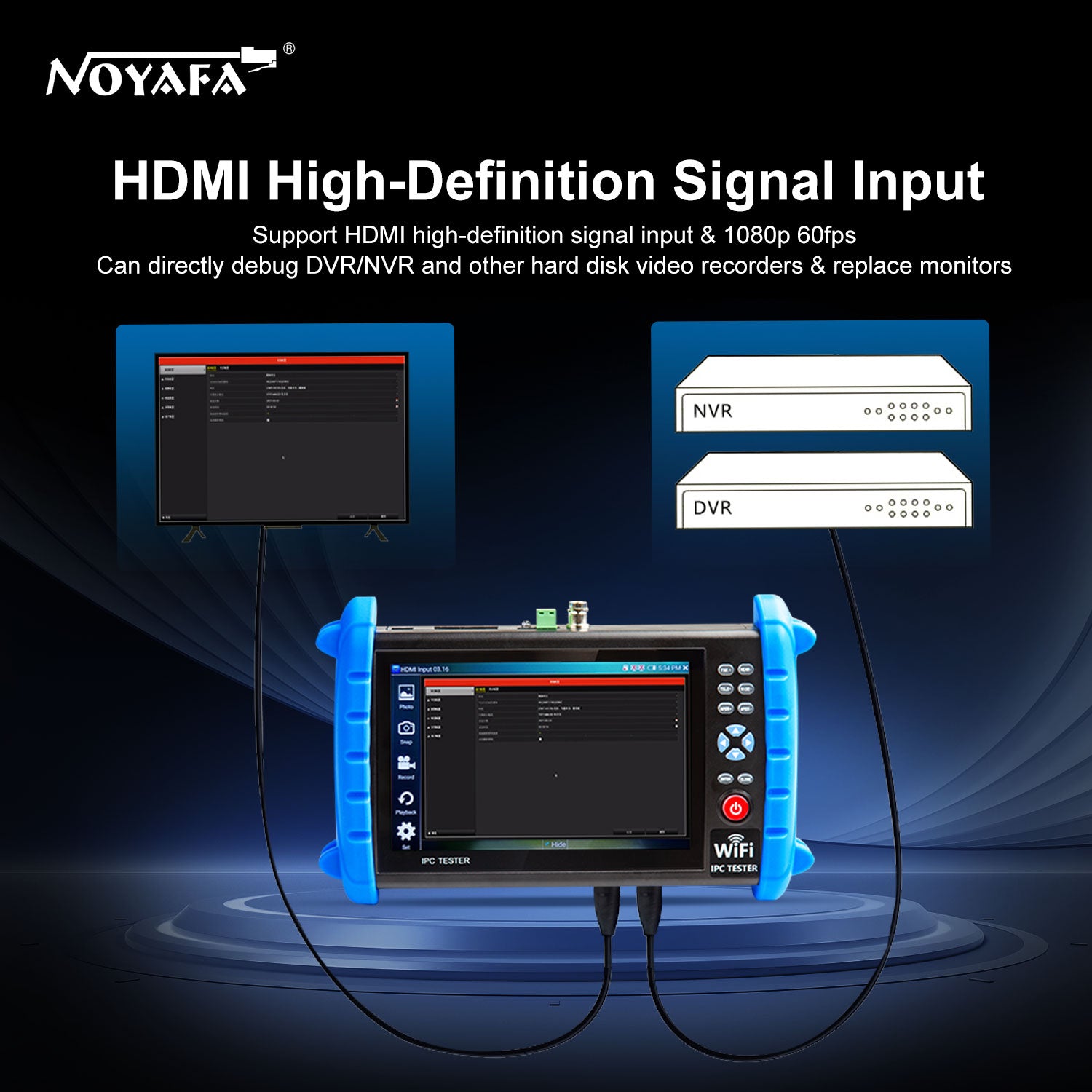

  • HDMI Video Input Test: Input HD video image into instrument to test video recorder; IPC722ATCHS supports up to 4K 30FPS and IPC722 supports only HD only.
  • RS485 Serial Port tool: Can send or receive any data or hex data
  • Power Charger: DC 12V/2A
  • Battery: Built-in 7.4V polymer lithium battery, capacity 7000mAh, can work continually for 8-10 hours
  • Language: Chinese Simplified, Chinese Traditional, English, Germany, Spanish, Portuguese, Russian, French, Polish, Korean, Japanese, Turkish and Italian 13 languages
  • Internal SD Storage: 8G
  • Working Temperature: -10℃ - 50℃
  • Working Humidity: 30%-90%

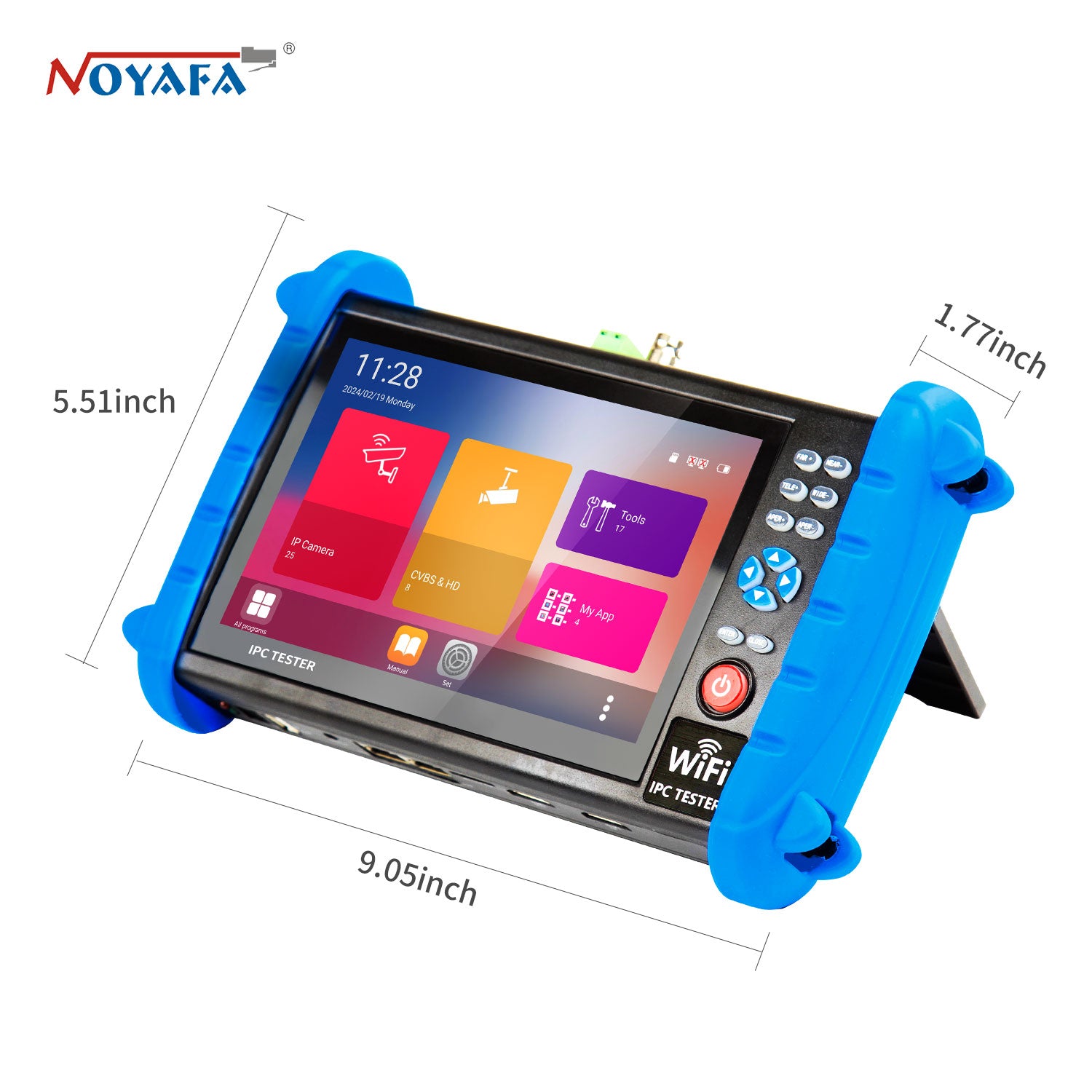

  • External Size: 23emx14emx4.5em
  • Weight: 0.9kg
