NOYAFA NF-8209S Network Cable Tester and Tracer with Anti-jamming Porbe, Crimp, PoE Port

Regular price $96.99 Sale price$68.01
Shipping calculated at checkout.

  • 30-Days Money Back Guarantee
  • In stock, Fast Free Shipping

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Features & Benefits

  • Locate The Target Cable Quickly - Two scanning modes, analog and digital, can be switched at any time, with an anti-jamming probe, adjustable sensitivity, tone generator, and LED light, so that the receiver can quickly and accurately locate the target cable in a wide variety of complex environments.
  • Ethernet Continuity Test - Analyze CAT5 CAT6 (STP & UTP) line faults, such as normal, open circuit, short circuit, and cross, and see the results instantly.
  • Measure Cable Length Accurately - Measure the network cable in the range of 2.5m-500m.
  • Port Blink Test - Identify the network port by the blinking port light on the Hub or Switch. Available to 10M/100M/1000M Hub/ switch.
  • PoE Testing - Identify which pins are providing power and detect how much voltage, and identify which type of PSE (AT/AF standard).
  • Work Safely - Non-Contact Voltage (NCV) tester detect AC voltage (70V-1000V) without disrupting the electrical system, providing you with maximum safety and convenience.
  • Rechargeable Battery- The network tester can be recharged using a USB-C cable, and the lithium battery provides long-lasting power.
  • Other Functions - Quality control of the crimping crystal.
  • Certification - Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.
  • 100% Affordable - Manufactured in China and a lot cheaper than competitor products with similar quality. Like Fluke.


  • Cable types: CAT5/CAT6
  • Cable sequence and fault testing: Normal, open circuit short circuit, cross,etc
  • STP/UTP: Both compatible
  • Max range: 600m / 1,968ft

QC Test:

  • Test type: 8P
  • Response speed: No longer than 1 second
  • Minimum recognition: 10cm / 3in


  • Test line: CAT5 & 6
  • Test range: 2.5 - 200m /8 - 656ft
  • Accuracy: ≤20m±4.6m; 20-100m ±2.4m; >100m±3.2m


  • Cable type: CAT5 & 6
  • Max signal voltage: 5V ± 1.0VP-P
  • Frequency: 455KHz
  • Dual mode: Analog / digital mode
  • Max range: 600m / 1,968ft


  • Voltage test range: DC 5-60V
  • Power supply core jumper mode: End jumper, middle jumper, 8-core power supply, unknown.
  • PSE type: Non-standard, IEE802.3at/af

Port Blinks

  • Full-duplex/ half-duplex recognition
  • Auto-negotiation/ non-auto-negotiation
  • Switch type: 10m/100m/1000m


  • LCD Display: 180*64 with backlight
  • Language: Chinese/English
  • Ports: RJ45 * RJ11
  • Power supply: 3.7V 1400mAh polymer lithium battery
  • Low battery power indication: yes
  • Auto-off: 15/30/60min or off
  • Voltage protection: DC60V
  • Maxi working current: ≤200mA
  • Size: 125*70*32mm


  • Adjustable scan strength: Yes
  • NCV: AC70V - 1000V 50/60Hz
  • Voltage protection: DC 60V
  • Maxi working current: ≤200mA
  • Ports: RJ45
  • Voice prompt: yes
  • Headphone jack: yes
  • LED: Power indication & LED lighting
  • Power supply: 3.7V 1400mAh polymer lithium battery
  • Size: 198*50*30mm

NF-8209S Cable Tester Unboxing


All-in-one Network Cable Tester

Add NF-8209S to your toolbox and fix all ethernet issues easily. Start wiremap checkup, path tracking, length measure for network cables. Locate ports on ethernet switch or router and run link test.

NF-8209S Multifunctional Cable Tester

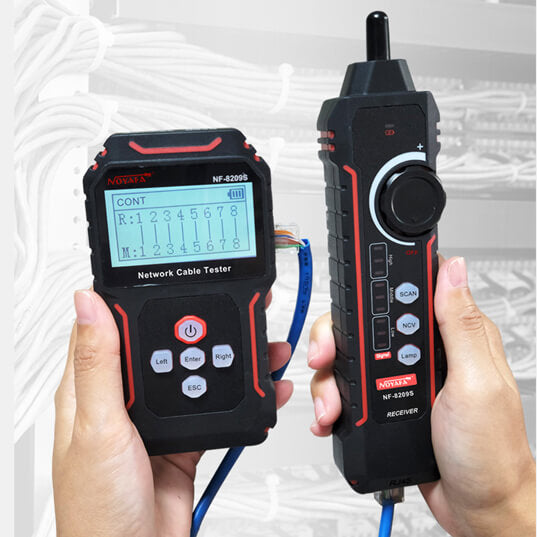

NF-8209S Cable Continuity Test
RJ45 Test

Check Cable Continuity

Plug and test open, short, cross, etc. for RJ45 ethernet cables.

RJ45 Length Meter

Measure the length of 8 wires of a network cables with 99% accuracy.

  • Supported test range: 8.2 - 1,640ft / 2.5 - 500 meters.
NF-8209S RJ45 Length Meter
Dual mode

Cable Scanning

Anti-interference mode and normal mode can be switched at will, and are widely used in engineering wiring, equipment room maintenance, equipment update and other scenarios.

Crimp Test for RJ45 Connector

Plug in an RJ45 cable into the QC port and quickly run a crimp test. Identify any wiring issue of the connector.

RJ45 Connecter Crimp Test
Locate Ethernet Port on Switch or Router
identify the docking port

Port Blinks

Connect a working ethernet cable to the Flash/PoE/Length port. Or connect a wall ethernet port via a testing cable. Locate the corresponding port on a switch via the flashing light at the same frequency.

Link Test

Automatically perform link test while the port blink function is in progress.

NF-8209S Link Test
NF-8209S Non-contact Voltage Tester

NCV Induction Pen

Hover over objects, electric components, and surfaces. Tell immediately when an object contains electricity.

Lithium battery

USB Type-C Charging

Equipped with a 1,400mAh polymer lithium battery, NF-8209S suports a long working time with Type-C recharging.

TYPE-C Charging
NF-8209S Sturdy Durable Design

Two-Color Injection Molding

The inner layer is a hard shell, sturdy and resistant to failing, and the outer layer feels comfortable.

Probe and Tone Generator

Sensitivity Adjustable

Based on different situations, adjust the sensitivity of the probe. Find the cable accurately even among messy cables.

Focus on Details

High standard RJ45 interface. Translucent Silicone combined mode light. Condenser lens LED flashlight. Adjustable sensitivity knob.
