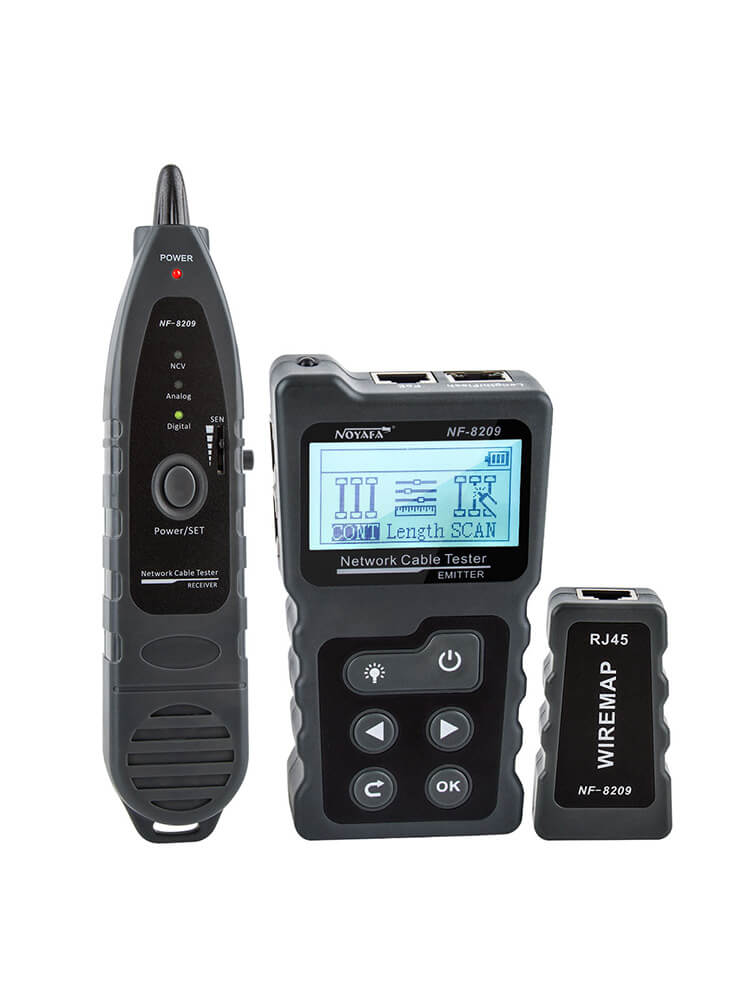

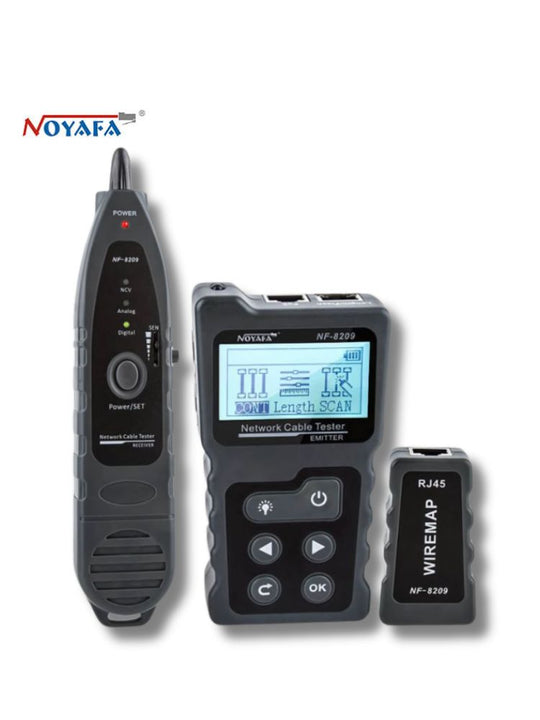

NOYAFA NF-8209 Advanced Network Cable Tester with Tone Tracer

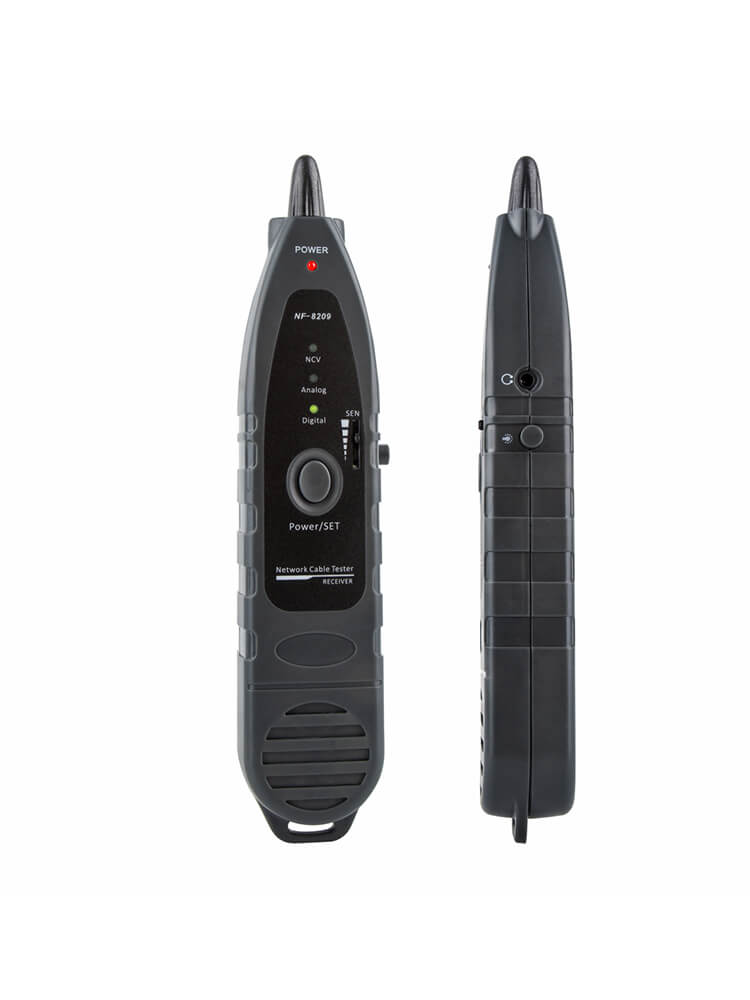

NF-8209 Receiver Details

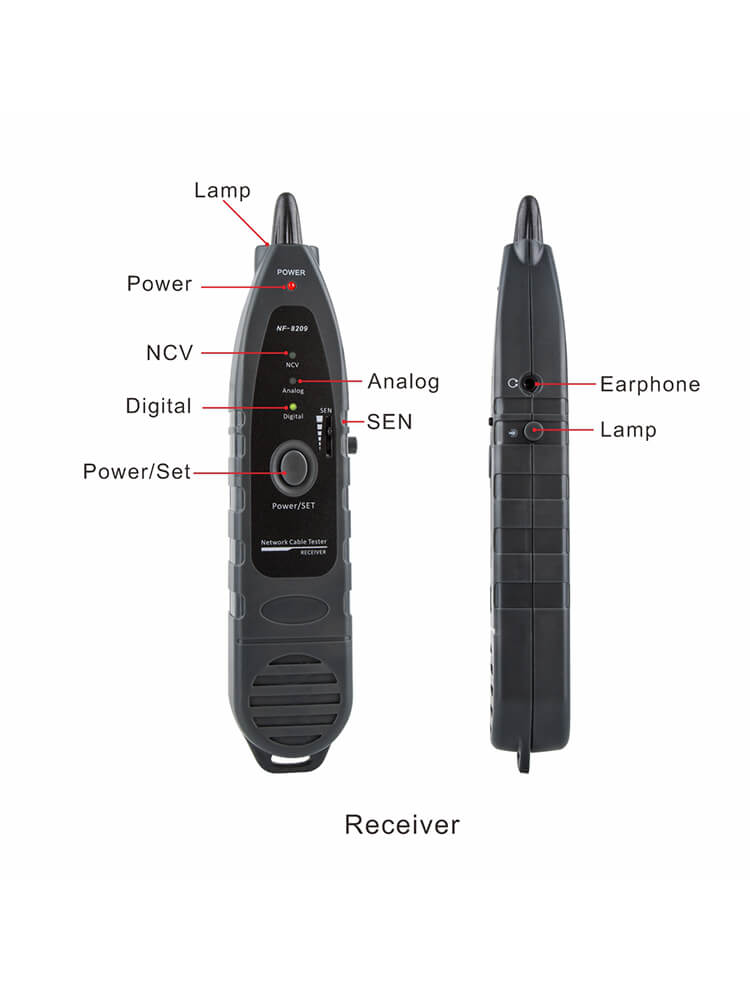

NF-8209 Functions

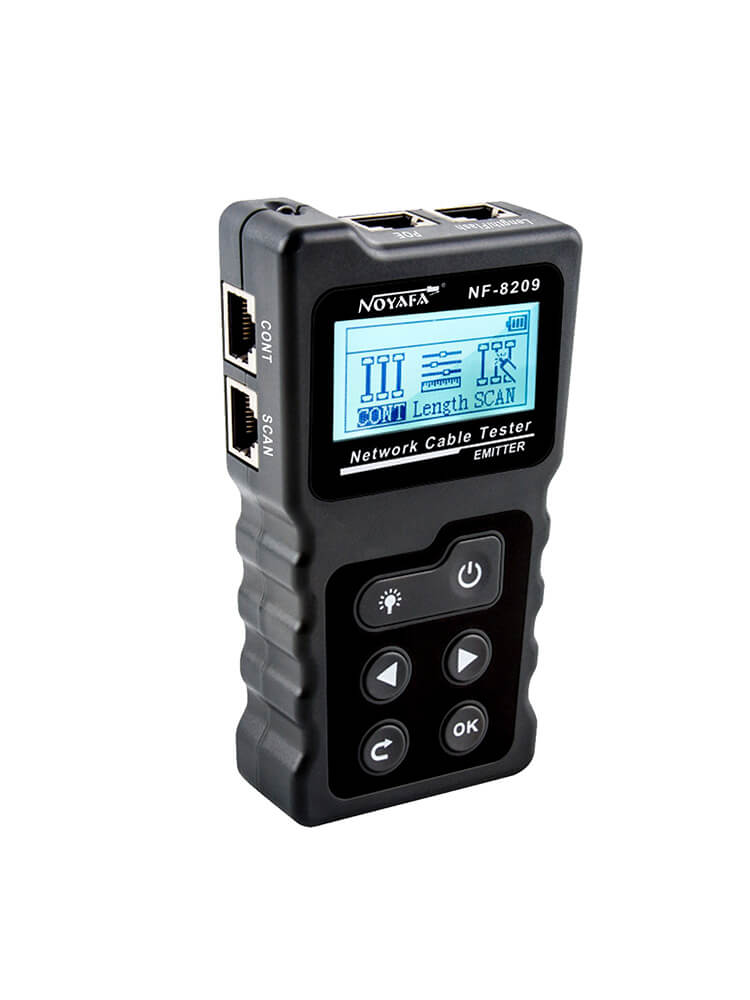

NF-8209 Emitter

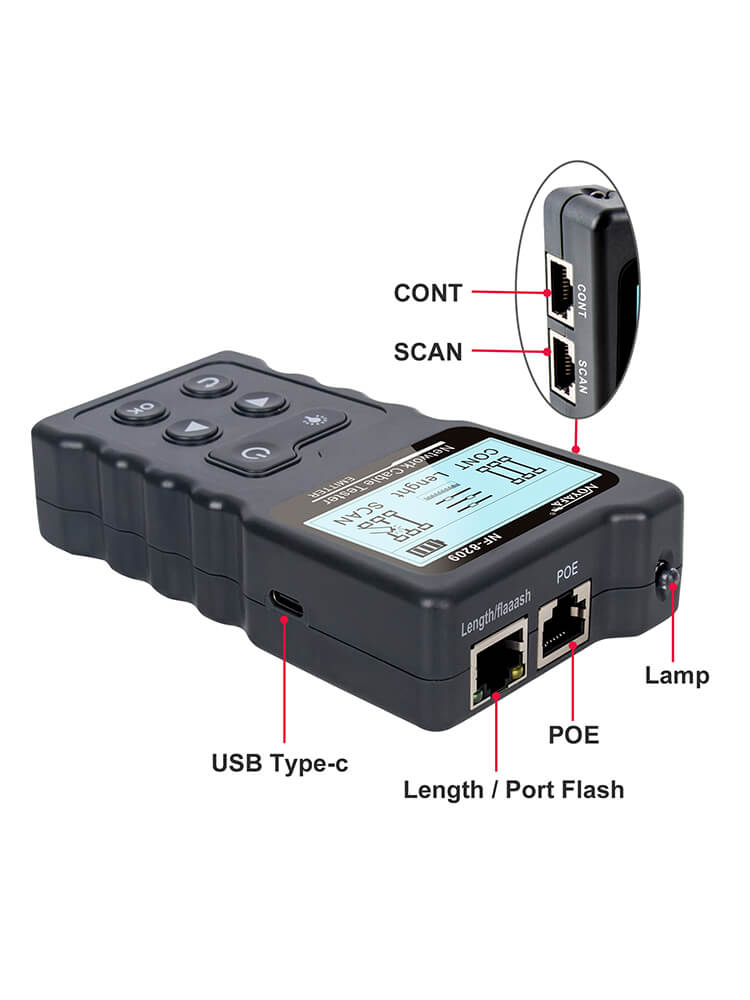

NF-8209 Cords and Functions

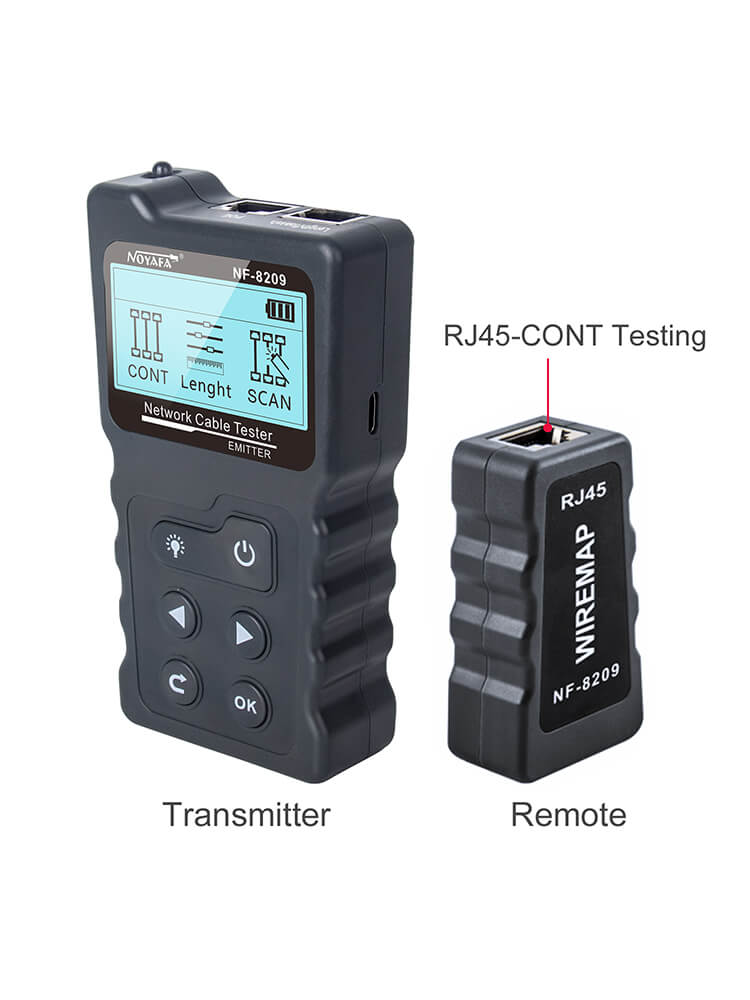

NF-8209 Remote Details

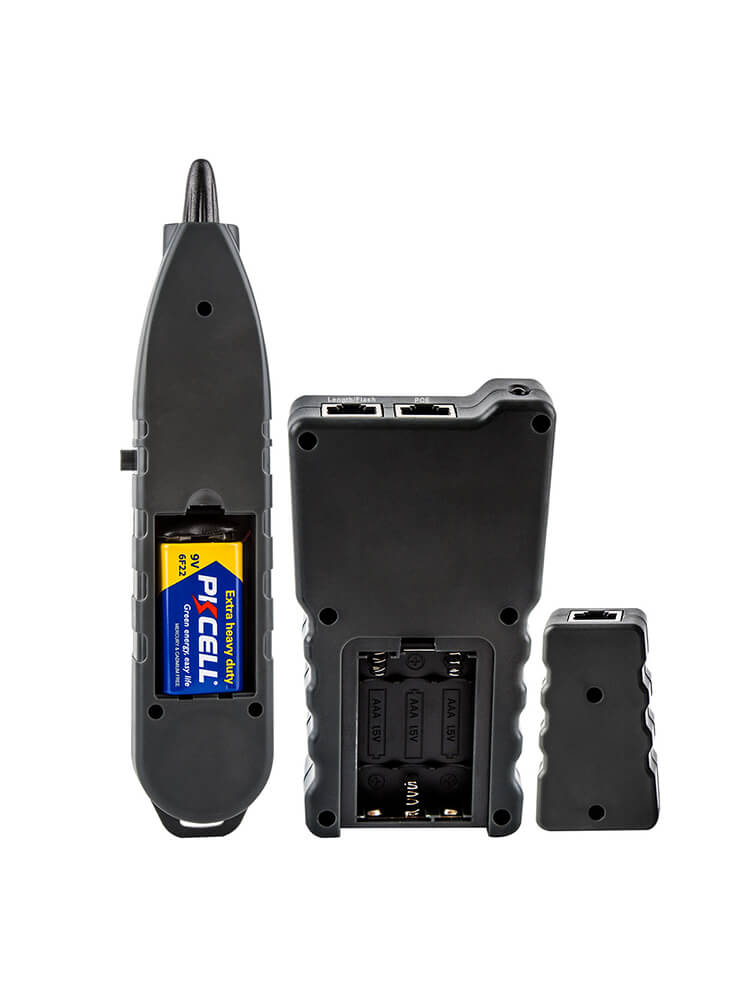

NF-8209 Back Display

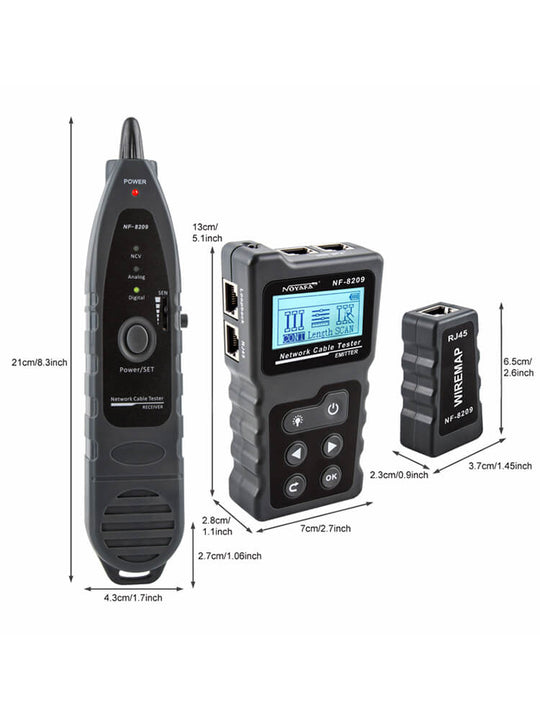

NF-8209 Parameter

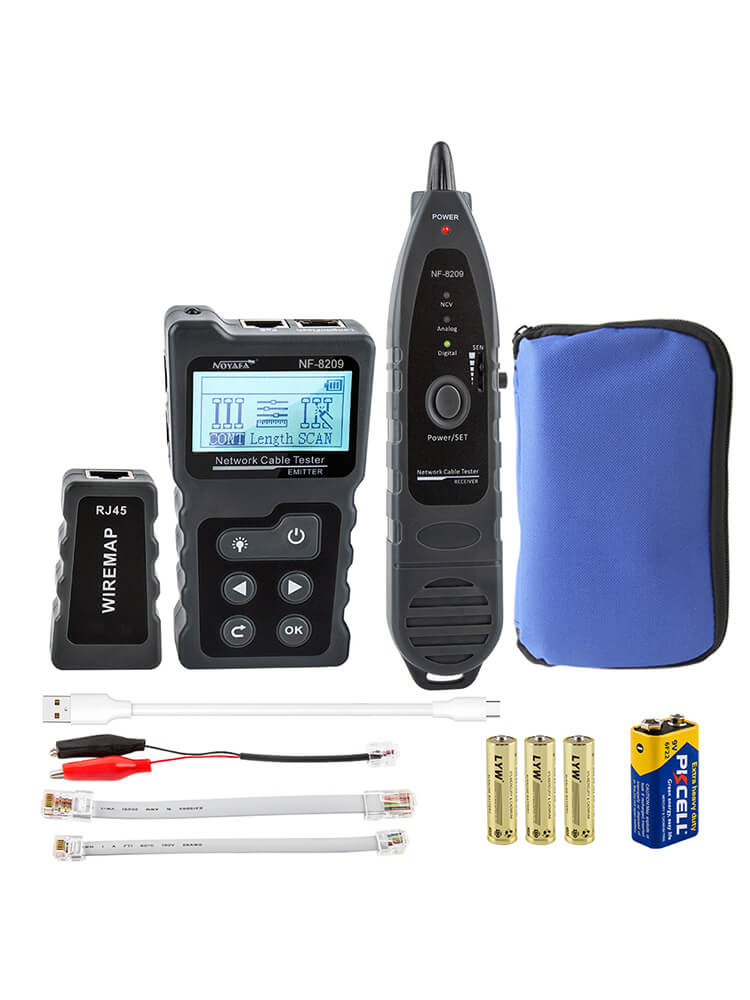

NF-8209 Package

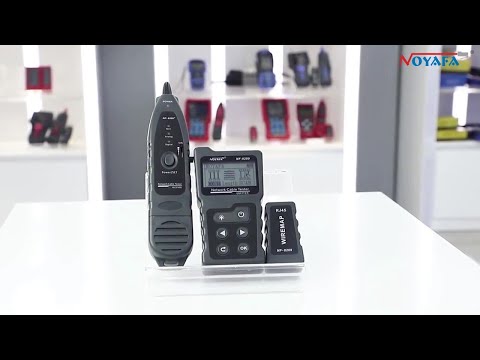

NF-8209 Product Video
NOYAFA NF-8209 Advanced Network Cable Tester with Tone Tracer
NOYAFA NF-8209 Advanced Network Cable Tester with Tone Tracer
NOYAFA NF-8209 Advanced Network Cable Tester with Tone Tracer
NOYAFA NF-8209 Advanced Network Cable Tester with Tone Tracer
NOYAFA NF-8209 Advanced Network Cable Tester with Tone Tracer

NOYAFA NF-8209 Advanced Network Cable Tester with Tone Tracer

Regular price $55.00 USD Sale price$52.99 USD
/
Shipping calculated at checkout.

Models
Beware of low-priced refurbished devices. Buy official.
  • 30-Days Money Back Guarantee
  • In stock, Fast Free Shipping
Black Friday 2024 Offer:
Buy more and save more
  • BUY OVER $300 USD for 10% OFF: Copy code BF300TEN
  • BUY OVER $600 USD for 11% OFF: Copy code BF600ELV
  • BUY OVER $1,000 USD for 12% OFF: Copy code BF1KTEW

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Features & Benefits:

  • Network Toner: Trace ethernet cables with a tone generator and probe. Easily locate the target cables with the frequency and volume of the sound. Three wire tracing modes (digital, analog, and PoE) are available for various situations.
  • Continuity Check: Plug and test common connection issues like open, short, and cross for STP and UTP cables. Easily identify the fault type without further damaging the cable.
  • Wire Length Meter: Measure any CAT5e, CAT6, and CAT6a cables that are 2.5m to 500m long (8.2ft to 1640ft). 98% accuracy of measuring is guaranteed.
  • PoE Test: Tells the parameters and standards of Ethernet cabling such as POE voltage, power supply polarity, power supply mode, and the type of PSE(af or at standard).
  • Port Blinking: Identify a target port on a switch, modem, router, and other Ethernet device via the blinking rate. Without unplugging all cables, easily locate the port in seconds.
  • Voltage Detector: Installed with a Non-contact voltage detector, NF-8209 ensures maximized safety when starting to connect cables.
  • Economical Networking Kit: We offer efficient and helpful network cable tester at an affordable price. We ensure customers get good product quality at a lower price.

Specification

  • Item Name: Network Cable Tester
  • Material: ABS

Transmitter parameter:

  • Transmitter function: wiremap, length test, cable scan, PoE testing, port flash, lighting function.
  • Cable type: CAT5e,CAT6,CAT6a(STP&UTP)
    Display: LCD with backlight
  • Power supply: AAA battery*3 (not included)
  • Low battery warning:2.7V
  • Auto-off time:15/30/60min/OFF
  • Voltage protection:DC 48V 5mA
  • Max working current:<150mA
  • Size:130*70*28mm

Receiver parameter:

  • Sensitivity: adjustable
  • AC voltage detecting
  • Lighting function
  • power supply:9V*1pc(not included)
  • Low battery warning:6+-0.5V
  • Max working current:<100mA
  • Size:210*43*27mm

Remote

  • wiremap port:RJ45
  • Voltage protection:DC 48V 5mA
  • Size:65*37*23mm

NOYAFA

18 Years in Cable Testing and Tracing R&D and Manufacturing.

Our Story
Network Toner and Probe

Advanced Cable Tracker

Buy one and get five features:

  • tracing network cables
  • testing network cables
  • measuring cable length
  • checking PoE status
  • locating ports.
NOYAFA NF-8209 Network Cable Tracker Receiver Transmitter Remote
NOYAFA NF-8209 Network Cable Tracker Cable Scanning

Trace Network Cables

Select one from the three available modes: digital, analog, and PoE. Trace network cables in various situations.

Check open, short, cross for STP & UTP cable

Continuity Check

Connect a LAN cable to NF-8209 and run the CONT mode. Identify the status of the cable. Use the remote when the cable is in different rooms.

NOYAFA NF-8209 Network Cable Tracker Continuity Checking
NOYAFA NF-8209 Network Cable Tracker Length Measurement
98% Accuracy

Cable Length Meter

With NF-8209, you can measure the length of all cables that are longer than 2.5m (8.2ft) and shorter than 500m (1640ft).

PoE Test

NF-8209 supports testing the information of standard PoE devices, such as PoE voltage, power supply polarity, and power supply mode and the type of PSE (both af and at standards).

NOYAFA NF-8209 Network Cable Tracker PoE Testing
NOYAFA NF-8209 Network Cable Tracker Port Flash

Port Blinking

Insert one end of the network cable into NF-8209. Locate the inserted port on a Ethernet device via the blink rate.

NCV induction pen

While providing accurate electricity measurement, the safe-to-use NVC induction pen will also keep you away from all dangers.

nf-8209 Non-contact Voltage Pen
NOYAFA NF-8209 Network Cable Tracker LED Lighting

Led Lighting

Both Transmitter and Receiver are installed with LED lights. The trouble of dark work is no longer an issue.
