NOYAFA NF-526E Handheld Thermal Imager with 256*192 High-Definition
NOYAFA NF-526E Handheld Thermal Imager with 256*192 High-Definition
NOYAFA NF-526E Handheld Thermal Imager with 256*192 High-Definition
NOYAFA NF-526E Handheld Thermal Imager with 256*192 High-Definition
NOYAFA NF-526E Handheld Thermal Imager with 256*192 High-Definition
NOYAFA NF-526E Handheld Thermal Imager with 256*192 High-Definition
NOYAFA NF-526E Handheld Thermal Imager with 256*192 High-Definition
NOYAFA NF-526E Handheld Thermal Imager with 256*192 High-Definition

NOYAFA NF-526E Handheld Thermal Imager with 256*192 High-Definition

Regular price$305.00
/
Shipping calculated at checkout.

  • 30-Day Money Back Guarantee
  • In Stock, Fast Free Shipping

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Features & Benefits:

  • Large detection range: -20℃ to 400℃ (-4℉ to 752℉)
  • Precise measurement: ±2℃ (-3.8℉) or ±2% of reading
  • HD infrared vision: 256x192
  • Fast analysis: Instant temperature measure and display
  • Temperature map: 8 color palettes and clear display
  • Large view of point: 83°x55°
  • Optimal Infrared Spectral Bandwidth: 8~14μm
  • Flexible output: videos (mp4) and pictures (jpg)

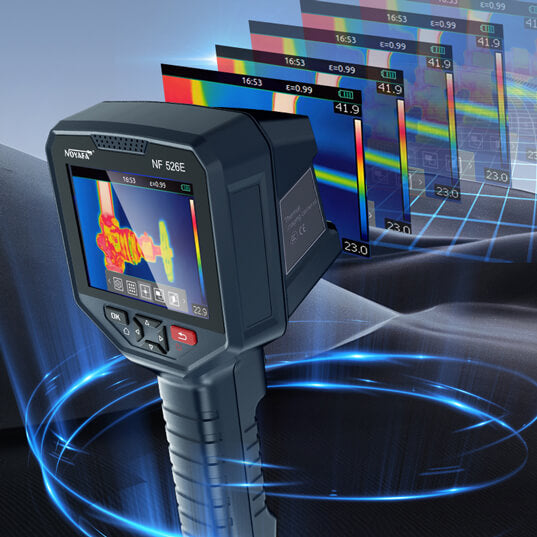

  • Easy data management: Local storage (8GB memory card) & direct output to PC via USB Type-C
  • Multiple language supports: English, Français, Deutsch, Españoll, Nederlands, ⽇本語, 한국인ا, 中⽂(简体),中⽂(繁体)
  • Resolution: 256 x 192
  • Infrared spectral bandwidth: 8~14um
  • Frame rate: 25HZ
  • NETD: 70mk@25℃
  • HFOV: 55.6°
  • Lens: Athermalized Fixed Focus Lens
  • Low temperature: -20~150℃,
  • high temperature: 120~400℃
  • Measurement Accuracy: +/-2℃ or +/-2% of reading
  • Temperature Measurement: Support the highest point, the lowest point, the centerpoint temperature measurement in the whole screen and the regional temperature measurement
  • Color palettes: Iron Red, Rainbow, Red hot, Black hot, White hot, High contrast, Green hot, Lava pattern
  • Visible Resolution: 720P
  • Visible feld angle: 55°X83°
  • Image Display Size: 3.5 inches
  • Image Mode: Overlay fusion, Outline fusion, Picture-in-Picture, Thermal, Visible.
  • Language: Chinese (Simplified), Chinese (Traditional) , English, French , German , Spanish, Dutch, Japan, Korean, Arabic
  • Port: USB Type-C (support to and export data)
  • Battery: 2600mah lithium battery
  • Working time: 4 hours ( full power)
  • Working temperature: -10℃ ~ + 60℃
  • Storage temperature: -40℃ ~ + 85℃
  • Storage: 8G build-in memory
  • Image Format: JPG
  • Video Format: MP4
  • Material: ABS
  • Item Size: 222 * 97 * 90 mm / 8.74 * 3.82 * 3.54 inch
  • Item Weight: 333g / 11.75oz

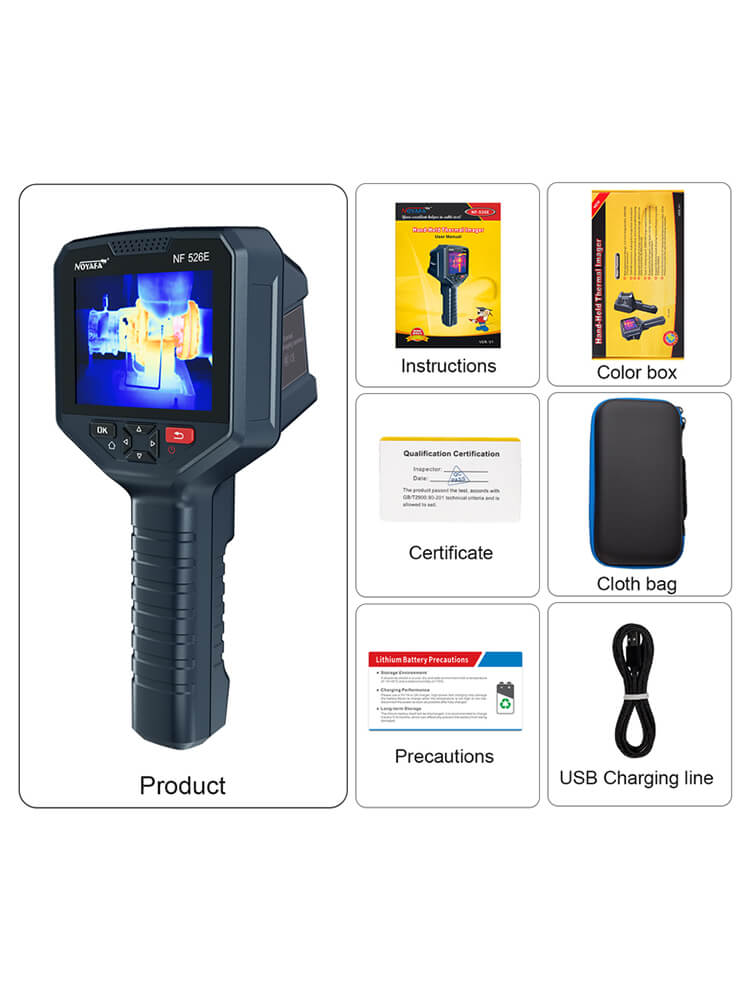

  • Package Size: 27 * 15.4 * 11.4 cm / 10.63 * 6.06 * 4.49 inch
  • Package Weight: 859g / 30.3oz

NF-526E Unboxing

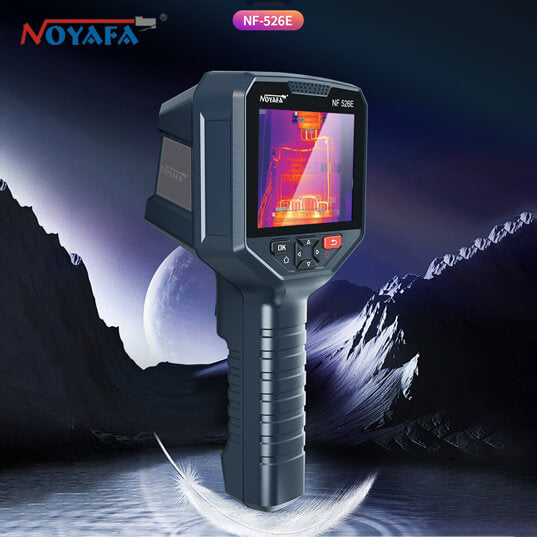

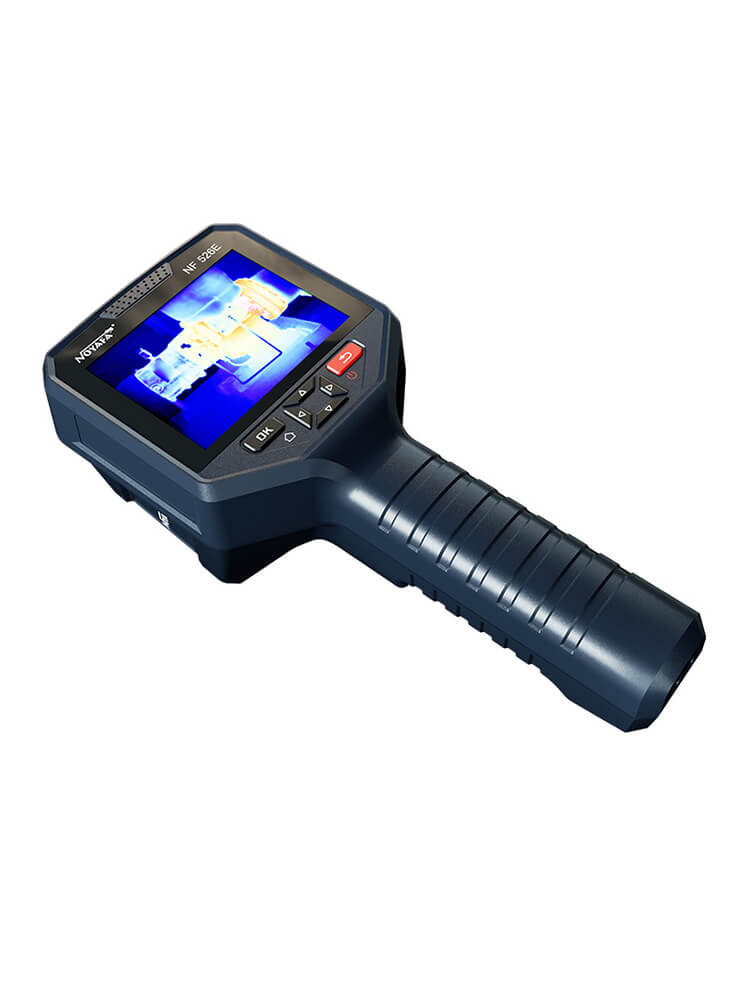

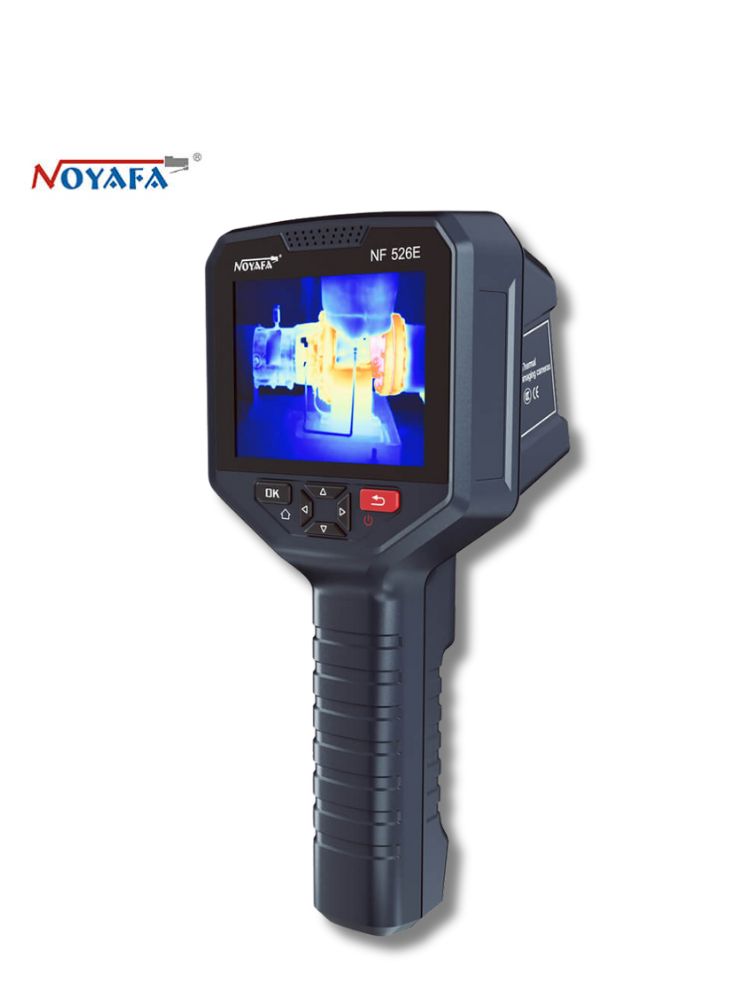

NF-526E

Handheld Thermal Imager

With the compact design, NF-526E Thermal Imager fits in bags and pockets. You can bring it anywhere and run a temperature measurement and analysis.

Precise & Sensitive

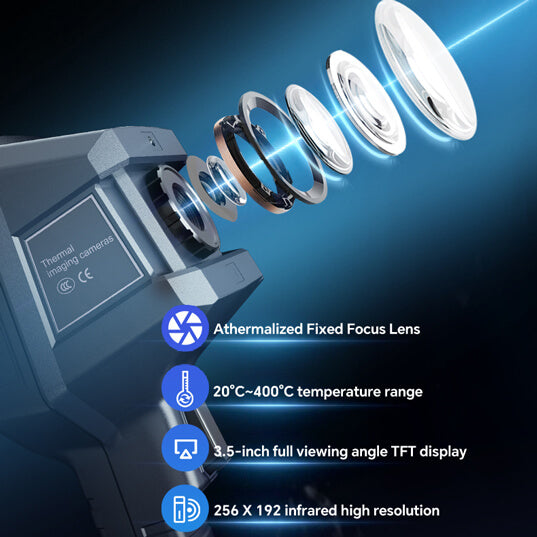

Advanced IR Scan Tech

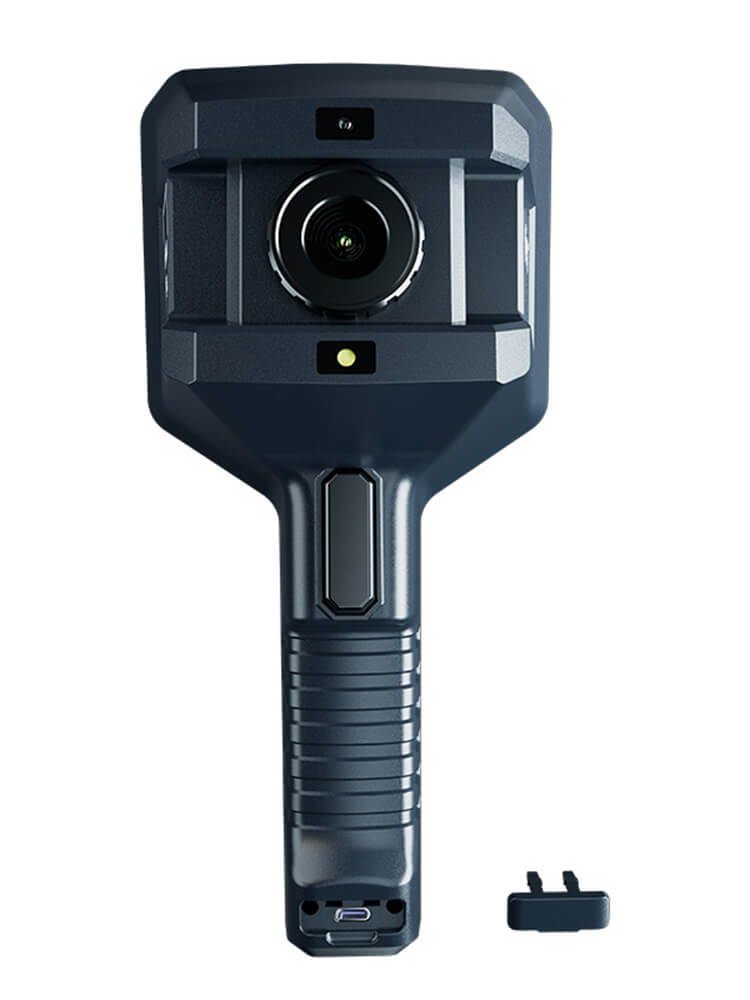

WIth advanced sensors and dual lenses - one IR and one visible, NF-526E can give you the most accurate results as it will always be.

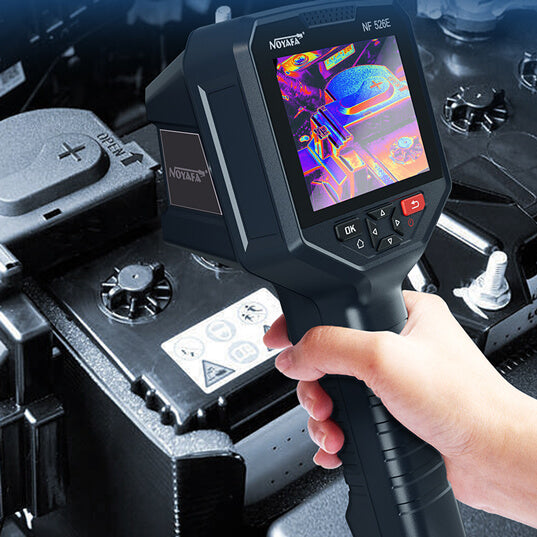

HD IR Display on 3.5In LCD

NF-526E will display the all the hot and cold spots on the 3.5-inch LCD screen with high-defintion IR vision. Easily tell the differences.

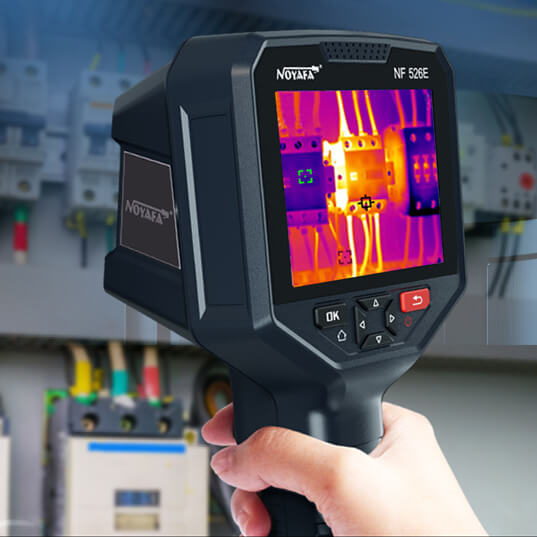

High-definition Infrared Imaging

Contributing to a 256*192 HD IR imaging resolution, NF-526E makes all details invisible.

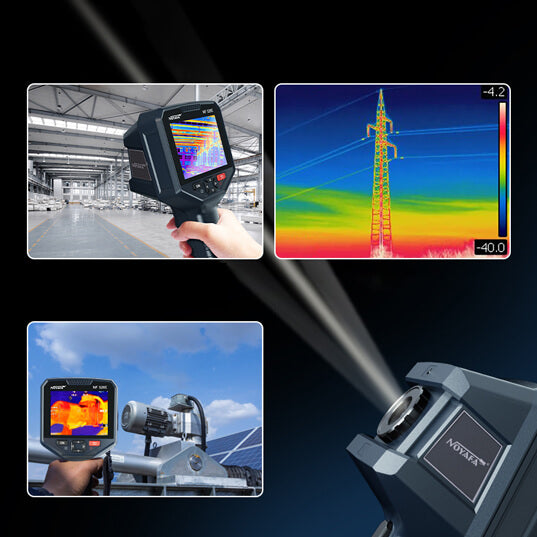

Versatility from Powerful Features

Available to measure and test temperatures of distant objects. Can help in multiple fields.

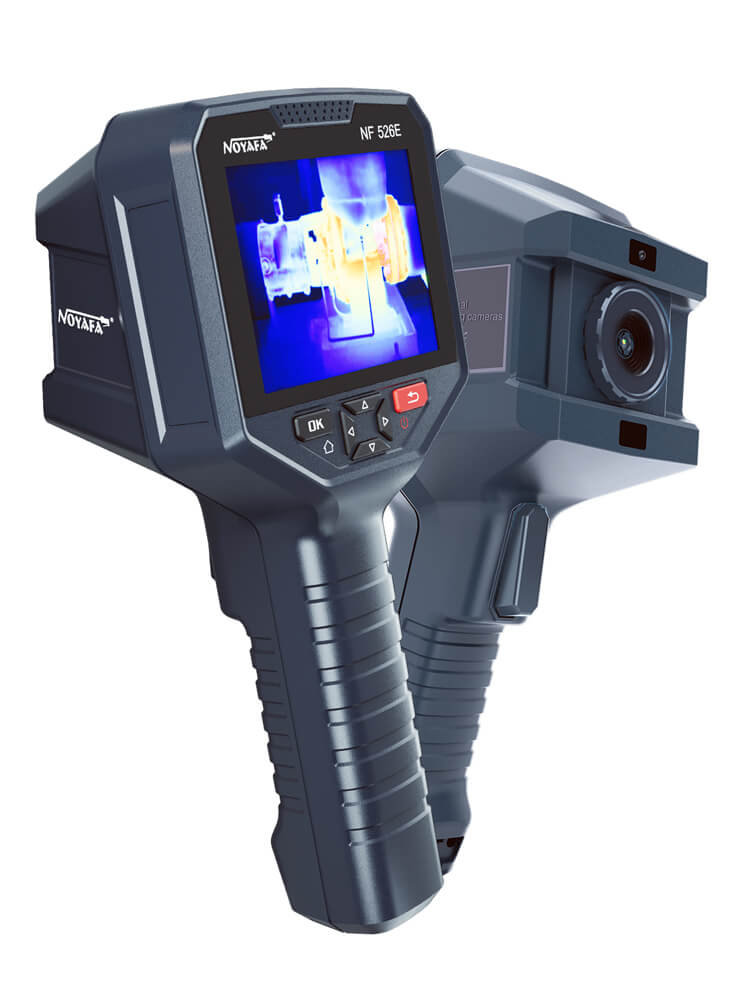

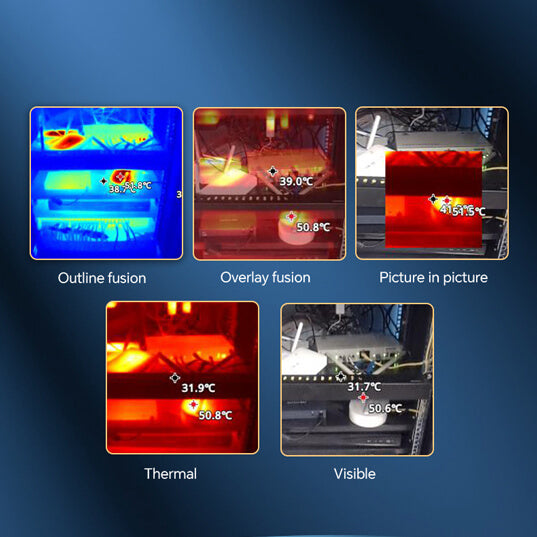

Fusions for Better Monitor

If the default IR vision is hard to tell the differences of objects, try another fusion. You can find 5 fusions in NF-526E.

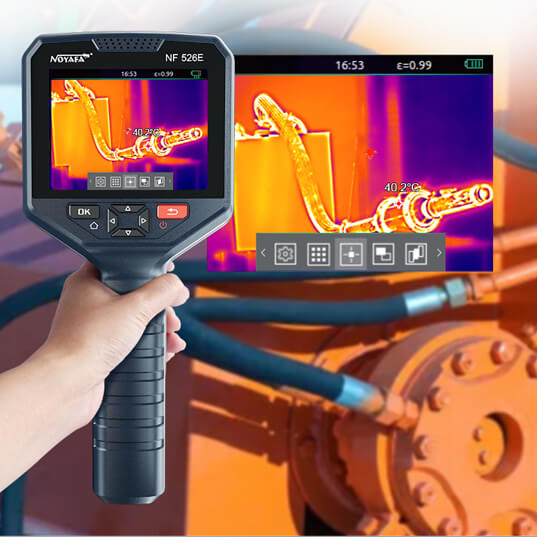

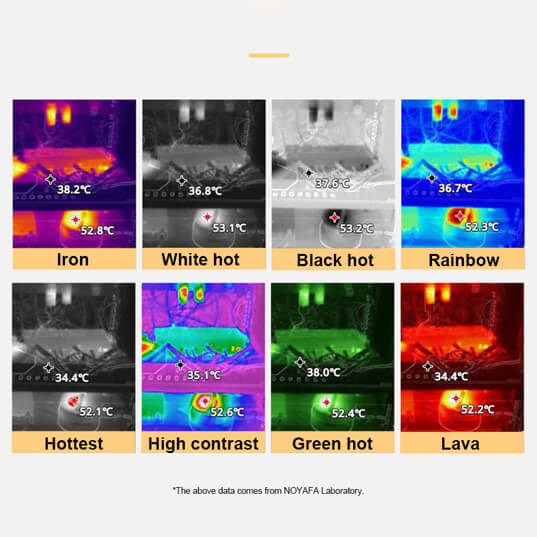

Make Hot & Cold Spots Stand Out

Adjust the color palettes and make the cold and hot spots more obvious.

Quick Response

Turn on NF-526E thermal imager gun and point it to the targets. It will measure the temperatures and display all values and differences on the screen within 1 sec.

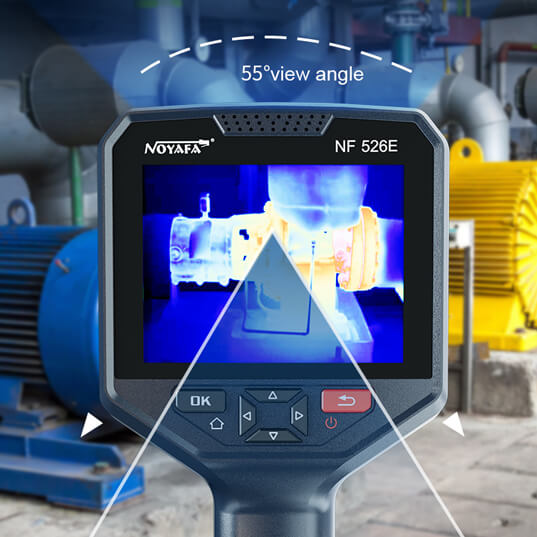

Large and Wide Measuring FOV

Supporting a 55°*83° large field of view, NF-526E can capture as many as objects at a time.

10 Language Supports

NOYAFA has customers from all over world. To improve your experience, we have upgraded NF-526E and planted 10 language settings inside.

Auto-refresh

NF-526E will refresh the data and hot map every few seconds. Just to give you the most accurate and clear data.

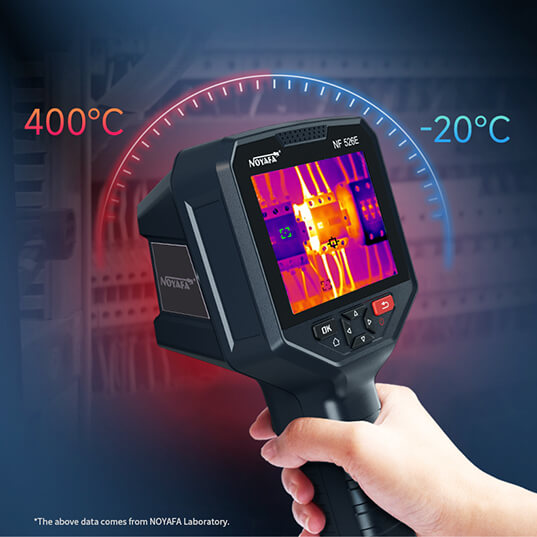

Big Capacity

Thanks to the advanced sensors produced by NOYAFA labs, NF-526E supports measuring up to 400°C (752°F) and down to -20°C (-4°F).

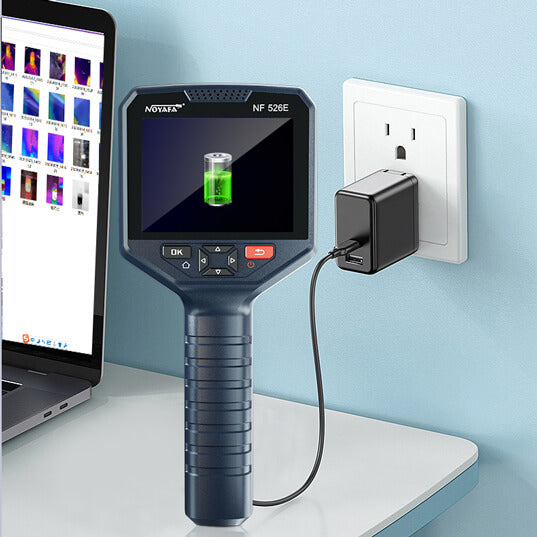

Reusable

Embbded with a 2600mAh lithium battery, NF-526E supports USB Type-C charging. Power it and use it anytime!
