Name: NOYAFA NF-858C Multifunction Wire and Cable Tracer & Tester. Find and Test Network, BNC Coaxial, and Even Fiber Cables
Brand: My Store
SKU: NF-858C-1
Price: 109.89 USD
Availability: InStock

NOYAFA NF-858C Multifunction Wire and Cable Tracer & Tester. Find and Test Network, BNC Coaxial, and Even Fiber Cables

$138.98 USD $109.89 USD

Shipping calculated at checkout.

Model

NF-858C

2 Units × $69 Only!

NF-859GT Ethernet & Fiber Multi Cable Tester & Toner

[Pre-Sale] NF-IPC728HSO CCTV & Cable Tester

30-Days Money Back Guarantee

In stock, Fast Free Shipping

Compare the NF-858C, NF-859GT, and NF-IPC728

Beware of low-priced refurbished devices. Buy official.

Quantity

Buy more and save more

BUY OVER $300 USD for 10% OFF: Copy code BF300TEN
BUY OVER $600 USD for 15% OFF: Copy code BF600ELV
BUY OVER $1,000 USD for 20% OFF: Copy code BF1KTEW

Features & Benefits

All-in-one cable tester: Run cable continuity test for RJ45 network cables, RJ11 telephone line, and coaxial cables. Display the wire map and fault name on the screen for real-time analysis.
Multitasking tester: Connect 4 cables to the 4 remotes at a time. Test them one by one via the Emitter.
Tone tracer: Trace the location or inserted port of a cable with one end connected to NF-858C. The toner will tell you where it is even when it's live.
Fiber optic tester: Turn the invisible breakpoint in a fiber optic cable visible. Easily locate the break or loss point via the red light.
Port Locator: Send a flashing light to the Ethernet port via the connected cable. Let you target the port.
Ethernet identifier: Identify which pins are providing power and detect how much voltage.
RJ45 & coax length meter: Plug and test the length of a network cable.

TRANSMITTER

Indicator: LCD 58x40mm with backlight
Tone frequency for tracing: 130 KHz
Max. distance of tracing: 6,562ft / 2,000m
Max. distance of cable map: 6,562ft / 2,000m
Test cable type: CAT5, CAT6, Coaxial
Compatible connectors: RJ45, BNC, VFL, Micro USB
Max. signal voltage: 9 +-1 Vp-p
Function and faults LCD display: LCD display (length, wire map, scan, short, no adapter, low battery)
Test record storage: 6 groups
Battery type: 3.7V 1,000mAh lithium battery
Dimension(LxWxD): 5.3 x 3.1 x 1.4 inches / 135 x 78 x 35mm

RECEIVER

Frequency: 130 KHz
Low battery indicate: 3.5+-0.2V
Battery type: 3.7V 1,000mAh lithium battery
Dimension(LxWxD): 8.0 x 1.8 x 1.3 inches / 203 x 45 x 33mm

REMOTE UNIT

Compatible connectors: RJ45, BNC
Remote: 4 pcs
Dimension (LxWxD): 4.2 x 1.2 x 0.9 inches / 107 x 30 x 24mm

NOYAFA NF-858C Instruction

[{"id":50819272442131,"title":"NF-858C","option1":"NF-858C","option2":null,"option3":null,"sku":"NF-858C-1","requires_shipping":true,"taxable":false,"featured_image":{"id":49127410598163,"product_id":8920936546579,"position":1,"created_at":"2025-04-01T18:44:50-07:00","updated_at":"2025-04-01T18:45:01-07:00","alt":null,"width":750,"height":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/NOYAFA_NF-858C_Multifunction_Wire_and_Cable_Tracer_Tester_-_official.jpg?v=1743558301","variant_ids":[50819272442131]},"available":true,"name":"NOYAFA NF-858C Multifunction Wire and Cable Tracer \u0026 Tester. Find and Test Network, BNC Coaxial, and Even Fiber Cables - NF-858C","public_title":"NF-858C","options":["NF-858C"],"price":10989,"weight":700,"compare_at_price":13898,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":40935534526739,"position":1,"preview_image":{"aspect_ratio":0.75,"height":1000,"width":750,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/NOYAFA_NF-858C_Multifunction_Wire_and_Cable_Tracer_Tester_-_official.jpg?v=1743558301"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":50819967418643,"title":"2 Units × $69 Only!","option1":"2 Units × $69 Only!","option2":null,"option3":null,"sku":"NF-858C 2PCS","requires_shipping":true,"taxable":false,"featured_image":{"id":49129448702227,"product_id":8920936546579,"position":8,"created_at":"2025-04-02T00:25:41-07:00","updated_at":"2025-04-02T00:25:42-07:00","alt":null,"width":750,"height":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/Noyafa_NF-858C_2pcs_discount.jpg?v=1743578742","variant_ids":[50819967418643]},"available":true,"name":"NOYAFA NF-858C Multifunction Wire and Cable Tracer \u0026 Tester. Find and Test Network, BNC Coaxial, and Even Fiber Cables - 2 Units × $69 Only!","public_title":"2 Units × $69 Only!","options":["2 Units × $69 Only!"],"price":13998,"weight":700,"compare_at_price":27796,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":40936747270419,"position":9,"preview_image":{"aspect_ratio":0.75,"height":1000,"width":750,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/Noyafa_NF-858C_2pcs_discount.jpg?v=1743578742"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":50819272474899,"title":"NF-859GT Ethernet \u0026 Fiber Multi Cable Tester \u0026 Toner","option1":"NF-859GT Ethernet \u0026 Fiber Multi Cable Tester \u0026 Toner","option2":null,"option3":null,"sku":"NF-8508","requires_shipping":true,"taxable":false,"featured_image":{"id":49127426588947,"product_id":8920936546579,"position":9,"created_at":"2025-04-01T18:48:21-07:00","updated_at":"2025-08-12T00:27:45-07:00","alt":null,"width":750,"height":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/NOYAFA_NF-859GT_Ethernet_Fiber_Multi_Cable_Tester_-_official_358746c0-ce4d-4367-b734-54361ad6513a.jpg?v=1754983665","variant_ids":[50819272474899]},"available":true,"name":"NOYAFA NF-858C Multifunction Wire and Cable Tracer \u0026 Tester. Find and Test Network, BNC Coaxial, and Even Fiber Cables - NF-859GT Ethernet \u0026 Fiber Multi Cable Tester \u0026 Toner","public_title":"NF-859GT Ethernet \u0026 Fiber Multi Cable Tester \u0026 Toner","options":["NF-859GT Ethernet \u0026 Fiber Multi Cable Tester \u0026 Toner"],"price":12599,"weight":700,"compare_at_price":14999,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":40935547797779,"position":10,"preview_image":{"aspect_ratio":0.75,"height":1000,"width":750,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/NOYAFA_NF-859GT_Ethernet_Fiber_Multi_Cable_Tester_-_official_358746c0-ce4d-4367-b734-54361ad6513a.jpg?v=1754983665"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":52649106506003,"title":"[Pre-Sale] NF-IPC728HSO CCTV \u0026 Cable Tester","option1":"[Pre-Sale] NF-IPC728HSO CCTV \u0026 Cable Tester","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":false,"featured_image":{"id":51341063913747,"product_id":8920936546579,"position":10,"created_at":"2025-10-21T01:03:57-07:00","updated_at":"2025-11-05T23:29:46-08:00","alt":null,"width":750,"height":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/Noyafa_NF-728_CCTV_Tester_-_Official.jpg?v=1762414186","variant_ids":[52649106506003]},"available":true,"name":"NOYAFA NF-858C Multifunction Wire and Cable Tracer \u0026 Tester. Find and Test Network, BNC Coaxial, and Even Fiber Cables - [Pre-Sale] NF-IPC728HSO CCTV \u0026 Cable Tester","public_title":"[Pre-Sale] NF-IPC728HSO CCTV \u0026 Cable Tester","options":["[Pre-Sale] NF-IPC728HSO CCTV \u0026 Cable Tester"],"price":29999,"weight":700,"compare_at_price":35999,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":42480463249683,"position":11,"preview_image":{"aspect_ratio":0.75,"height":1000,"width":750,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/Noyafa_NF-728_CCTV_Tester_-_Official.jpg?v=1762414186"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

{"id":50819272442131,"title":"NF-858C","option1":"NF-858C","option2":null,"option3":null,"sku":"NF-858C-1","requires_shipping":true,"taxable":false,"featured_image":{"id":49127410598163,"product_id":8920936546579,"position":1,"created_at":"2025-04-01T18:44:50-07:00","updated_at":"2025-04-01T18:45:01-07:00","alt":null,"width":750,"height":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/NOYAFA_NF-858C_Multifunction_Wire_and_Cable_Tracer_Tester_-_official.jpg?v=1743558301","variant_ids":[50819272442131]},"available":true,"name":"NOYAFA NF-858C Multifunction Wire and Cable Tracer \u0026 Tester. Find and Test Network, BNC Coaxial, and Even Fiber Cables - NF-858C","public_title":"NF-858C","options":["NF-858C"],"price":10989,"weight":700,"compare_at_price":13898,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":40935534526739,"position":1,"preview_image":{"aspect_ratio":0.75,"height":1000,"width":750,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/NOYAFA_NF-858C_Multifunction_Wire_and_Cable_Tracer_Tester_-_official.jpg?v=1743558301"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

NF-858C

Network & Cable Tester Combo

Test both Ethernet and cables status. Give you the most detailed information of your home network and cables.

NF-858C Cable Tester Tracer General Intro

RJ45 Cable Test

Insert a RJ45 cable and run the CONT mode. The wire map will be available in 3 seconds. Easily tell if there's open, short, or crossing in the cable.

RJ11 Tester

Connect a RJ11 cable to NF-858C via the included RJ11-to-BNC adapter. Identify the continuity and status of your home telephone network.

Coax Test

Compatible with all network cables, NF-858C test the continuity of coaxial cables too.

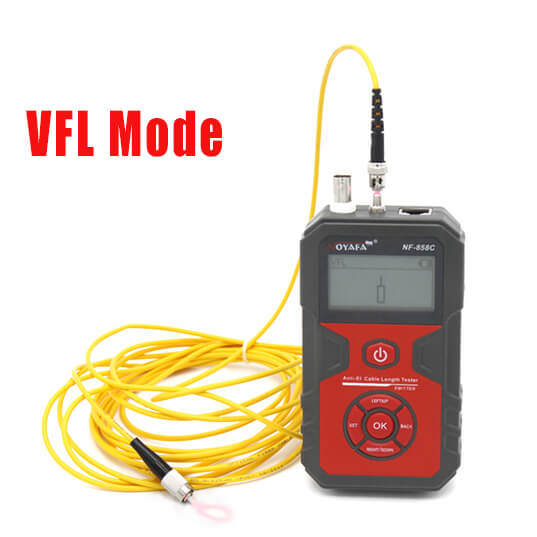

Visual Fault Locator

Insert the fiber optic cable and activate VFL on NF-858C. The red light will tell you the exact location of the breakpoint.

Length Meter for Network Cables

Tell the length of network cables like RJ11, RJ45, and coaxial cables. Display location of fault point as well.

Ethernet Tester

Connect NF-858C to the Ethernet Switch. All information like network standard, power supply, and polarity will be displayed.

Wiring Path

Trace a RJ45 or Coax cable even if it's live and attached to a Ethernet port or wall outlet.

Tone Tracer

Touch the probe to cables or ports. Hear beeping, the cable is there!

Test Multiple Cables

To test cables mounted on a Switch, use the 4 remotes. Save time for checking multiple cables that go to different rooms.

Compare the NF-858C, NF-859GT, and NF-IPC728

NF-858C

RJ45+ BNC Testing

✔️ Copper Cable (RJ45+RJ11)

❌ Fiber Optic (850-1625nm)

✔️ VFL

✔️ OPM

❌ TDR

✔️ PoE Checking

❌ Video Testing

❌ PING

✔️ Port flash

✔️ Cable tracing

✔️ Crimping quality

✔️LCD display

✔️Lithium battery (Type-C charging)

Buy Now

NF-859GT

Ethernet + Fiber Optic Comprehensive Testing

✔️ Copper Cable (RJ45/RJ11)

✔️ Fiber Optic (850-1625nm)

✔️ VFL

✔️ OPM

❌ TDR

✔️ PoE Checking

❌ Video Testing

✔️ PING

✔️ Port flash

✔️ Cable tracing

✔️ Crimping quality

✔️LCD display(320*240)

✔️Lithium battery (Type-C charging)

Buy Now

NF-IPC728

Ethernet Comprehensive Testing + Security Camera (IPC) Installation & Maintenance

✔️ Network IP Camera (RJ45)

✔️ Coaxial Cable (BNC)

✔️ Optic Power Meter

✔️ TDR

✔️ PoE Checking

✔️ Video Testing

✔️ PING

✔️ Port flash

✔️ Cable tracing

✔️ Crimping quality

✔️8'' IPS touch screen, 1920x1200 resolution

✔️13,200mAh Lithium battery

Buy Now
