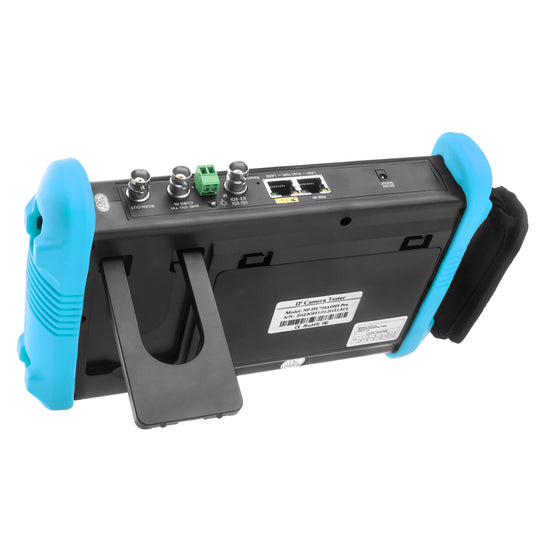

NF-716ADHS Security Camera Tester Back Display
NF-716ADHS Security Camera Tester Ports and Cords
NF-716ADHS IPC Tester Product Display
NOYAFA NF-716ADHS All-in-one IPC CCTV Camera Tester

NOYAFA NF-716ADHS All-in-one IPC CCTV Camera Tester

Regular price $338.00 Sale price$318.00
/
Shipping calculated at checkout.

  • 30-Days Money Back Guarantee
  • In stock, Fast Free Shipping

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Features & Benefits

  • 7-inch Retina touch screen, 1920*1200 resolution.
  • 8MP CVI/ TVI/ AHD, 8MP EX-SDI, HD-SDI, 3G-SDI*.
  • H.265/H.264, 4K video display via mainstream.
  • Dahua, Hikvision, Axis etc ONVIF camera test.
  • Built-in WIFI, create WIFI hotspot.
  • HDMI input & output, support 1080p.
  • DC12V 3A, DC48V PoE power output, max power 25.5W.
  • Rapid ONVIF, auto view video and create a testing report.
  • UTP cable tester/RJ45 cable TDR test, cable quality test.
  • Tester Play: Tester, mobile phone, and PC display at the same time.
  • Certification. Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.
  • 100% Affordable. It is manufactured in China and is a lot cheaper than competitor products with similar quality.

    Model: NF-716
    IP Camera Test(4K/H.265/H.264): Yes
    IP&CVBS Test: Yes
    NTSC/PAL: Auto adapt
    PTZ control, RS485 control, Baud 600-115200bps
    UTP Cable Test: Yes
    RJ45 Cable TDR Test: Yes
    Network Test: Yes
    Data Monitor: Yes
    PoE Test: Yes
    TesterPlay: Yes
    CVBS Loop Test: Yes
    Coaxial HD Test: Yes
    HDMI Input: Yes
    Display: 7-inch touch screen
    Zoom Image: Yes
    Analog Video Out: Yes
    Wi-Fi: Yes
    Audio test: Yes
    Power Output: 48V PoE power output, max power 24W
    DC12V Power: DC12V 3A power output
    External Power supply : DC 12V 2A
    Charging Time: 5-6 hours
    Working Time: 16 hours
    Power Supply: Built-in 7.6V Lithium polymer battery, 7800mAh

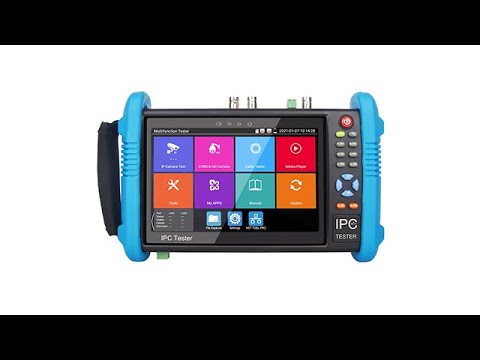

    NOYAFA NF716ADHS Unboxing

    NF-716ADHS All-in-one CCTV tester

    The 7 inch Retina touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other securityequipment.

    Test Over Coaxial Cables

    Snapshot, video record and playback, zoom, camera OSD menu control over coaxial cable.

    4K HDMI Input

    HDMI input & output, support 1080p, 4K

    Dual Gigabit Ethernet Ports

    UTP cable tester/RJ45 cable TDR test, cable quality test.

    RJ45 Cable Diagram

    Diagram of the cable sequence. Connection diagram. Create reports.
