Name: NOYAFA NF-IPC722ATCHS IPC Tester for 720P, 1080P, 4K HD Security Cameras
Brand: NOYAFA (HK) TECHNOLOGY CO., LIMITED
SKU: NF-IPC722ATCHS
Price: 282.69 USD
Availability: InStock

NOYAFA NF-IPC722ATCHS IPC Tester for 720P, 1080P, 4K HD Security Cameras

$282.69 USD

Shipping calculated at checkout.

Compare NF-IPC722 and NF-IPC722ATCHS

Beware of low-priced refurbished devices. Buy official.

30-Days Money Back Guarantee

In Stock, Fast Free Shipping

Quantity

Buy more and save more

BUY OVER $300 USD for 10% OFF: Copy code BF300TEN
BUY OVER $600 USD for 15% OFF: Copy code BF600ELV
BUY OVER $1,000 USD for 20% OFF: Copy code BF1KTEW

Features & Benefits:

IPC test: Check the IP address, name, protocols, PING, speed, and other information of a surveillance camera.
CCTV monitor: Sync captured images on the tester screen without delay. One-click to playback, record, snap, stop, and zoom in/out the frames.
Camera setup: Change IP address, video and image settings (brightness, contrast, resolution, frame rate, bitrate, encoder, etc), time, storage, streams, and more.
Universal compatibility: Supports 4K H.265 IP camera tests, 30+ ONVIF & CVBS protocols like HIKVISION, Pelco-D/P, Samsung, and Panasonic, HD camera tests like TVI, CVI, and AHD, etc.

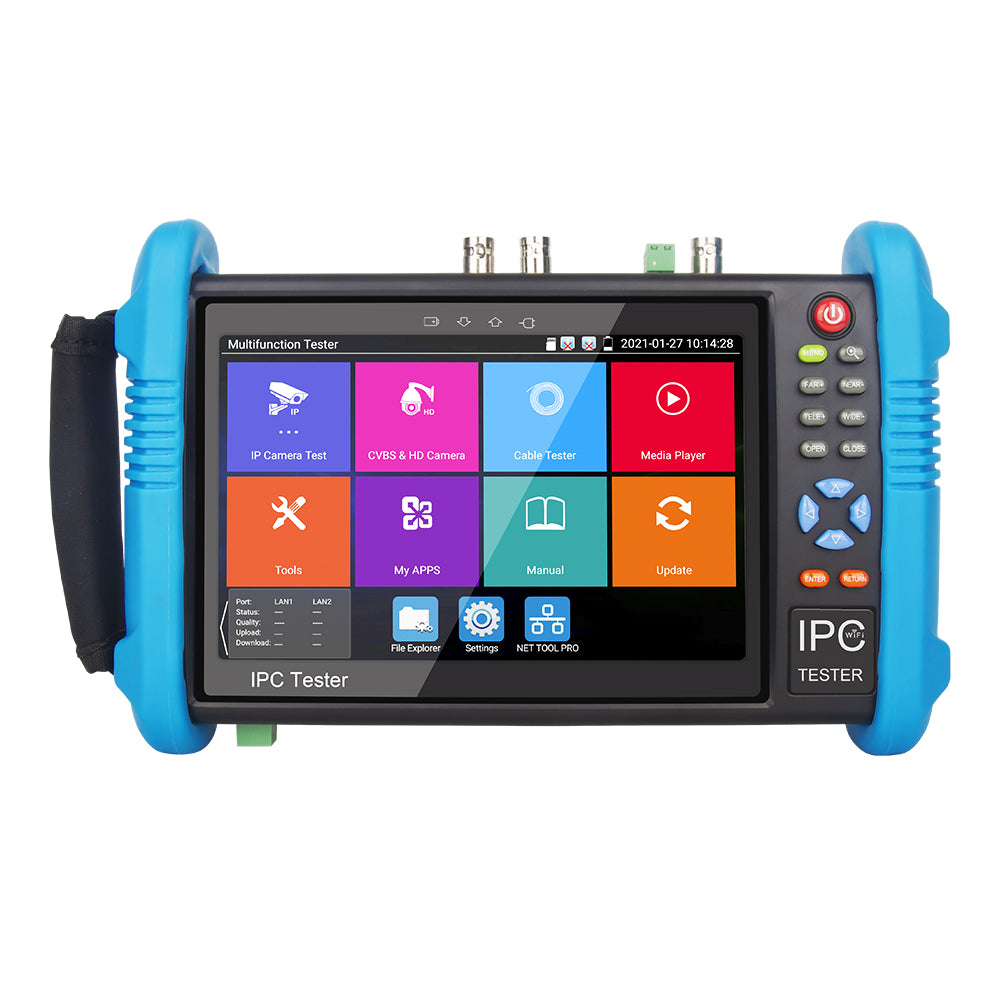

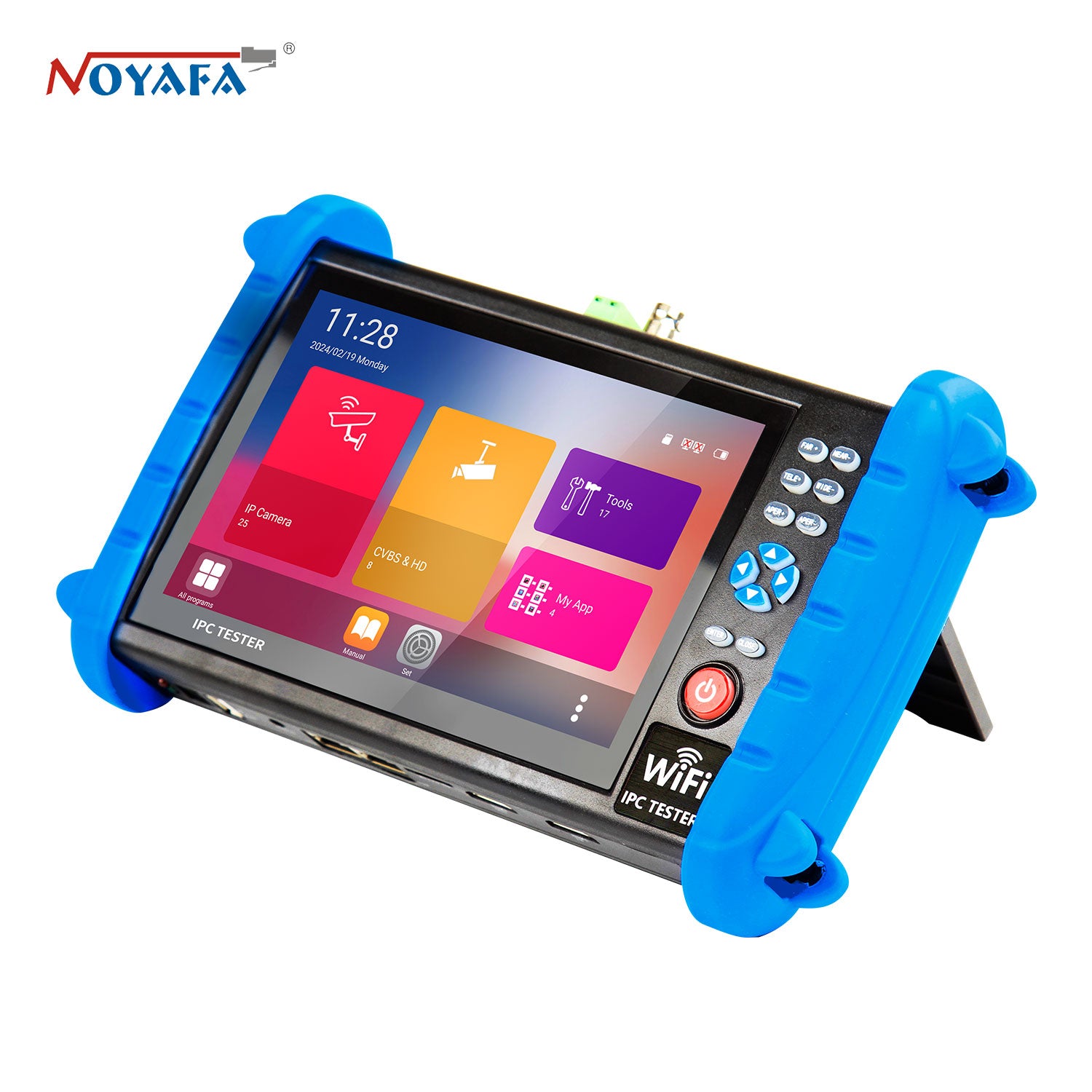

Touch Screen + Buttons: Installed with a 7-in LCD touch screen, this IPC tester is like a portable tablet.
3 power output: DC 5V, 12V & 24V to power on various cameras. We can plug out the cable of a camera and connect it to this tester. It will run the camera like usual.
Various jacks for multiple inputs: It has LAN (RJ45), CVBS (Coaxial), SDI, a red light source, fiber optic (optical power meter), PSE, RS485, and HDMI ports.
IP camera tester with PoE: Connect a camera to this tester via the PoE port. Run the PoE feature. You know which pair of cables is providing power and the exact voltage.
Cable tests: Connect the Lan cable or fiber optic cable to run a continuity test or TDR measure to see if the cable still works and its performance.

Model: NF-IPC722 & NF-IPC722ATCHS
Touch Screen: 7 inch G+ G structure capacitance screen
LCD Screen: 7 inch resolution 1920x1200 IPS HD full view
Ethernet Port: 10/100/1000M adaptive
WIFI: Built-in wireless WIFI, speed 150M
IP Camera Test: 4K H.265 IP camera test, video image real-time display without delay, support video snapshot, recording and playback
ONVIF: ONVIF tool, support DAHUA, HIKVISION, ACTI, SAMSUNG and other more than 30 manufacturer private protocols and customized, support camera mobile client installation
PTZ Control: Support Pelco-D/P, Samsung, Panasonic, etc. more than 30 protocols
CVBS Analog Camera Test: 1 channel CVBS analog signal input, support PAL/NTSC format adaptation
HD Camera Test: Support HD TVI 8MP, CVI 8MP, AHD SMP, EX-SDI 8MP (Excluded on IPC722; only available on IPC722ADCHS)
Video Image Zoom: Real-time enlarge moving HD video image, max enlarge 8 times
Cable Test: Built-in cable testing tool, check cable sequences and breakpoints, etc
Audio Test: One channel audio signal input for testing, can be recorded and saved
Optical Power Meter: Test optical fiber parameters
DC12V Power Output: DC12V power output, max current 3A, provide temporary power for cameras
DC24V Power Output: DC24V power output, max current 1A, provide temporary power for cameras
PoE Power Output: 48V standard PoE output, provide PoE power for cameras
DC5V Power Output: Provide temporary power for USB-powered cameras or emergency power for mobile phones, max current 2A
PSE Voltage Test: Display PoE power supply device voltage and circuit condition
HDMI Video Input Test: Input HD video image into instrument to test video recorder; IPC722ATCHS supports up to 4K 30FPS and IPC722 supports only HD only.
RS485 Serial Port tool: Can send or receive any data or hex data
Power Charger: DC 12V/2A
Battery: Built-in 7.4V polymer lithium battery, capacity 7000mAh, can work continually for 8-10 hours
Language: Chinese Simplified, Chinese Traditional, English, Germany, Spanish, Portuguese, Russian, French, Polish, Korean, Japanese, Turkish and Italian 13 languages
Internal SD Storage: 8G
Working Temperature: -10℃ - 50℃
Working Humidity: 30%-90%
External Size: 23emx14emx4.5em
Weight: 0.9kg

NOYAFA NF-IPC722 & IPC722ATCHS user manual

Compare NF-IPC722 and NF-IPC722ATCHS

NF-IPC722

7'' 1920*1200 Retina Touch Screen

AHD 8MP ❌
CVI 8MP ❌
TVI 8MP ❌
EX-SDI 8MP ❌

Network Module:
Dual 1000M Port ✔️
10M/100M/1000M Network Port ✔️
150M WiFi Speed ✔️
2.4G ✔️
WiFi Hot Spot ✔️
WiFi Analyzer ✔️

IP Camera Test:
4K ✔️
H.265 Decode ✔️
IPC one click test ✔️
Smart IPC ✔️
32 Channel Preview ✔️
Activate Hikvision ✔️
ONVIF Testing Report ✔️
Cross-segment Testing ✔️
ONVIF Audio Test ✔️
Wide Dynamic Test ✔️
Change Channel Name ✔️
Face ID ✔️

Network Testing:
Channel Monitor ✔️
Advanced Channel Monitor ✔️

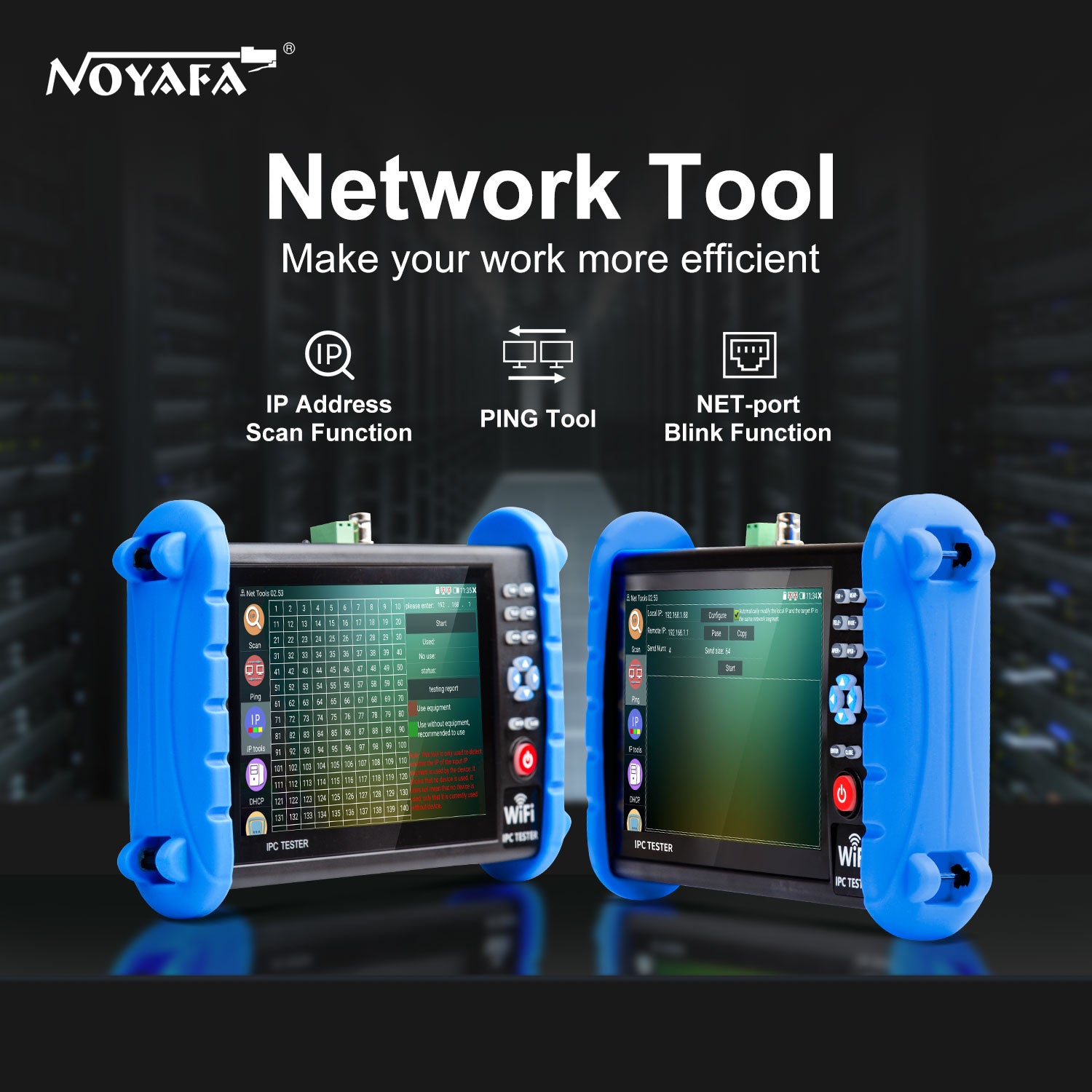

Network Tools ✔️
PING ✔️
IP Scan ✔️
IP Conflict Test ✔️
Mac Address Scan ✔️
Band Test ✔️
Port Flash ✔️
DHCP ✔️
Router Trace ✔️
Link Detection ✔️
PPPOE ✔️
Fast IP Detection ✔️
Focal Length Calculator ✔️
Network Calculator ✔️
Virtual IPC ✔️
Self Contract ✔️
Self Contract Audio Test ✔️
RTSP Player ✔️
Network Status ✔️

Focus Information and Lens Simulation:
Focus Inf ✔️
Video Transfer Quality Test ✔️
Picture Quality Test ✔️
Lens Simulation ✔️

Analog Camera Test:
PAL/NTSC Video Signal Test ✔️
Analog Video Test ✔️
Cloud Platform RS485 ✔️
Video Screenshot, Video Playback ✔️
Color Image Generator ✔️
BNC Loop Test ✔️

Network Testing:
Sequence ✔️
Wiremap ✔️
TDR Testing ✔️
Cable Quality Test ✔️
1000M Communication Quality Test ✔️

HDMI Testing:
HDMI Input 1080P ✔️
HDMI Input 4K30 ❌
HDMI Output 1080P/4K30/4K60 ✔️

Power Supply Testing:
PoE 48V 30W ✔️
PoE, PSE Voltage Measurement ✔️
DC 12V 3A Output ✔️
DC 12V Input Voltage and Watt Measurement ✔️
12V Load Testing ✔️
24V/2A Output ✔️

USB:

USB Read ✔️
USB 5V Output ✔️

Audio Testing:
Audio Input, Record ✔️
Audio Output ✔️

Other Functions:
Backlight ✔️
Touch Screen ✔️
Micro Phone ✔️
LED Torch ✔️

NF-IPC722ATCHS

7'' 1920*1200 Retina Touch Screen

AHD 8MP ✔️
CVI 8MP ✔️
TVI 8MP ✔️
EX-SDI 8MP ✔️

Network Module:
Dual 1000M Port ✔️
10M/100M/1000M Network Port ✔️
150M WiFi Speed ✔️
2.4G ✔️
WiFi Hot Spot ✔️
WiFi Analyzer ✔️

Focus Information and Lens Simulation:
Focus Inf ✔️
Video Transfer Quality Test ✔️
Picture Quality Test ✔️
Lens Simulation ✔️

Analog Camera Test:
PAL/NTSC Video Signal Test ✔️
Analog Video Test ✔️
Cloud Platform RS485 ✔️
Video Screenshot, Video Playback ✔️
Color Image Generator ✔️
BNC Loop Test ✔️

Network Testing:
Sequence ✔️
Wiremap ✔️
TDR Testing ✔️
Cable Quality Test ✔️
1000M Communication Quality Test ✔️

HDMI Testing:
HDMI Input 1080P ✔️
HDMI Input 4K30 ✔️
HDMI Output 1080P/4K30/4K60 ✔️

Power Supply Testing:
PoE 48V 30W ✔️
PoE, PSE Voltage Measurement ✔️
DC 12V 3A Output ✔️
DC 12V Input Voltage and Watt Measurement ✔️
12V Load Testing ✔️
24V/2A Output ✔️

USB:

USB Read ✔️
USB 5V Output ✔️

Audio Testing:
Audio Input, Record ✔️
Audio Output ✔️

Other Functions:
Backlight ✔️
Touch Screen ✔️
Micro Phone ✔️
LED Torch ✔️
