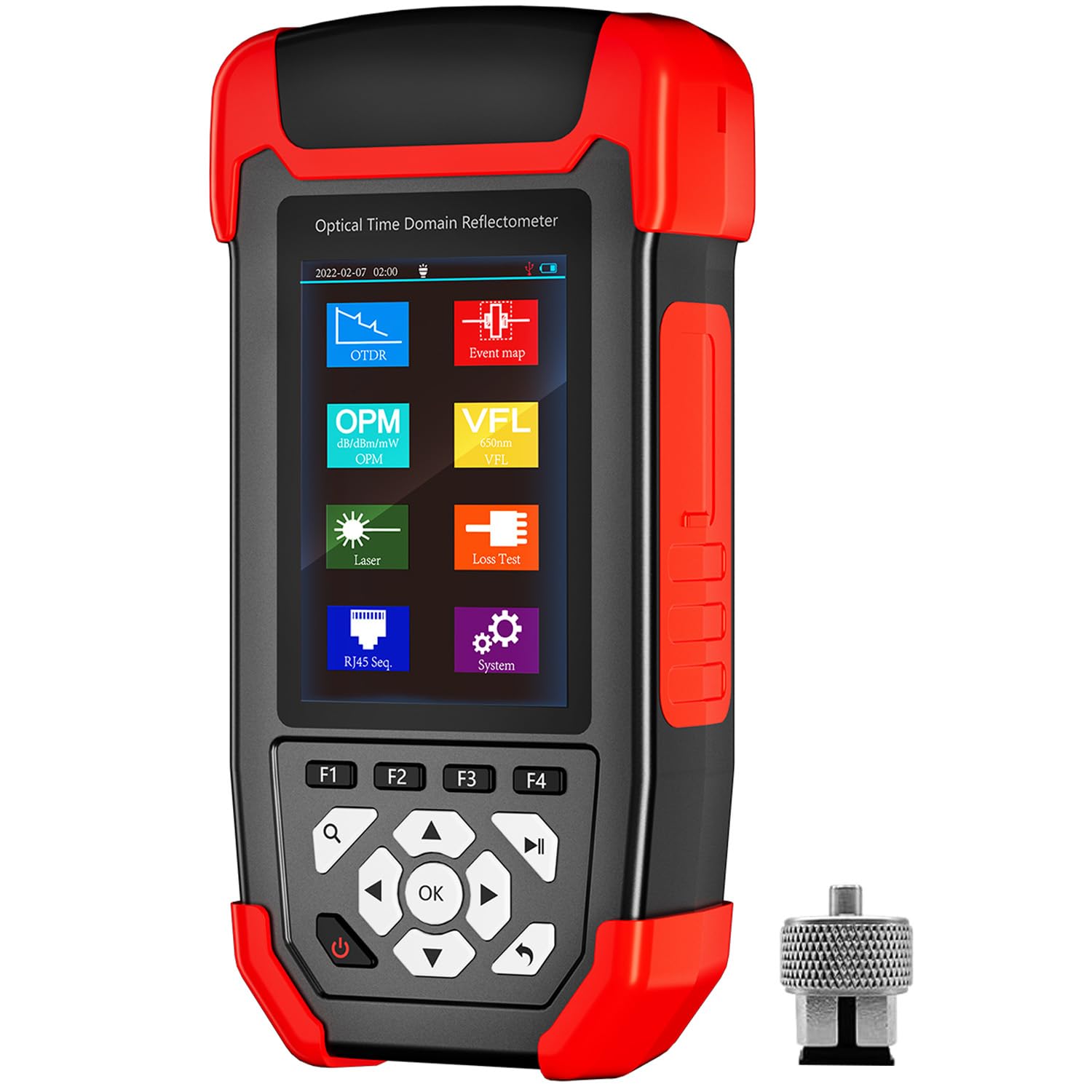

Name: Noyafa NF-981 OTDR Fiber Tester con localizador de fallas visuales y medidor de potencia óptica
Brand: NOYAFA 2.0
SKU: NF-981
Price: 213.11 USD
Availability: InStock

Noyafa NF-981 OTDR Fiber Tester con localizador de fallas visuales y medidor de potencia óptica

$213.11 USD

Los gastos de envío se calculan en la pantalla de pagos.

30 Day Money Back Guarantee

In Stock, Fast Free Shipping

Cantidad

Características y beneficios:

OTDR - Modo único OTDR 22/20DB, rango de prueba 80 kilómetros, SC/PC o FC/PC Interfaz óptica
Análisis inteligente del enlace óptico - El software OTDR puede proporcionar informes de prueba detallados (evento reflexivo, evento reducir el evento, divisor de fibra, final de fibra)

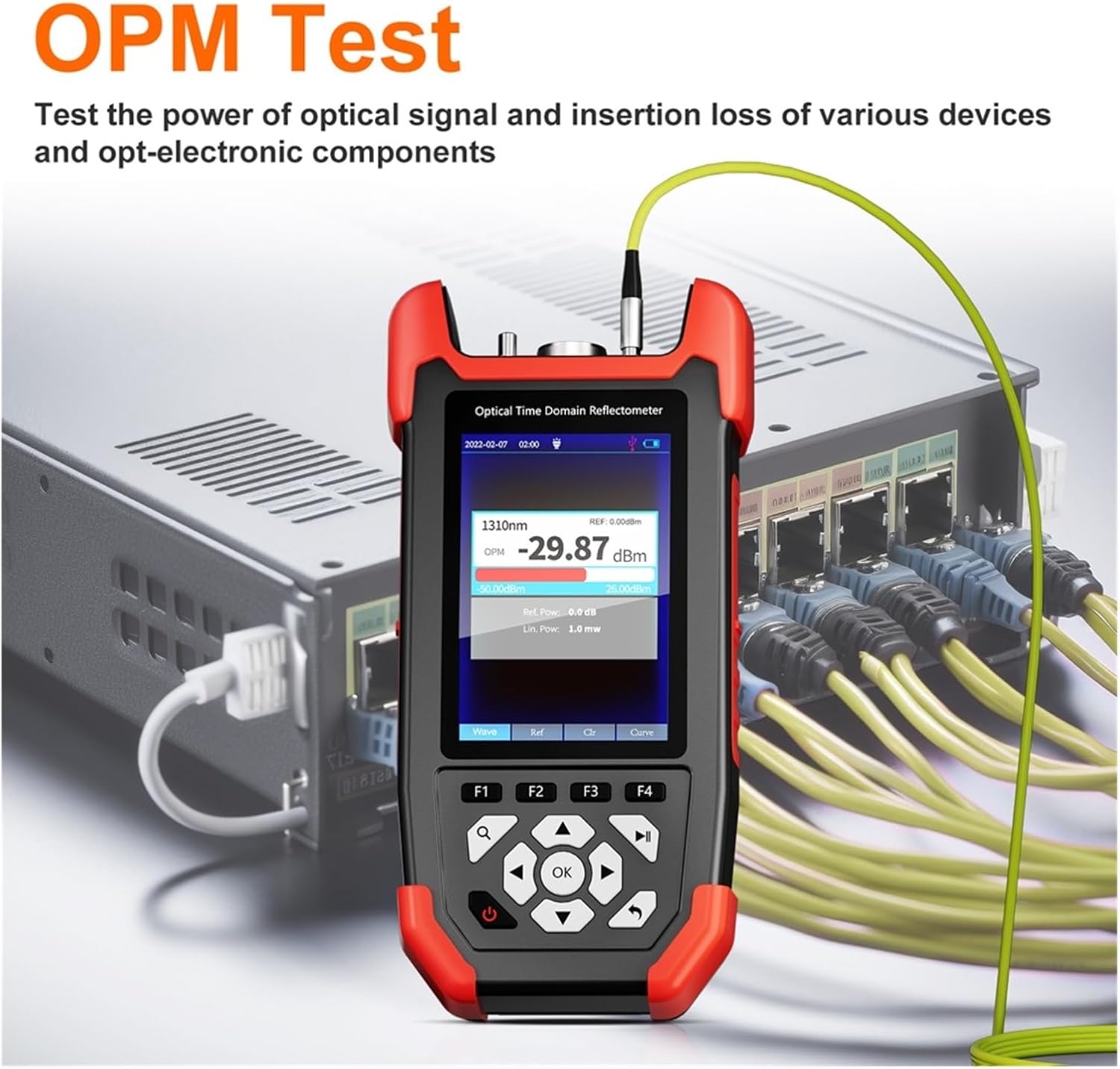

OPM - Rango de prueba de potencia óptica -50 ~+26dbm, seis calibración de longitud de onda

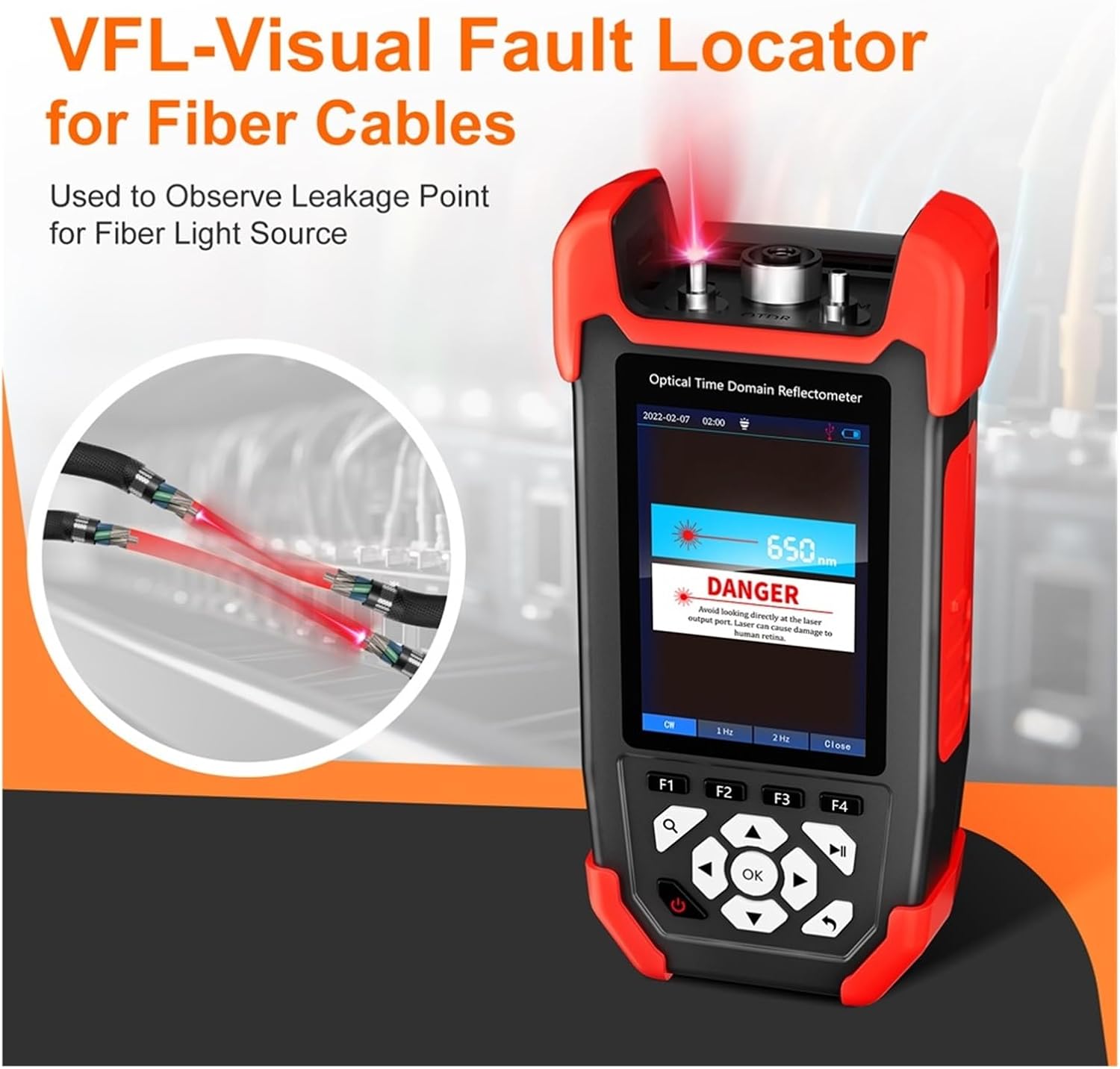

VFL - Potencia de salida de luz roja 10MW

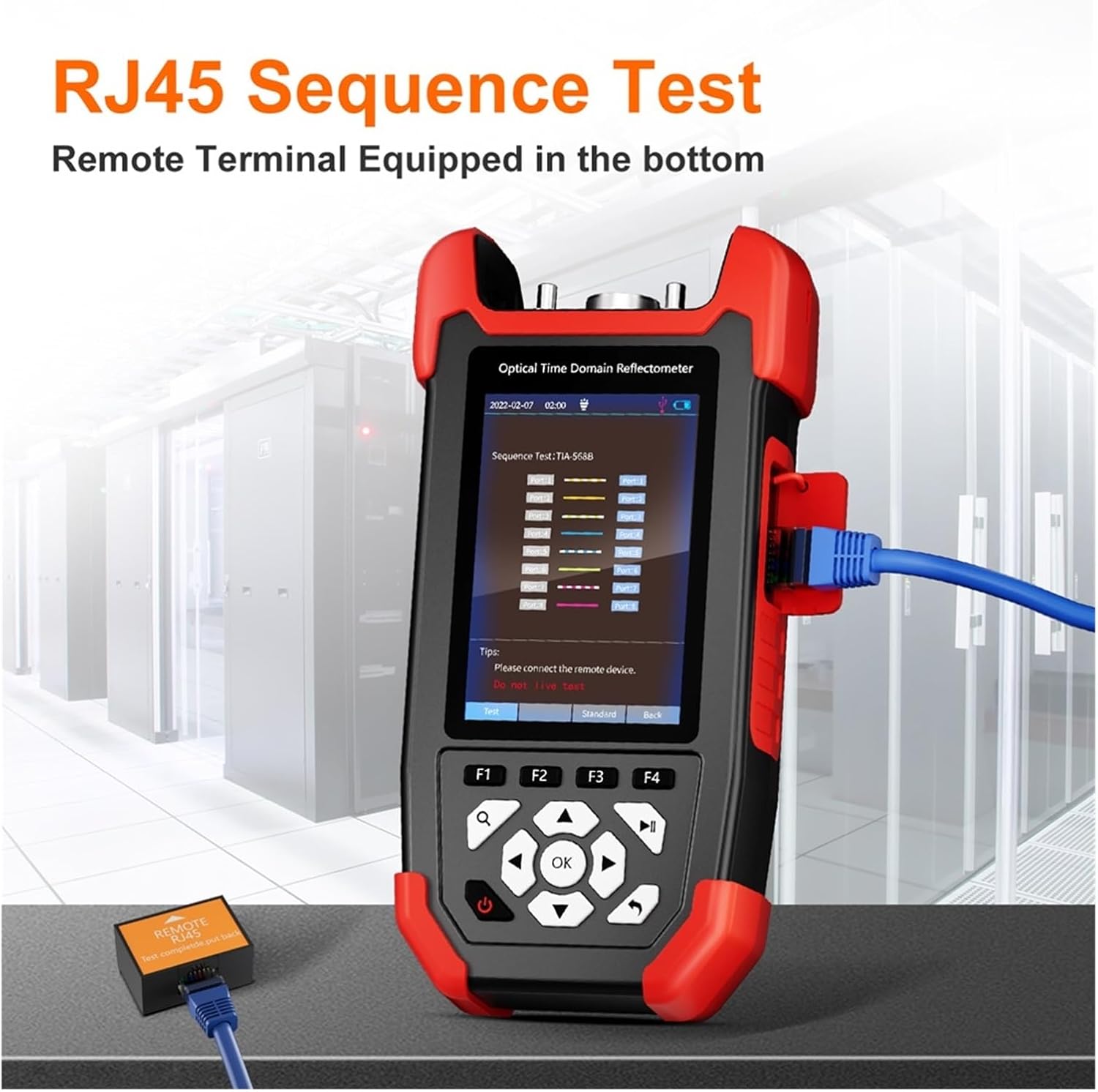

Mapeo de alambre - Prueba las fallas de los cortocircuitos, los circuitos abiertos y se cruzan en los cables LAN.

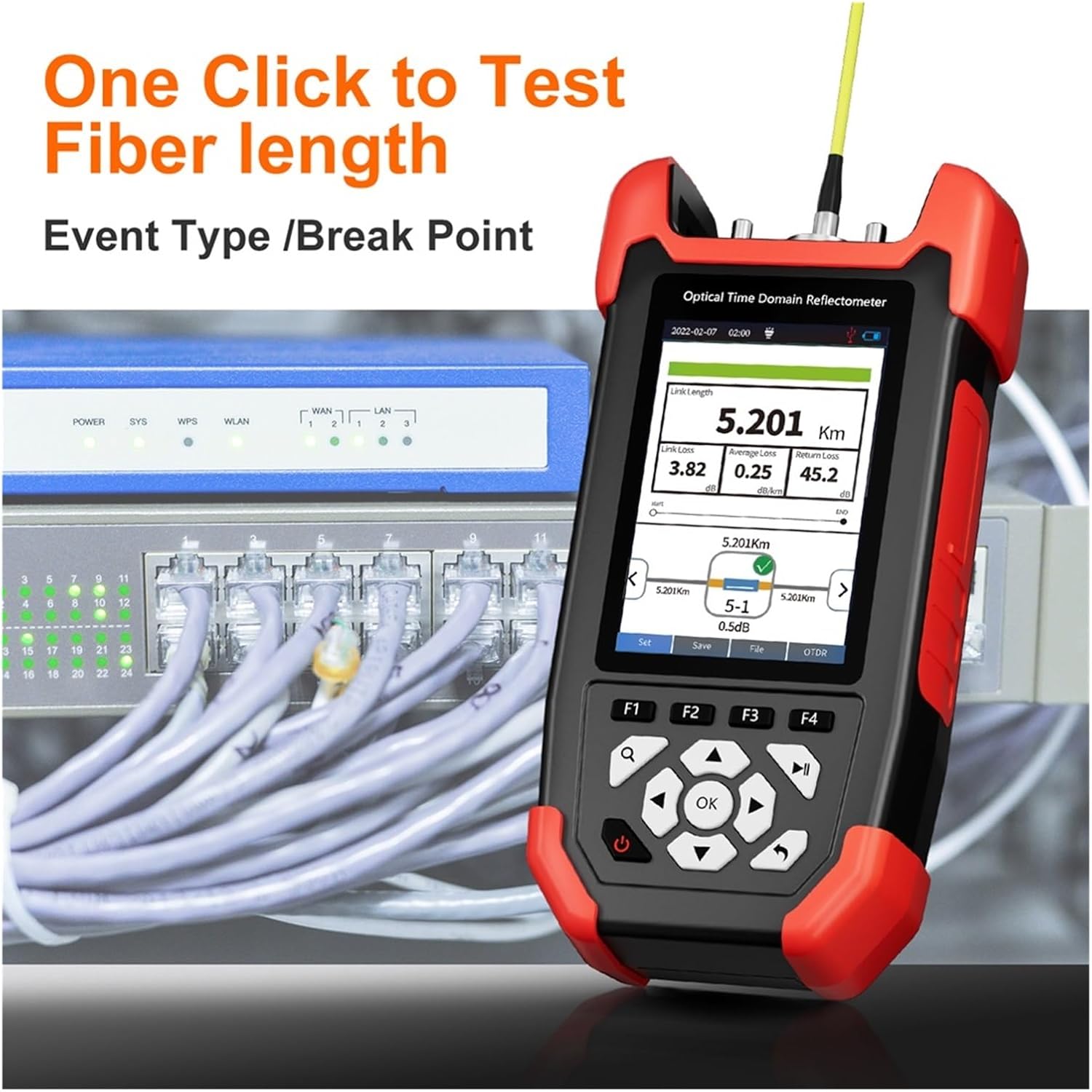

Prueba de longitud - Mide la longitud hasta 1-600m
Lámpara - Proporciona una fuente de luz confiable en entornos de trabajo tenuees
Batería recargable - El tiempo de espera de la batería es mayor que las 11 h, probado aproximadamente 6 h, capacidad de la batería de 4000 mAh, cargando micro USB 5V/2A

OTDR

Wavelength: 1310/1550nm
Fiber Type: G.652 SM Fiber
Dynamic Range: 24dB/22dB
Event Blind Zone : 10m
ATT Blind Zone: 15m
Test Range: 10m-60km
Pulse Width: 5ns-10us
Ranging Accuracy: ±(1m+Sampling Interval+0.005%xTest Distance)
Loss Accuracy: ± 0.2dB/dB
Sampling Points: 16k-128k
Sampling Resolution: 0.05~8m
Reflection Accuracy: ±3dB
Data Storage: Internal: 2600: External: TF Card
Laser Safety Level: Class Il level
File Format: SOR Standard File Format
Connector: FC/PC (Interchangeable SC、ST)or FC/APC (Interchangeable SC, ST)

OPM

Wave Range: 800nm-1700nm
Interface Type: Universal Joint FC/SC/ST
Test Range: -50dBm~+26dBm
Uncertainty:+5%
Frequency Identification: CW/270/330/1k/2kHz
Calibration Wavelength: 850/1270/1300/1310/1490/1550/1577/1625nm

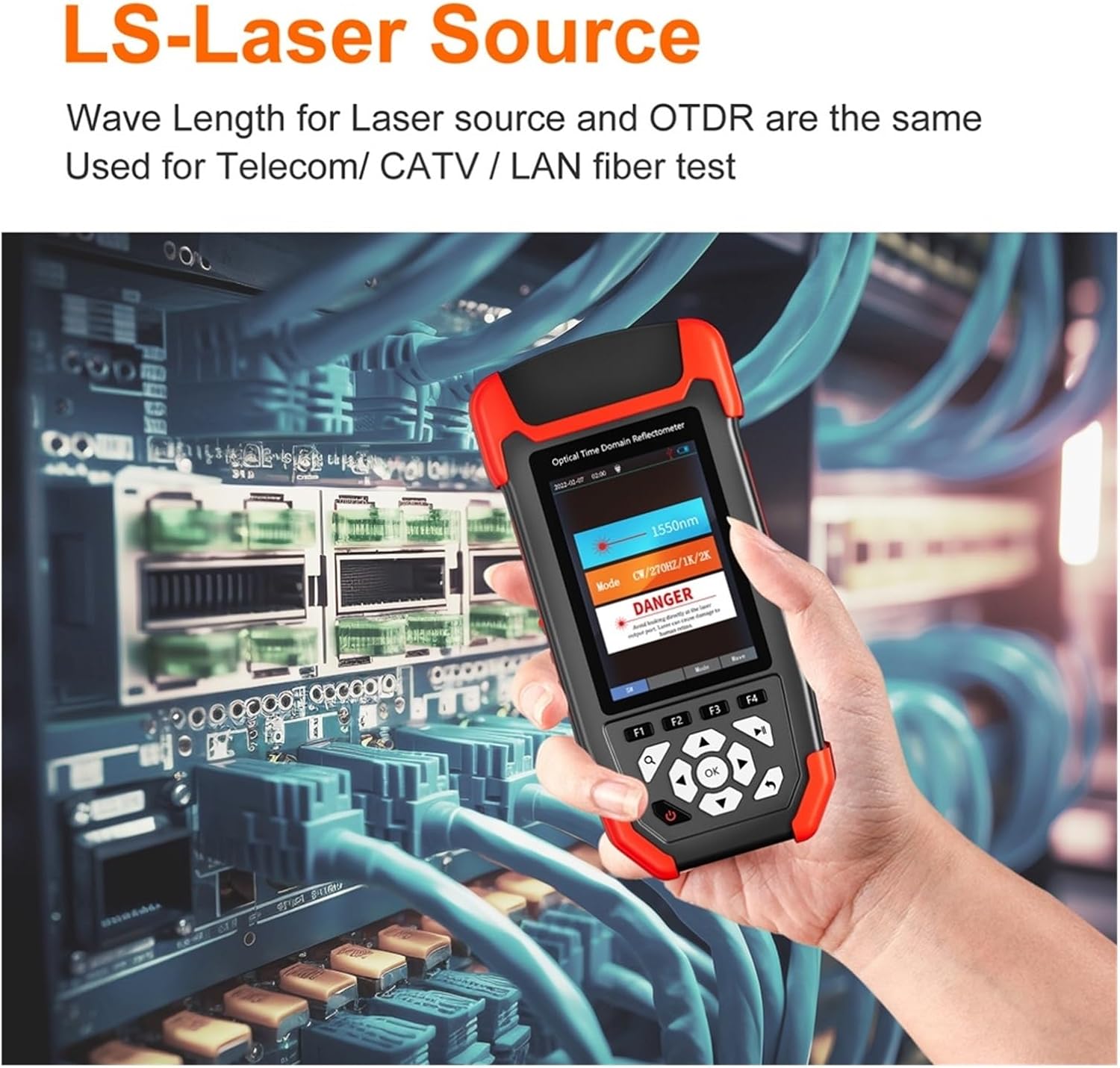

LD Type: FPLD
Output Wavelength: 1310/1550nm
Output Power: 2-5dBm
Modulation Frequency: 270/330/1k/2kHz
Stability: CW,+0.5dB/15min (Test after15mins of preheating)
Connector: FC/PC (Interchangeable SCST) or FC/APC (lnterchangeable SC,ST)

VFL

Work Wavelength: 650nm土20nm
Output Power: 10mW
Mode: CW/1Hz/2Hz
Connector: FCISC/ST

Other Parameters

Dispaly: 3.5 inch Color LCD
Data Interface: Micro USB
External Storage: TF Card
Power Supply: Polymer Li-battery 3.7V, 4000mAh
Power Adapter: 5VDC, 2A
Battery Life: Standby>20h;
Measuring Time: >12h
Operating Temperature: -10°C~+50°C
Storage Temperature: -40°C~+70°C
Relative Humidity: 0~95%
Non Condensing Dimension: 173mmx82mmx37mm
Weight: ≤350g

NF-981 Fiber Tester with OTDR Meter User Manual

Compact, performant and reliable

Excellent value for money

NOYAFA NF-981 OTDR Fiber Tester with Visual Fault Locator & Optical Power Meter

Great cost effective device

Perfect

Absolutely perfect … I buy another 2 tester of Noyafa and I like so much

The OTDR tester worked flawlessly

The initial setup and calibration took a bit of time, but once everything was configured, the device worked flawlessly. It provides highly accurate readings, whether I'm measuring fiber lengths, identifying faults, or checking optical power. The detailed reports generated by the OTDR function are particularly useful for documenting network performance.
