Precio habitual $244.04 USD Precio de oferta$225.00 USD
/
Los gastos de envío se calculan en la pantalla de pagos.

Beware of low-priced refurbished devices. Buy official.
  • 30 Day Money Back Guarantee
  • In Stock, Fast Free Shipping
Buy more and save more
  • BUY OVER $300 USD for 10% OFF: Copy code BF300TEN
  • BUY OVER $600 USD for 15% OFF: Copy code BF600ELV
  • BUY OVER $1,000 USD for 20% OFF: Copy code BF1KTEW

Este sitio está protegido por hCaptcha y se aplican la Política de privacidad de hCaptcha y los Términos del servicio.

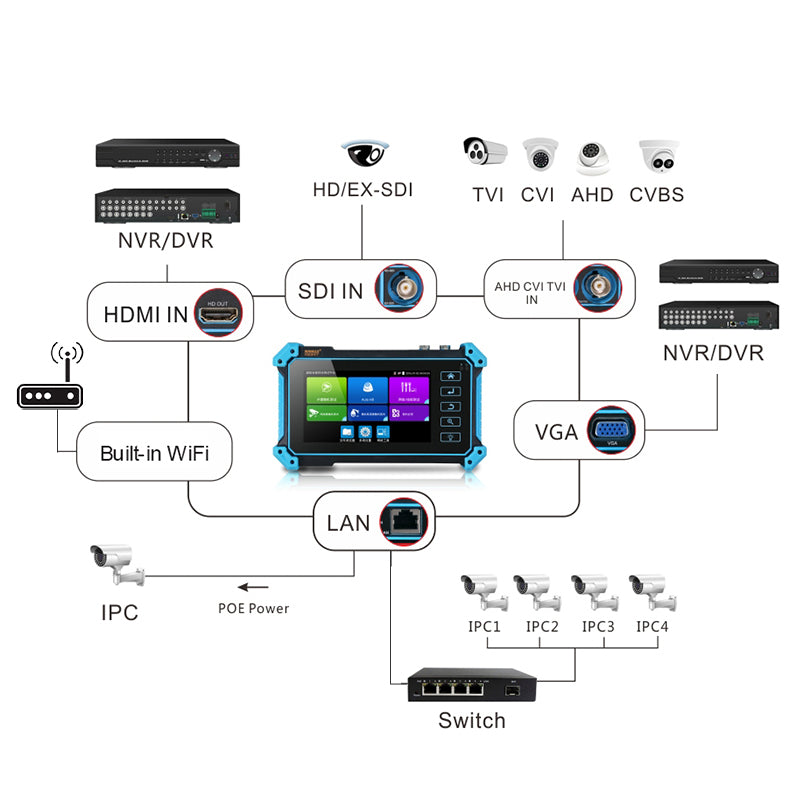

Características y beneficios:

  • Pantalla táctil IPS de 5.4 pulgadas, resolución de 1920x1080.
  • 8MP CVI/ TVI/ AHD Camera Test.
  • H.265/H.264, pantalla de video 4K a través de la corriente principal.
  • La entrada VGA admite 1920 x 1200p 60 fps.
  • La entrada HDMI admite 4K 30 fps.
  • DC12V 3A, salida de potencia POE de 48V.
  • Rápido Onvif, cree el informe de prueba Modifique la dirección IP, etc.
  • Auto HD, Auto Reconoce el tipo de cámara y resolución de la cámara coaxa HD.
  • Prueba de cable RJ45 TDR, prueba de calidad del cable.
  • La prueba de cable de UTP detecta los puntos de falla de extremo cercano, mediano y extremo lejano del cabezal de cristal del cable de red.
  • Certificación. Pase las pruebas de cumplimiento ROHS, FCC y CE, y Noyafa está certificada al estándar ISO 9001.
  • 100% asequible. Fabricado en China y más baratos que los productos de la competencia con una calidad similar.

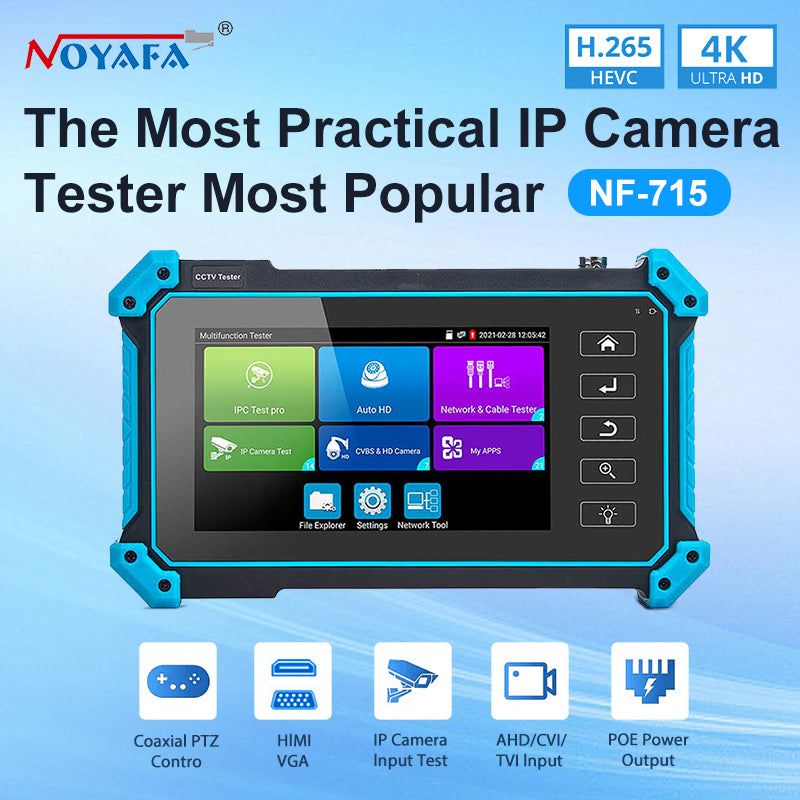

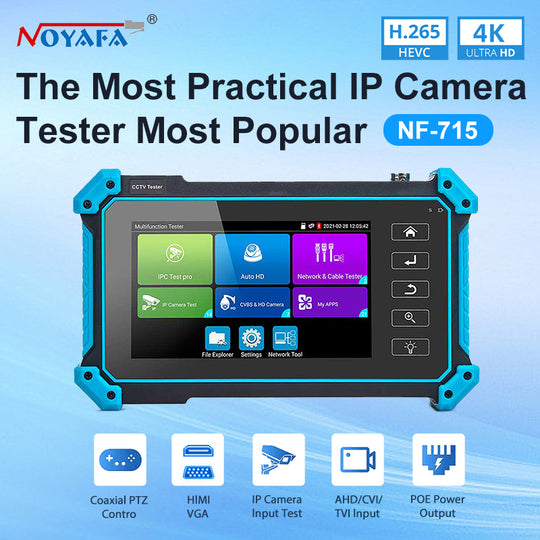

Model: NF-IPC715

Display Screen: 5.4 inch IPS touch screen, 1920x1080 resolution

Supported Video Modes:

CVBS:

  • 1 channel BNC input, NTSC/PAL (Auto adapt);
  • PTZ control, RS485 control, Baud 600-115200bps;
  • compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

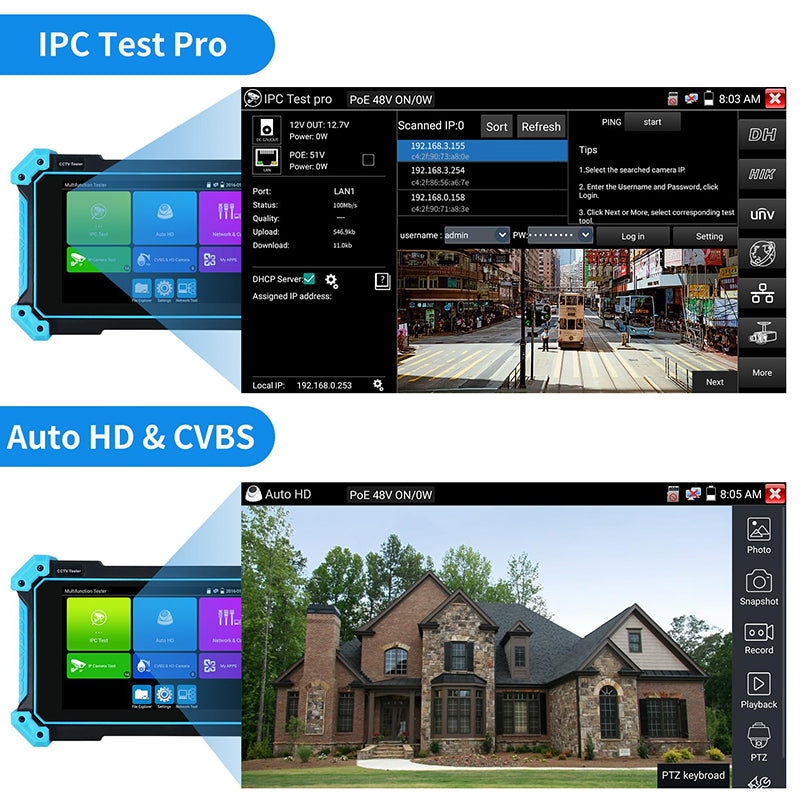

IP camera test: 4K/H.265/H.264

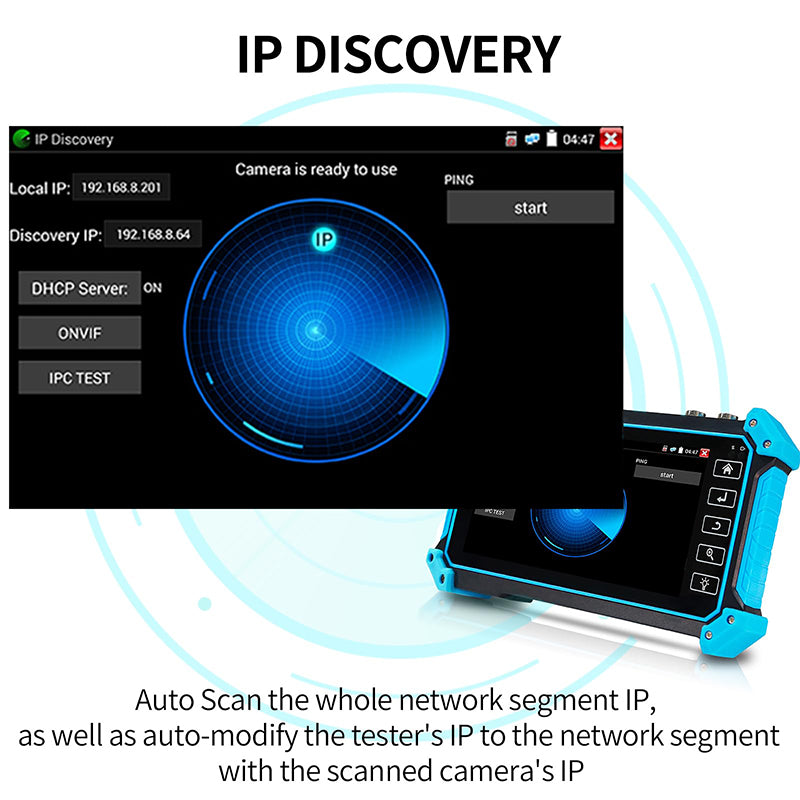

  • IP Discovery/ Quick ONVIF/ IPC test / RTSP play / Client APK
  • Rapid Video: Auto view the video, create testing report
  • HIKVISION: Batch activate HIKVISION cameras and modify IP address, modify password etc. Quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.
  • DAHUA: Batch activate DAHUA cameras and modify IP address, username and password. Self-defined modify channel name.

HD Coaxial test:

  • 8MP TVI / CVI camera: 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu
  • 8MP AHD test: 3840 x 2160P 15FPS, UTC control / call OSD menu
  • Auto HD app: auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu

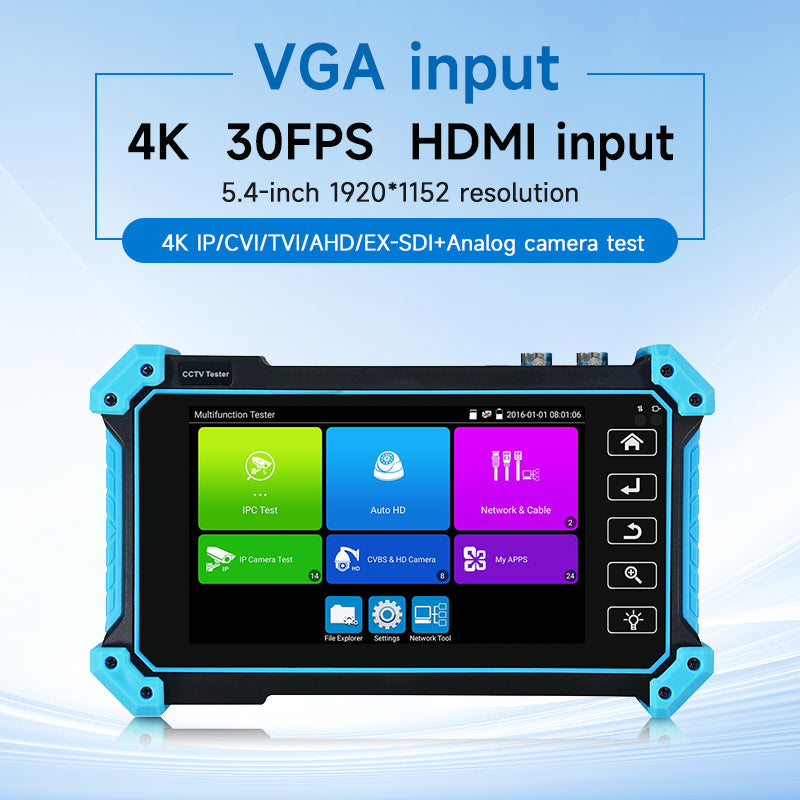

HDMI input: 1 channel HDMI input, support 4K 30FPS. The resolutions as follow:

  • 4K_3840 x 2160
  • 2K_2560 x 1440P
  • 1920×1080P / 1920×1080i
  • 720×480P / 720×576P
  • 1280×720
  • 1024×768P
  • 1280×1024P / 1280×900P
  • 440×900P, etc

VGA input: 1 channel VGA input, support 2048 x 1152 60FPS. The resolution as follow:

  • 2048 x 1152P/1920 x 1200P 60FPS
  • 1920×1080P 60FPS
  • 1792×1344P 60FPS
  • 1680x1050P 60FPS
  • 1600x1200P/900P 60FPS
  • 1440x900P 60FPS
  • 1360x768P 60FPS
  • 1280x1024/960/800/768/720P 60FPS
  • 1152x870P 60FPS
  • 1024x768P 60FPS
  • 800x600P 60FPS
  • 600x480P 60FPS

Zoom Image: 4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back.

Power output:

  • 12V/3A power: Output DC12V/3A power out, supply temporarily power for the camera
  • PoE power output: 48V PoE power output, max power 25.5W

Cable test: UTP & RJ45

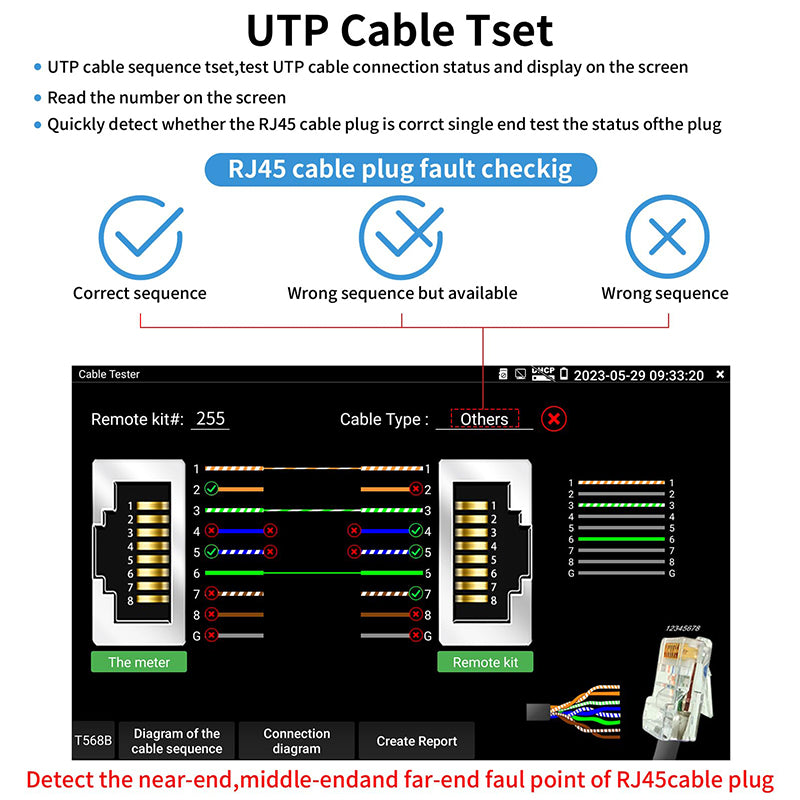

  • Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.

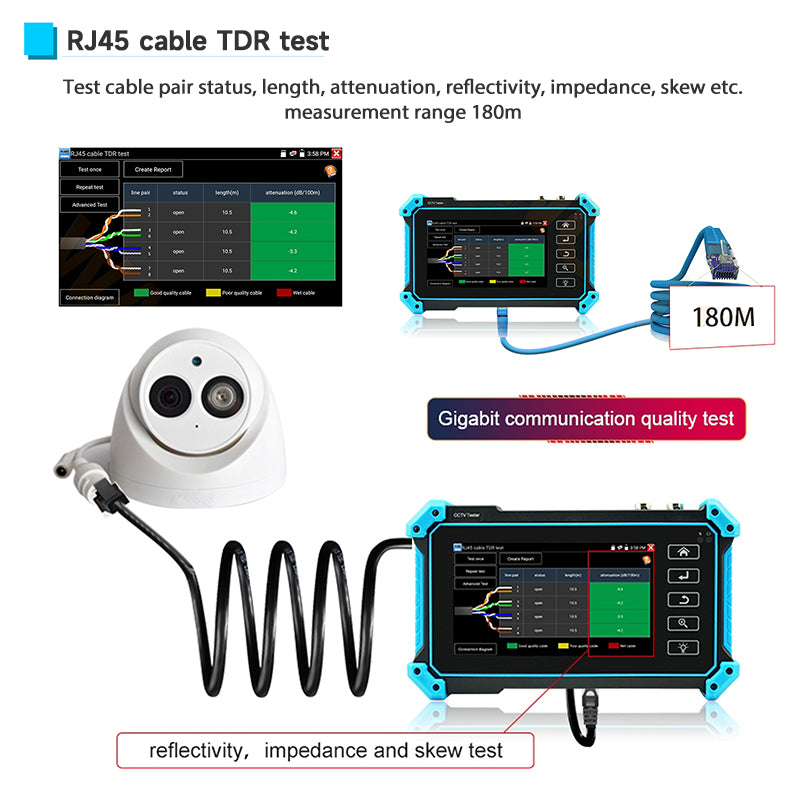

  • Test RJ45 cable pair status, length, attenuation, reflectivity, impedance, skew, can create test report. measurement range 180M.

Tester Play: Screen projection: Tester, mobile phone and PC display at the same time (For android version mobile phone)

Network test: Trace route, Link monitor, DHCP server, port flashing, Ping test

Wi-Fi: Built in WIFI, speeds 150M, display wireless camera image

Audio test: 1 channel audio signal input, test whether sound normal.

Power management: Display DC 12V input & output voltage and power in real time

Data monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal

External power supply: DC 12V 1A

Battery: Built-in Lithium ion battery

Working time: 5 hours when charging 3-4 hours

Languages: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc

Auto off: 1-30 (mins)

Working Temperature: -10℃---+50℃

Dimension & Weight: 183mm x 110mm x 36.5mm / 0.8kg
