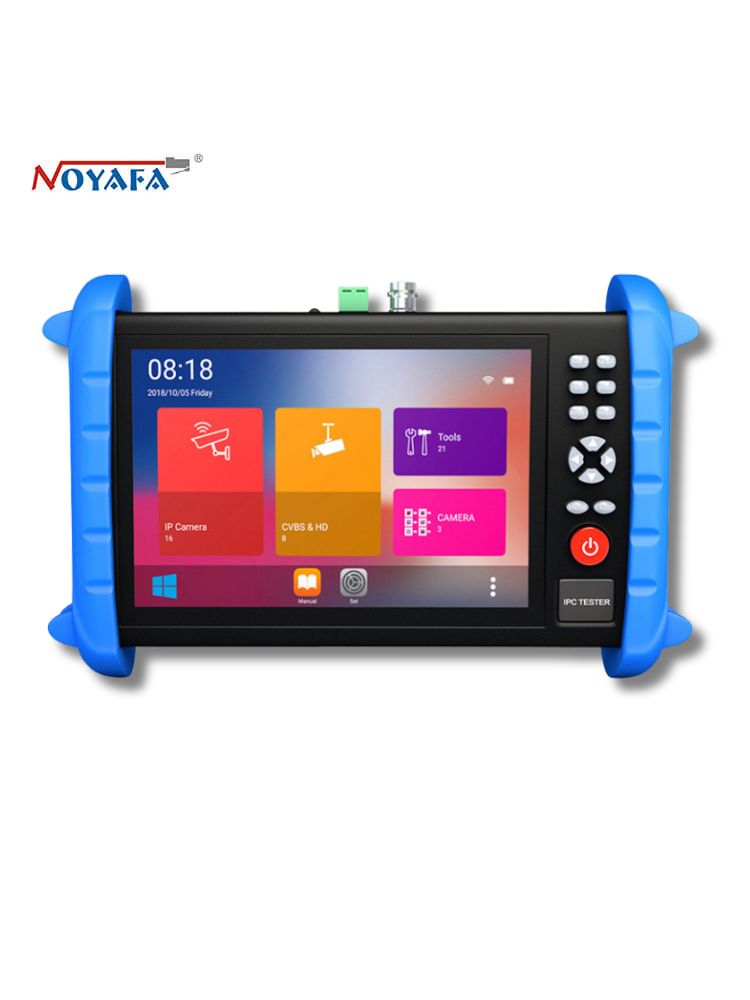

NF-IPC722 & IPC722ATCHS
NOYAFA Fast IPC Testers
Buy one and test various security cameras of all brands with all inputs.
HD Camera Tests
AHD, TVI, CVI, and SDI cameras (8MP) are all supported. Connect them and run a quick test.
HDMI Inputs
Connect cameras via an HDMI cable for 1080P and 4K (ATCHS version only) display.
CVBS Simulation
Live stream CCTV footage without delay. Snap, record, playback, and zoom as you like.
IPC Network Tests
Connect IPC cameras via Lan cables to check the information and images of recorder. Find bugs and issues at seconds.
ONVIF Compatibility
Compatible with ONVIF standard protocols. Able to connect most cameras like HIKVISION, Samsung, Panasonic, etc.
HIKVISION Tests
Supports HIKVISION cameras for multi-line tests. One-click to batch activate multiple cameras and views.
Cable Test
When the camera itself works fine but still no images, run a cable test with NF-IPC722.
Cable Length Test
Run a TDR length test with this IPC tester to see the properties of connected LAN cables.
Network Checkup
With easy connection, one click to scan IP addresses, test network speed (PING), and find the target ports on an Ethernet Switch.
Compare NF-IPC722 and NF-IPC722ATCHS
NF-IPC722
7'' 1920*1200 Retina Touch Screen
AHD 8MP ❌
CVI 8MP ❌
TVI 8MP ❌
EX-SDI 8MP ❌
Network Module:
Dual 1000M Port ✔️
10M/100M/1000M Network Port ✔️
150M WiFi Speed ✔️
2.4G ✔️
WiFi Hot Spot ✔️
WiFi Analyzer ✔️
IP Camera Test:
4K ✔️
H.265 Decode ✔️
IPC one click test ✔️
Smart IPC ✔️
32 Channel Preview ✔️
Activate Hikvision ✔️
ONVIF Testing Report ✔️
Cross-segment Testing ✔️
ONVIF Audio Test ✔️
Wide Dynamic Test ✔️
Change Channel Name ✔️
Face ID ✔️
Network Testing:
Channel Monitor ✔️
Advanced Channel Monitor ✔️
Network Tools ✔️
PING ✔️
IP Scan ✔️
IP Conflict Test ✔️
Mac Address Scan ✔️
Band Test ✔️
Port Flash ✔️
DHCP ✔️
Router Trace ✔️
Link Detection ✔️
PPPOE ✔️
Fast IP Detection ✔️
Focal Length Calculator ✔️
Network Calculator ✔️
Virtual IPC ✔️
Self Contract ✔️
Self Contract Audio Test ✔️
RTSP Player ✔️
Network Status ✔️
Focus Information and Lens Simulation:
Focus Inf ✔️
Video Transfer Quality Test ✔️
Picture Quality Test ✔️
Lens Simulation ✔️
Analog Camera Test:
PAL/NTSC Video Signal Test ✔️
Analog Video Test ✔️
Cloud Platform RS485 ✔️
Video Screenshot, Video Playback ✔️
Color Image Generator ✔️
BNC Loop Test ✔️
Network Testing:
Sequence ✔️
Wiremap ✔️
TDR Testing ✔️
Cable Quality Test ✔️
1000M Communication Quality Test ✔️
HDMI Testing:
HDMI Input 1080P ✔️
HDMI Input 4K30 ❌
HDMI Output 1080P/4K30/4K60 ✔️
Power Supply Testing:
PoE 48V 30W ✔️
PoE, PSE Voltage Measurement ✔️
DC 12V 3A Output ✔️
DC 12V Input Voltage and Watt Measurement ✔️
12V Load Testing ✔️
24V/2A Output ✔️
USB:
USB Read ✔️
USB 5V Output ✔️
Audio Testing:
Audio Input, Record ✔️
Audio Output ✔️
Other Functions:
Backlight ✔️
Touch Screen ✔️
Micro Phone ✔️
LED Torch ✔️
NF-IPC722ATCHS
7'' 1920*1200 Retina Touch Screen
AHD 8MP ✔️
CVI 8MP ✔️
TVI 8MP ✔️
EX-SDI 8MP ✔️
Network Module:
Dual 1000M Port ✔️
10M/100M/1000M Network Port ✔️
150M WiFi Speed ✔️
2.4G ✔️
WiFi Hot Spot ✔️
WiFi Analyzer ✔️
IP Camera Test:
4K ✔️
H.265 Decode ✔️
IPC one click test ✔️
Smart IPC ✔️
32 Channel Preview ✔️
Activate Hikvision ✔️
ONVIF Testing Report ✔️
Cross-segment Testing ✔️
ONVIF Audio Test ✔️
Wide Dynamic Test ✔️
Change Channel Name ✔️
Face ID ✔️
Network Testing:
Channel Monitor ✔️
Advanced Channel Monitor ✔️
Network Tools ✔️
PING ✔️
IP Scan ✔️
IP Conflict Test ✔️
Mac Address Scan ✔️
Band Test ✔️
Port Flash ✔️
DHCP ✔️
Router Trace ✔️
Link Detection ✔️
PPPOE ✔️
Fast IP Detection ✔️
Focal Length Calculator ✔️
Network Calculator ✔️
Virtual IPC ✔️
Self Contract ✔️
Self Contract Audio Test ✔️
RTSP Player ✔️
Network Status ✔️
Focus Information and Lens Simulation:
Focus Inf ✔️
Video Transfer Quality Test ✔️
Picture Quality Test ✔️
Lens Simulation ✔️
Analog Camera Test:
PAL/NTSC Video Signal Test ✔️
Analog Video Test ✔️
Cloud Platform RS485 ✔️
Video Screenshot, Video Playback ✔️
Color Image Generator ✔️
BNC Loop Test ✔️
Network Testing:
Sequence ✔️
Wiremap ✔️
TDR Testing ✔️
Cable Quality Test ✔️
1000M Communication Quality Test ✔️
HDMI Testing:
HDMI Input 1080P ✔️
HDMI Input 4K30 ✔️
HDMI Output 1080P/4K30/4K60 ✔️
Power Supply Testing:
PoE 48V 30W ✔️
PoE, PSE Voltage Measurement ✔️
DC 12V 3A Output ✔️
DC 12V Input Voltage and Watt Measurement ✔️
12V Load Testing ✔️
24V/2A Output ✔️
USB:
USB Read ✔️
USB 5V Output ✔️
Audio Testing:
Audio Input, Record ✔️
Audio Output ✔️
Other Functions:
Backlight ✔️
Touch Screen ✔️
Micro Phone ✔️
LED Torch ✔️
