A New Generation Of OTDR

Sixteen core functions
- Split-wave optical
- Optical Power meter
- Automatic OTDR
- Expert OTDR
- Event Map
- End State Check
- RJ45 Cable Length
- RJ45 Sequence
- RJ45 Hunting
- Multi-core Test
- Wastage Test
- Stabilized Light Source
- Red light Source
- Led Light
- End surface Detection
- Lithium Battery Charge

Automatic OTDR
Just set the measurement wavelength and test time, Other parameters are automatically selected by the instrumentto complete the test.

The test distance-80KM
Support 1310/1550nm dual-wavelength test
Expert OTDR
Expert mode: can manually adjust the test wavelength, range, pulse duration and other parameters

Event map intelligent link analysis
Automatic analysis of connectors, weldiing points, easy to read

End state check
Intelligent check the statussof fiber optic network terminal resources, can not enter the household only in the corridor fiber box Determine the terminal connection status of the ONT line at the client end

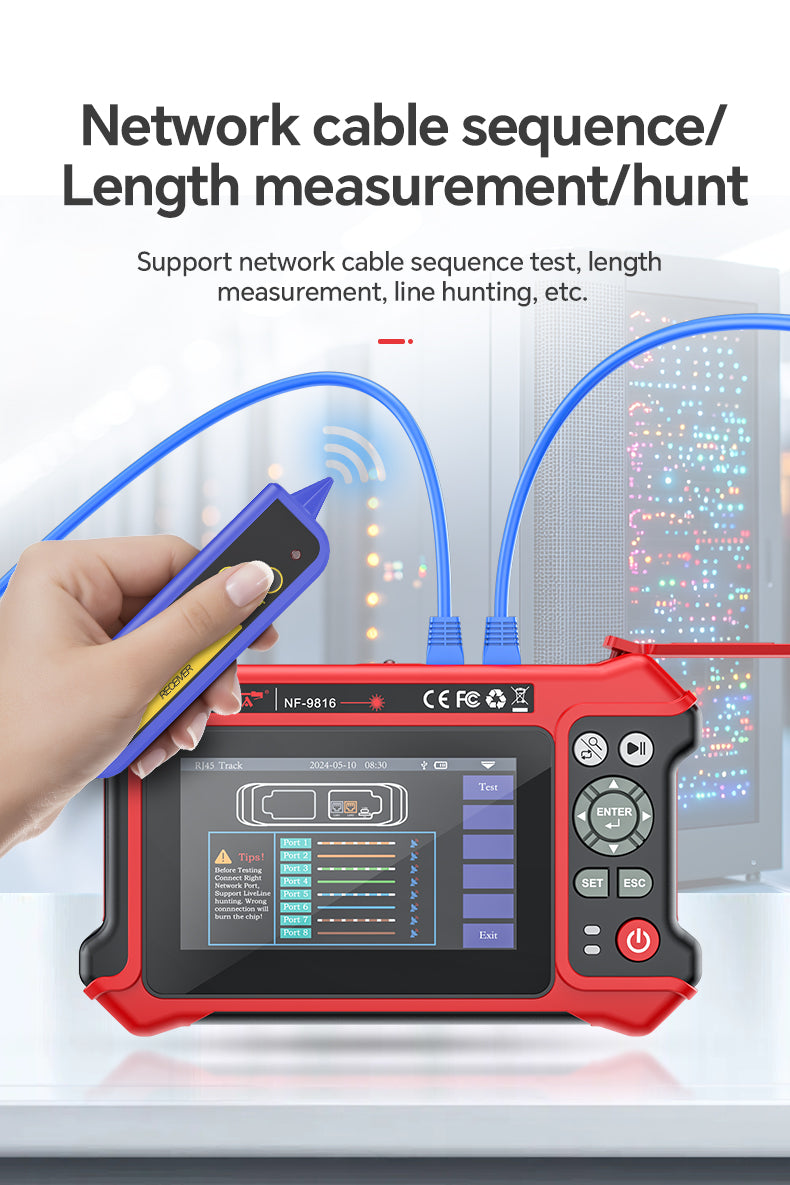

Network cable sequence/Length measurement/hunt
Support network cable seuencetest, length
measurement, line hunting, etc.

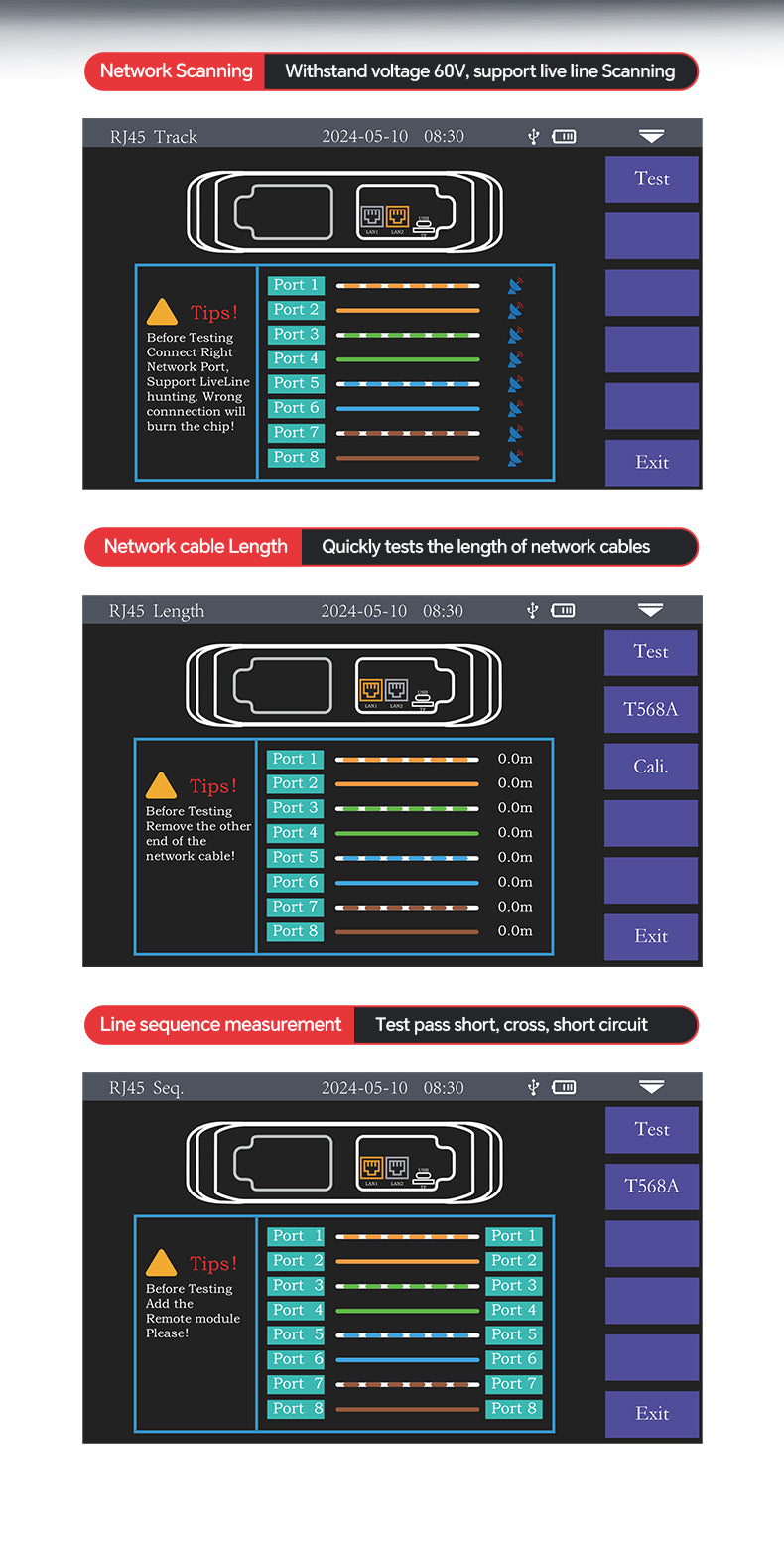

Network Scanning/Network cable Length/Line sequence measurement

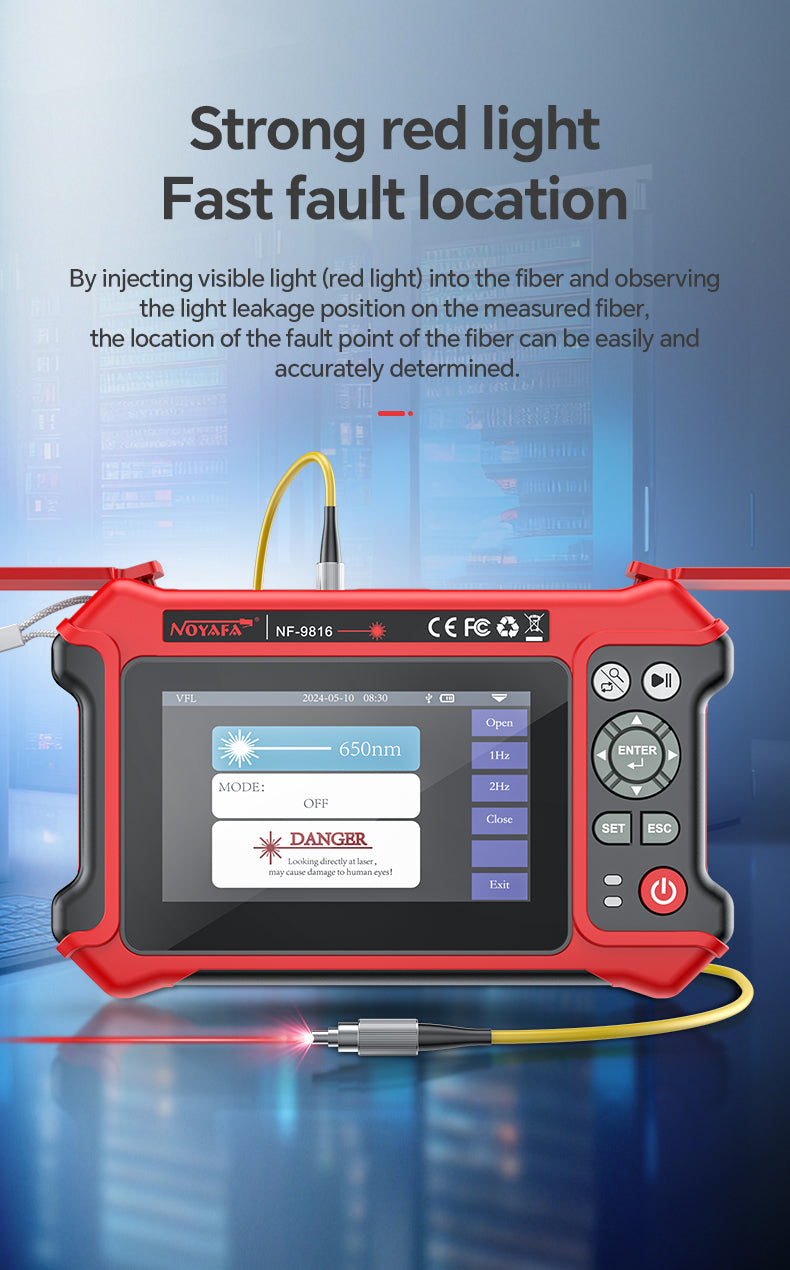

Strong red light Fast faultlocation
By injecting visible light (red light) into the fiber and observingthe light leakage position on the measured fiber, the location of the fault point of the fiber can be easily anaccurately determined

4.3 inch multi-touch capacitive screen
Touch screen, button dual support, support new gesture amplification function, screen capture

4700mAh lithium battery
Adopt mainstream TYPE-C charging interface, intelligent overcharge, overcurrent, overvoltage, short circuit protection.
